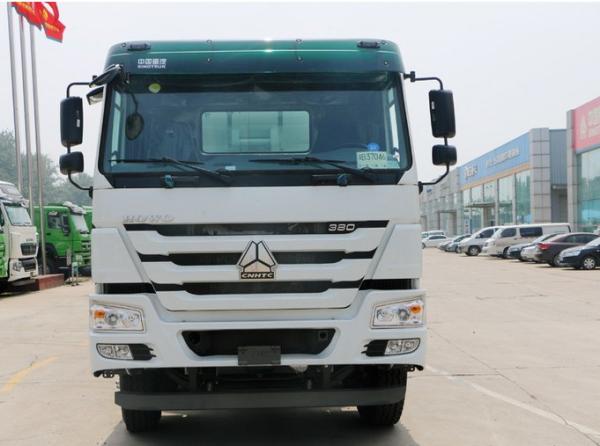

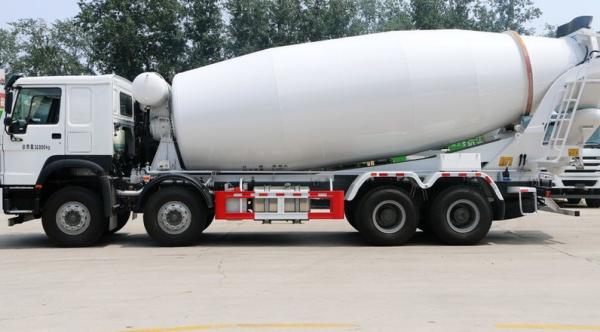

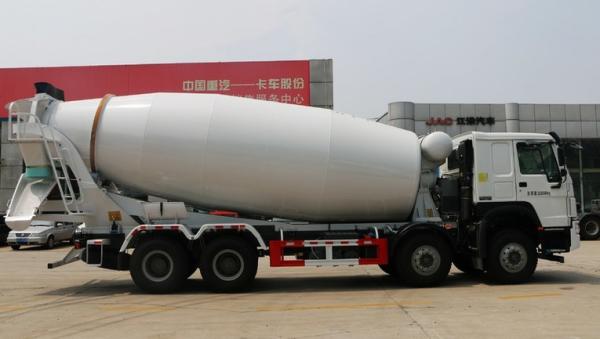

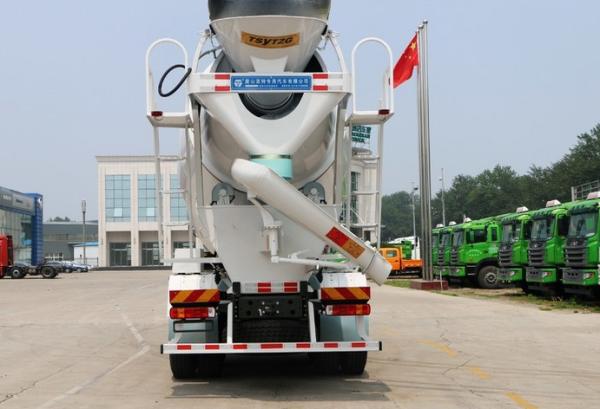

Self Loading Concrete Mixer Truck 4x2 6x4 8x4 With Eton Mixer Pump
Self Loading Concrete Mixer Truck 4x2 6x4 8x4 With Eton Mixer Pump
Self Loading Concrete Mixer Truck 4x2 6x4 8x4 With Eton Mixer Pump
Self Loading Concrete Mixer Truck 4x2 6x4 8x4 With Eton Mixer Pump
Self Loading Concrete Mixer Truck 4x2 6x4 8x4 With Eton Mixer Pump
Self Loading Concrete Mixer Truck 4x2 6x4 8x4 With Eton Mixer Pump
Self Loading Concrete Mixer Truck 4x2 6x4 8x4 With Eton Mixer Pump
Self Loading Concrete Mixer Truck 4x2 6x4 8x4 With Eton Mixer Pump
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ1167N4617N
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$45000-70000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Concrete Mixer Truck
Mixing Capacity :
8-18cbm
Drive Type :
6X4,8X4
Model :
ZZ1167N4617N
Engine :
290hp,336hp,371hp
Emission Standard :
EURO 2
Standard :
ISO/CCC/SGS
Mixer Pump Brand :
Eton
Steering :
Zf8098
Front Axle :
HF9
Rear Axles :
HC16
Description

Self loading concrete mixer truck 4x2 6x4 8x4 5 to 18 cubic meters for Africa

Specifications:

Vehicle Specifications Model concrete mixer truck for sale
Traction 4X2,6X4,8X4 8X4
Power 336HP
Weight Parameter Complete Vehicle Kerb Mass(kg) 15120
Maximum authorized total mass (kg) 31000

Dimension

Parameter

External

Dimensions(mm)

 Length (mm) 10745
Width(mm) 2496
Height(mm) 3190
wheelbase(mm) 1800+3800+1350
Drum Volumetric 14 cubic
Drum Thickness(mm) 6

Performance

Parameter

 Maximum Speed(km/h) 75
Turning diameter(m) 16

Recommended

Configuration

 Engine Engine Type WD615.69

Rated power

(kW)/Rev(r/min)

 247/2200
Transmission

Manual operation,

10 forward & 2reverse with

no synchronizer
Axle Front Axle Payload(kg)
Rear Axle Payload(kg)
Fuel Tank(L)
Track(mm)
Front overhang/rear overhang(mm)
Tire
Cabin

Standard cab with One sleeper,

with 4-point support fully floating suspension and shock absorbers, with air conditioner
OTHER ABS
COLOR

Notes for New Vehicle Run-in
1. The run-in distance is set to be 2500 km. Before running in, conduct a routine check of the concrete mixer truck to ensure that the vehicle is in normal working condition.
2. After starting the engine, do not accelerate immediately. Wait for 3 to 5 minutes. After the normal operating temperature is reached, you can increase the engine speed.
3. It is strictly prohibited to shut down the engine in the state of warming car. You have to wait for 3 to 5 minutes before shutdown.
4. During the run-in period, the vehicle should run on flat roads.
5. You should shift the gears timely. Smoothly engage the clutch. Avoid sudden acceleration and emergency braking.
6. Before going up the slope, shift into the low speed level. But note that do not let the engine work at very low speeds.
7. In the first 3000km driving distance of the new vehicle, the vehicle load should not exceed 70% of the rated load. The lubrication and maintenance cycle should be shortened in the break-in period.

Self Loading Concrete Mixer Truck 4x2 6x4 8x4 With Eton Mixer Pump
