Red / Black Self Loading Concrete Mixer Truck For Various Construction Sites
Red / Black Self Loading Concrete Mixer Truck For Various Construction Sites
Red / Black Self Loading Concrete Mixer Truck For Various Construction Sites
Red / Black Self Loading Concrete Mixer Truck For Various Construction Sites
Red / Black Self Loading Concrete Mixer Truck For Various Construction Sites
Red / Black Self Loading Concrete Mixer Truck For Various Construction Sites
Red / Black Self Loading Concrete Mixer Truck For Various Construction Sites
Red / Black Self Loading Concrete Mixer Truck For Various Construction Sites
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ1167N4617N
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$45000-70000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Concrete Mixer Truck
Mixing Capacity :
8-18cbm
Drive Type :
6X4,8X4
Model :
ZZ1167N4617N
Engine :
290hp,336hp,371hp
Emission Standard :
EURO 2
Standard :
ISO/CCC/SGS
Mixer Pump Brand :
Eton
Steering :
Zf8098
Front Axle :
HF9
Rear Axles :
HC16
Description

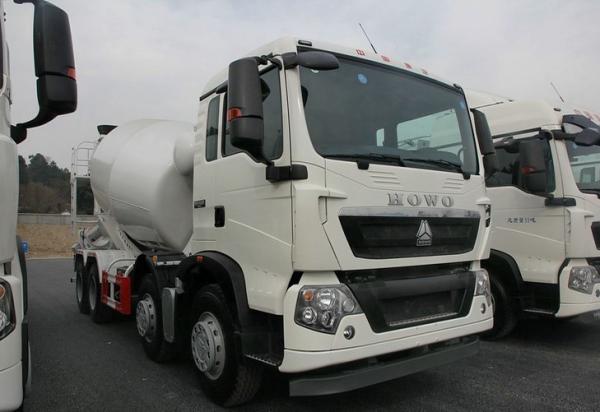

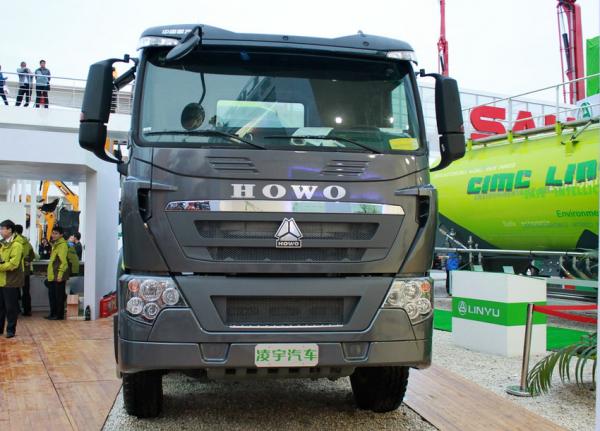

HOWO brand concrete mixer truck with 371Hp 16 cubic meters red or black color

Specifications:

Cabin

HOWO 76 Standard Cab

With two bunks, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions (L x W x H)mm 8825x2500x3850
Wheel base (mm) 3825+1350
Wheel track (front/rear) (mm) 2022/1830
Approach/Departure angle(°) 16/20
Weight in KGS Tare Weight 14410
Loading Capacity 10500
Front axles loading capacity HF9, 1x7000
Rear axles loading capacity HC16, 2x16000
Max. driving speed(km/h) 90
Engine Brand Sinotruk
Model WD615.69
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 336HP OR 371HP
Emission standard Euro 2,3,4 are optional
Gearbox HW19710, 10 forwards & 2 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L) 300
Tire 12.00R20 all radia tire
Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Description:

MIX BODY

Thickness

 End plate 6mm in high tensile strength steel
Mixer body 5mm in high tensile strength steel
Mixer body Volume M3 12 M3

Hydraulics

 Motor Imported brand TOP,PMP,ZF,Eaton and other brand are optional
Gear box Imported brand TOP,PMP,ZF,Eaton and other brand are optional
Pump Imported brand TOP,PMP,ZF,Eaton and other brand are optional

Applications:

Concrete mixing truck uses strong and firm tank, which has different volumes, and meets the customers requirements. Compact and rational structure,stable and reliable performance,gorgeous and elegant cab,safe and comfortable. It is used for various construction sites.

Competitive Advantage:

Our professional

China's large special vehicle manufacturers, complete production qualification, such as ISO, CCC, complete export qualifications such as, special car import and export license.

Our service

Instructions for use in English or in French.Some countries have engine after-sales service station. Have special requirements, can arrange technicians abroad to after-sales maintenance services.

Our cooperative partner

International shipping companies, they are specialized in vehicles booking, warehousing, transshipment, container devanning , charging for incidental expenses, customs declaration, commodity inspection, insurance

Our client

we have 8 years experience to serve over 60 countries for exporting different special vehicles.

Our special vehicles involved in widespread industry.Red / Black Self Loading Concrete Mixer Truck For Various Construction Sites
