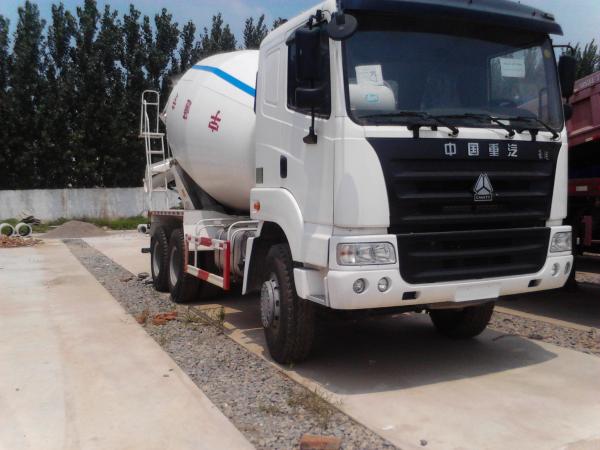

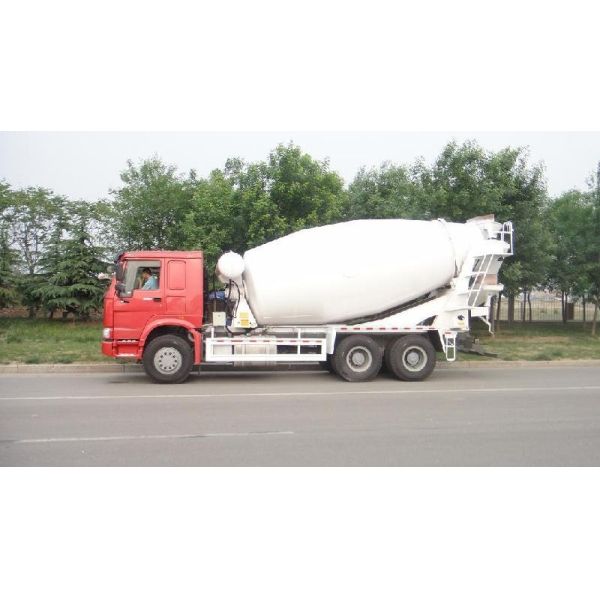

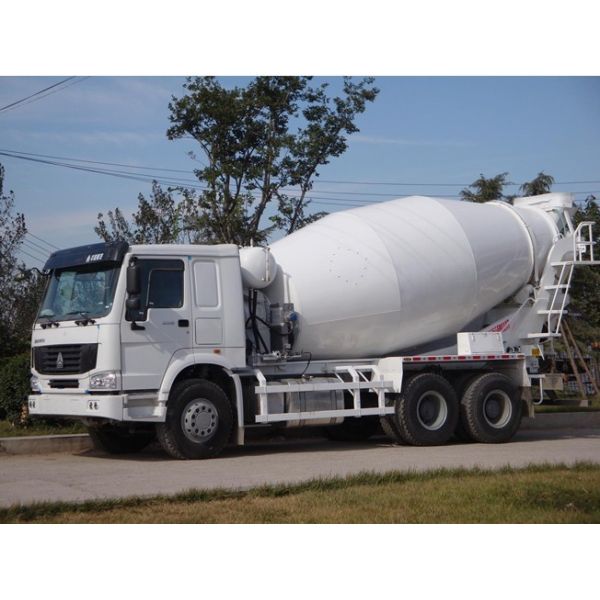

10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis
10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis
10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis
10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis
10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis
10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis
10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis
10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ1167N4617N
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$45000-70000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Concrete Mixer Truck
Mixing Capacity :
8-18cbm
Drive Type :
6X4,8X4
Model :
ZZ1167N4617N
Engine :
290hp,336hp,371hp
Emission Standard :
EURO 2
Standard :
ISO/CCC/SGS
Mixer Pump Brand :
Eton
Steering :
Zf8098
Front Axle :
HF9
Rear Axles :
HC16
Description

10cbm Customized cement mixer truck with Italy Eton or Bonfiglioli pump

Specifications:

Product Name8-10 cubic meters Sinotruk howo transit concrete mixer truck
Product ModelSinotruck
Main parametersOverall size(L*W*H)9350×2500×3990mm
Gross weight25000gs
Rated capacity12000kgs
Curb weight12870kgs
Approaching/Departure Angle16/10(°)
Front/Rear suspension1500/2875,1500/2675,1500/2550mm
Max.speed90km/h
ChassisChassis BrandSINOTRUCK
Chassis modelZZ1257N3847C
Drive type6X4
Fuel TypeDiesel
Tire Specification12.00-20,12.00R20
11.00-20,11.00R20
Tire No.10
Wheelbase3625+1350,3600+1400mm
3825+1350,3800+1400mm
Alex No.3
Leaf Spring No.9/12,10/12,4/12
GearboxHW10 speed
Front trend2022,2041mm
Rear trend1830/1830mm
EngineManufacturerChina Heavy Duty Automobile
ModelWD615.95E
Horse Power336HP
Displacement/Power9726ml/247kw
Emission standardEuro 3/Euro 4


Description:

SystemItemReference Data
Parameters of mixing drumagitation volume (m3)8-10
charging rate (m3/min)≥2.8
discharging rate (m3/min)≥1.2
residual rate (%)≤0.5
rotating speed of mixing drum (rpm)0~17
Driving systemspeed reducermade in Italy by PMP
hydraulic pumpmade in Italy by PMP
hydraulic motormade in Italy by PMP
radiatormade in China
Water supplywater tank volume (L)400
type of water supplyair pressure water supply
Control systemcontrol modeconnecting rod control


Applications:

Concrete mixing truck uses strong and firm tank, which has different volumes, and meets the customers requirements. Compact and rational structure,stable and reliable performance,gorgeous and elegant cab,safe and comfortable. It is used for various construction sites.

Competitive Advantage:

1. The mixing drum body and mixing blades are made of special materials. They have good wear resistance and long service life.
2. The closed loop hydraulic system is compact in structure, making the concretemixer truck work more efficiently.
3. Both the feed hopper and discharge chute are equipped with wear-resistant lining plates, which enable the whole vehicle to have longer service life and more stable performance.10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis10cbm Customized Cement Mixer Truck , Advance Cement Truck With 6x4 320hp Chassis
