White Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO Standard
White Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO Standard
White Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO Standard
White Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO Standard
White Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO Standard
White Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO Standard
White Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO Standard
White Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO Standard
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ1167N4617N
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$45000-70000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Concrete Mixer Truck
Mixing Capacity :
8-18cbm
Drive Type :
6X4,8X4
Model :
ZZ1167N4617N
Engine :
290hp,336hp,371hp
Emission Standard :
EURO 2
Standard :
ISO/CCC/SGS
Mixer Pump Brand :
Eton
Steering :
Zf8098
Front Axle :
HF9
Rear Axles :
HC16
Description

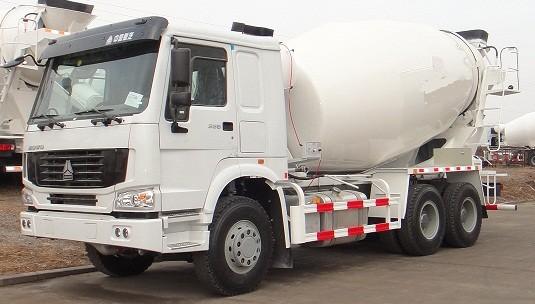

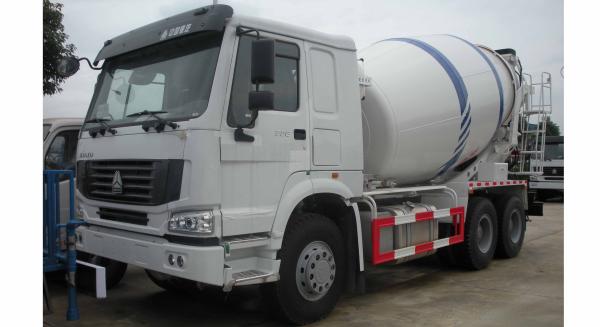

Sinotruk Howo Concrete Mixer Truck 10 CBM with HW76 Cabin white color

Specifications:

Sinotruk Howo Mixer Truck 10 CBM
Chassis Model ZZ1257N3847C ( Left Hand Driving Type)
Production Year 2015, new truck.
Cabin HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.47, Euro 2, 350 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L
Transmission

HW19710, 10F & 2R, with PTO

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, modol ZF8098, hydraulic steering with power assitance
Front Axle

HF9, 1x9000 KGS

Steering with doubleT-cross section beam
Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:5.73
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake
Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres 12.00R20, radial tyres with one spare tyre
Fuel Tank 300L

Description:

Italy PMP hydraulic pump and motor with good quality for longer service life.

Full power Power take off to provide enough power for the operation.

450L water tank, air pressure water supply system.

The drum is made of Q345, anti-wear, anti-corrosion and high intensity.

Operation at rear of the truck to control the co lock-wise and anti-clockwise rotation of the drum and also control the discharge of concrete.

Applications:

concrete mixing truck uses strong and firm tank, which has different volumes, and meets the customers requirements. Compact and rational structure,stable and reliable performance,gorgeous and elegant cab,safe and comfortable. It is used for various construction sites.

Competitive Advantage:

1. Have focused on special automobiles' design and production for nearly 10 years.

2. Have obtained the ISO9001 international quality management system certification.

3. Have obtained foreign trade qualification granted by Chinese government.

4. Manufacturer direct sale , quality guaranteed, low price.

5. Except standard products we can also produce products base on customers' requirementWhite Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO StandardWhite Color Concrete Mixer Truck 10 CBM With HW76 Cabin ISO Standard
