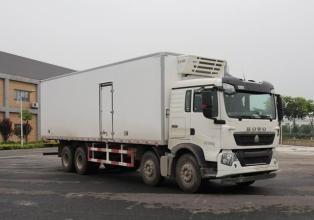

CCC / BV Sinotruk Refrigerator Box Truck 8x4 With HOWO 70 Cabin
CCC / BV Sinotruk Refrigerator Box Truck 8x4 With HOWO 70 Cabin
CCC / BV Sinotruk Refrigerator Box Truck 8x4 With HOWO 70 Cabin
CCC / BV Sinotruk Refrigerator Box Truck 8x4 With HOWO 70 Cabin
CCC / BV Sinotruk Refrigerator Box Truck 8x4 With HOWO 70 Cabin
CCC / BV Sinotruk Refrigerator Box Truck 8x4 With HOWO 70 Cabin
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ1317N4667C1
Certification :
ISO/CCC/BV
Place of Origin :
China
MOQ :
1set
Price :
USD20000-50000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500sets/month
Delivery Time :
20days after receiving deposite
Packaging Details :
packaging suitable for sea transport
Product Name :
Refrigerator Truck
Application :
Transport Frozen or Fresh Goods
Drive :
8x4
Refrigerating capacity :
11-20ton
Min. temperature(°C) :
-20
Box material :
FRP+PU Foam+FRP
Color :
Optional
Description

CCC / BV Sinotruk Refrigerator freezer FRP insulation panels box truck 8x4 with HOWO 70 cabin

Specifications:

CARGO TRUCK- ZZ1257N4347
HOWO /8x4 series /4300+1350 wheelbase/“VOLVO” Technology Cabin

8x4,CARGO TRUCK, HOWO76 cabin(Single sleeping bed,A/C),

with CNHTC WD615.69 engine, 336HP,

with HW15710 transmission,ZF8098 steering, with 12.00R20 tyres, etc.

Details for the specification List
SPECIFICATION
Carriage dimension: (mm) 7100*2300*800
Dimension(Lx W xH) 9800×2496×3048
Approaching angle/Departure angle(°) 19/23
Overhang(front/rear) (mm) 1500/1870
Wheel base (mm) 4300+1350
Max speed(km/h) 102
Curb weight(kg) 11000
Engine (Steyr technology, made in China) Model

WD615.69,watercooled,four strokes,

6 cylinders in line with water cooling,turbocharged

and inter cooling, directly injection
Fuel type Diesel

Power, max

(kw/rpm)

 247/2200
Emission EURO II
Fuel tanker capacity (L) 300
Transmission Model HW15710,10 forward&2 reverse
Brake system

Service

brake

 Dual circuit compressed air brake

Parking

brake

spring energy, compressed air operating

on rear wheels
Steering system Model ZF8098
Front axle HF9
Rear axle HC16
Tyre 12.00R20
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V

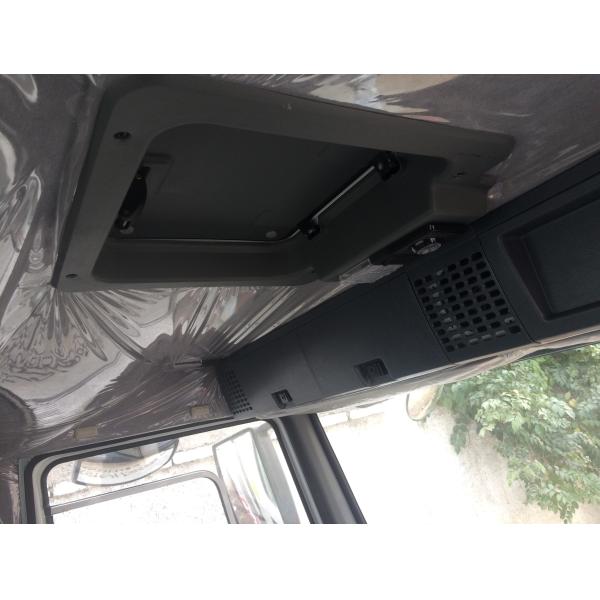

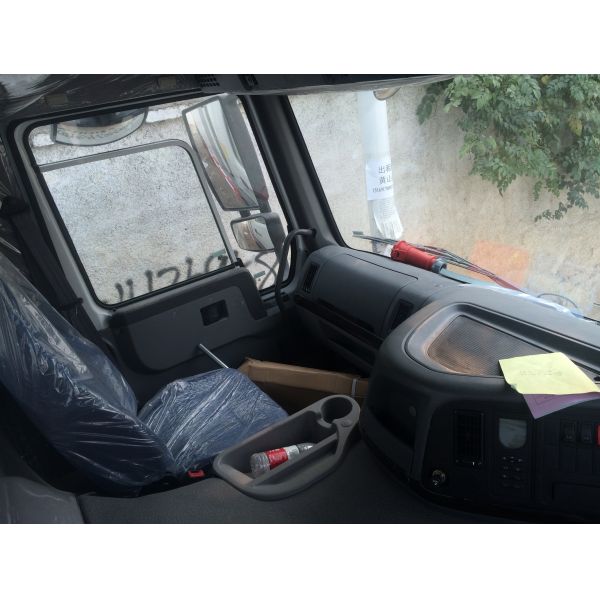

Cab

HOWO70 cab(no bed,A/C),all-steel forward control,

55º hydraulically tillable to the front,2- arm windscreen

wiper system with three speeds, laminated windscreen

with casted-in radio aerial, hydraulically damped

adjustable driver’s seat and rigid adjustable co-driver’s seat,

with heating and ventilating system, outer sun visor, adjustable

roof flap, with stereo radio/cassette recorder, safety belts and

adjustable steering wheel, air horn, with 4point support fully

floating suspension and shock absorbers.

CCC / BV Sinotruk Refrigerator Box Truck 8x4 With HOWO 70 CabinCCC / BV Sinotruk Refrigerator Box Truck 8x4 With HOWO 70 Cabin

Description:

With high quality, wonderful package, perfect service and fame, our company has exported our products

to Nigeria, Angola, Ghana, Libya, Cameroon, the Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria,

Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in

south America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines,Malaysia, Indonesia,

Pakistan, Brunei. in Bangladesh and Asia and other countries and regions.etc. Also Hope to establish

good and long-term business relationship with you.

Applications:

Refrigerator truck is closed van truck, which is used to transport frozen or fresh goods, it fitted with the

refrigeration unit device and polyurethane thermal insulation van and it is refrigeration special use

transport truck, usually use for transporting frozen foods (freezer truck), dairy (milk truck), vegetables

and fruits (fresh goods transport vehicle), vaccine and drug (vaccine vehicles) etc…

Competitive Advantage:

1. Get the new products, and meet your processing requirements.

2. Our quality products help you to win money and earn much time.

3. We always do our best to save cost for you and ensure the quality goods.

4. Our rich-experience technical teams are standing by all the time.

5. You can know the advance overseas technology from our products. Which bring you more

competitive advantages.
