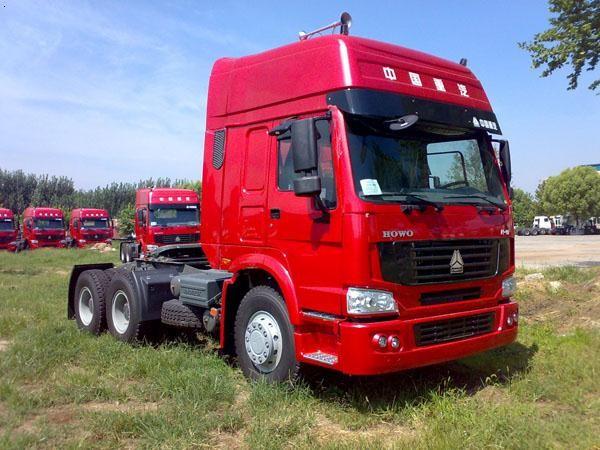

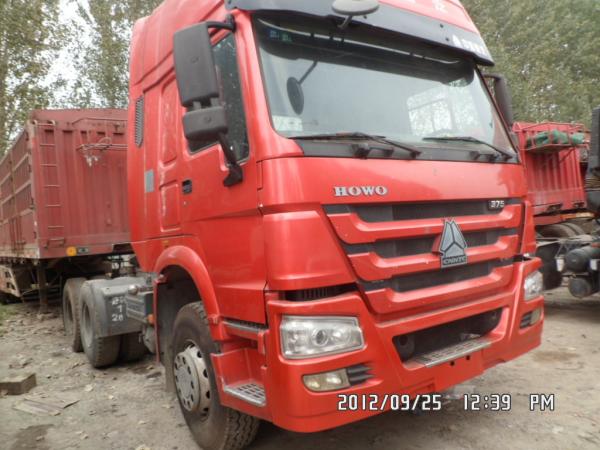

CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS
CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS
CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS
CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS
CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS
CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS
CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS
CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ4257V3247N1B
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$30000-50000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Tractor Truck
Traction Capacity :
70-100TONS
Drive Type :
LHD 6X4
Model :
ZZ4257S3241W
Engine :
371HP
Emission Standard :
EURO 2
Standard :
ISO/CCC/SGS
Fifth Wheel :
#50, #90
Description

CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS

Specifications:

Truck Model ZZ4257V3247
Type of Vehicle TRACTOR TRUCK
Truck Brand SINOTRUK -- HOWO
Driving Position Left hand Driving
Fuel tanker capacity(L) 400
The Total Mass 50,000 kg
Dead Weight 8800 kg
Max speed(km/h) 102
Color Optional
Chassis & Add Components
Frame Details High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members.
Dimension(L * W * H) (unloaded) (mm) 6800x2496x3800
Approaching angle / Departure angle (°) 16/70
Overhang (front / rear) (mm) 1500/725
Wheel base (mm) 3225+1350
Engine
Model D12.42
Power 420hp/309kw.2000r/min
Emission EURO II
Cylinder bore*stroke (mm) 126*155
Displacement(L) 11.596
Type water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Kind of Fuel Diesel
Fuel Consumption(L/100km) 30L/100km
Clutch & Gear Box System
Clutch SINOTRUKΦ430mm diaphragm spring clutch
Gear Box FULLER 12 speeds
Axles
Front Axle Model HF7 axle. Capacity: 7000kg
Rear Axle ST axle. Capacity: 2X 16000kg
Ratio of rear axle 4.42
Electrical System
Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Brake System
Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system
Model ZF8098
Type hydraulic steering with power assistance
Wheels & Tyres
Type 12R22.5
Material Tubeless tires
Quantity 10+1 spare
Kin pin 50mm
Cabin
Type HW79 Cabin
double sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers


Description:
This model is new design cabin, the designer from Italy, and Powerful engine, reinforced axle, excellent performance, and the many color choice, and the best cost and performance, deeply favored by oversea customers.

Applications:
Towing of vehicle with a traction device, designed for towing all kinds of semi-trailers

Competitive Advantage
The quality warranty period of our products is within 12 months after delivery of products.
1. For normal damaged parts claims, service team will reply the distributor within three working days.
2. For serious vehicle problems, it will take us 5 working days to reply the distributor, since our service
team has to report it to our factory for final judge.
3. Low oil consumption. Sinotruk adopt the engine that combine the MAN and steyr technolgoy, it has the perfect oil performance.
4. Sufficient stocked spare parts are available for you when you need to repair your tractor trucks.
5. with the same conditions, our tractor truck can be used for a longer time as we used many world famous brand spare parts and assembly.CHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABSCHINA Howo 375 HP / 420 HP heavy prime mover / tractor head with air deflector and ABS
