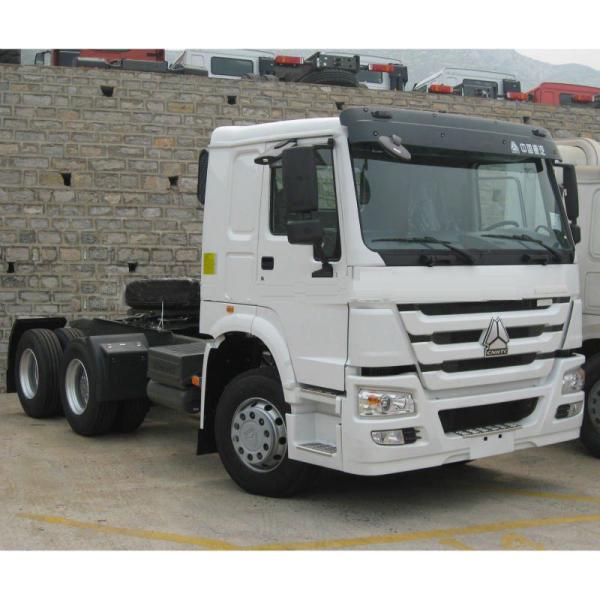

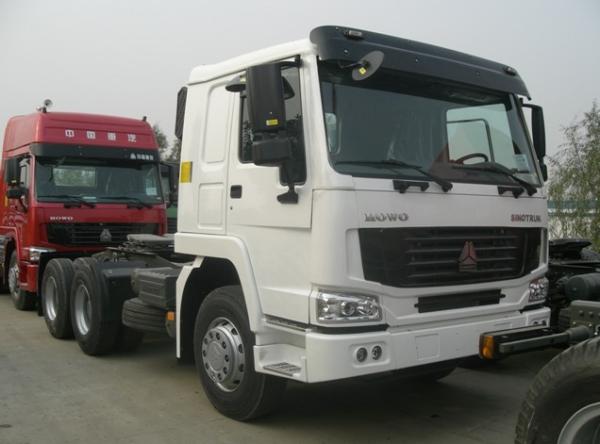

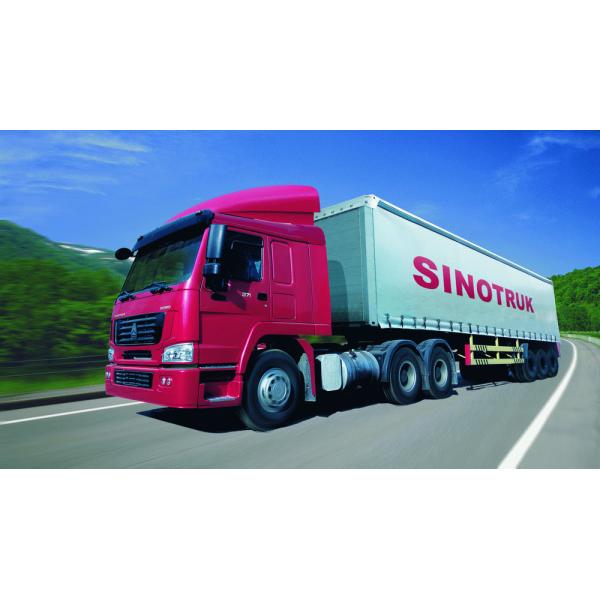

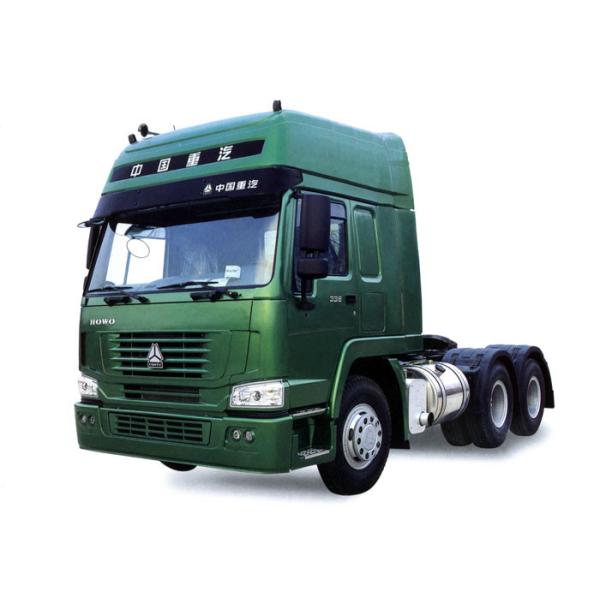

6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake
6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake
6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake
6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake
6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake
6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake
6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake
6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake
Specifications
Brand Name :
Tractor Truck
Model Number :
ZZ4257V3247N1B
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
$30000-50000
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Nude
Product Name :
Tractor Truck
Traction Capacity :
70-100TONS
Drive Type :
LHD 6X4
Model :
ZZ4187V3517N1B
Engine :
420HP
Emission Standard :
EURO 3
Standard :
ISO/CCC/SGS
Fifth Wheel :
#50, #90
Steering :
Zf8118
Front Axle :
HF9
Rear Axles :
HC16
Description

HOWO A7 truck 6x4 Tractor Head Trucks for pulling bulk cement tank trailer

Specifications:

Vehicle Specifications Model ZZ4257V3247N1B
Traction 4X2,6X4,8X4 6X4
Power 420HP
Weight Parameter Complete Vehicle Kerb Mass(kg) 8800
Maximum authorized total mass (kg) 25000
Dimension Parameter External Dimensions(mm) Length (mm) 6985
Width(mm) 2496
Height(mm) 3850
wheelbase(mm) 3200+1400
Performance Parameter Maximum Speed(km/h) 101
Maximum Gradeability(%) 30
Turning diameter(m) 20
Recommended Configuration Engine Engine Type D12.42

Rated power(kW)

/Rev(r/min)

 309/2000
Torque(N*m)/Rev(r/min) 1900/1100-1400
Transmission HW19712
Clutch(mm) 430
Axle Front Axle HF9
Rear Axle ST16
Fuel Tank(L) 400
Track(mm) 2022+1830
Front overhang/rear overhang(mm) 1540/845
Type 12.00R20
Cabin Sleeper two sleeper
OTHER ABS optional
COLOR optional


Description:

1. 260-460 hp sinotruk high performance engine and specially tailored 10, 12, 16 gear transmission;

2. Rigid heavy duty front and rear axle work compatibly with imported brake system;

3. Comfortable and spacious cabine design provides all-round visibility and relaxed driving experience.

Applications:

Towing of vehicle with a traction device, designed for towing all kinds of semi-trailers

Competitive Advantage

1. we can do the designing according to the customers'requirement
2. we can offer you the best quality & reasionalble price
3. we can offer your a perfect after-sale service
4. we are having strong professinal design team
5. Fast delivery. small order is welcomed.6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake6x4 Tractor Head Trucks With Dual Circuit Compressed Air Brake
