Specifications
Brand Name :
Tractor Truck
Model Number :
ZZ4257V3247N1B
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Tractor Truck
Traction Capacity :
70-100TONS
Drive Type :
LHD 6X4
Model :
ZZ4257V3247N1B
Engine :
D12.42, 420HP
Emission Standard :
EURO 2
Standard :
ISO/CCC/SGS
Fifth Wheel :
#50, #90
Description

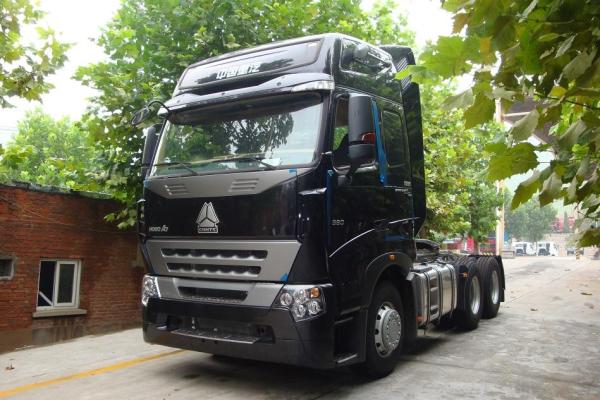

Tractor Truck SINOTRUK HOWO A7 LHD 6X4 Euro2 420HP ZZ4257V3247N1B

Description:

Tractor Truck SINOTRUK HOWO A7 LHD 6X4 Euro2 420HP ZZ4257V3247N1B

This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 266-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.

Highway transport is divided into two version, to match the different condition of transportation needs:
The first version of the highway transport is equipped with aluminum shell transmission MCY13 (Q) single reduction drive axle and other lightweight configuration, mainly used for standard load level (It means that the total weight of tractor train within 55 tons, the total weight of bike within 41 tons); When the first version of the tractor adopts the plate spring suspension, disc brake MCY13 (Q) single stage drive axle can be opted.


The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle HC16 or AC16 which can loaded16 ton, single-stage reduction drive axle ST16 or HW16, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.

Specification:

Tractor Truck SINOTRUK HOWO A7 LHD 6X4 Euro2 420HP ZZ4257V3247N1B
Model ZZ4257V3247N1B
Drive Type 6×4
Engine

D12.42 , 420HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,

4 stroke electronic fuel injection diesel engine

Displacement : 11.596L

Cabin A7-P(with Single sleeper, air-conditioner and new-style seat)
Transmission HW19712(12 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8098 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire

12R22.5 tubeless tyre

11.00R20,12.00R20,12.00R24 Radial tire

Wheel base 3200+1350(mm)
Overall dimension 6985×2496×3560(mm)
Fifth Wheel #50, #90
The curb weight 8800(Kg)
Gross weight 25000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.

Applications:

It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and

Mining area .

Competitive Advantage:

1)it has higher safety and running efficiency.

2)excellent appearance of cabin, safety, reliable

3)low fuel consumption

4)strong enough engine

5)with all kinds of truck model, which can fulfill your requirement

6)the key parts adopt the world's top technology products

7)based on strong technical support and top level technology make the trucks with high quality and

more reliable

8)competitive price, cost-effective

9)quick and efficient spare parts supply bring you more convenient

10)fast delivery time, we can arrange production according to your needs exactly and Quickly

11)professional import and export dealing procedure, make customs clearance more high efficiency
