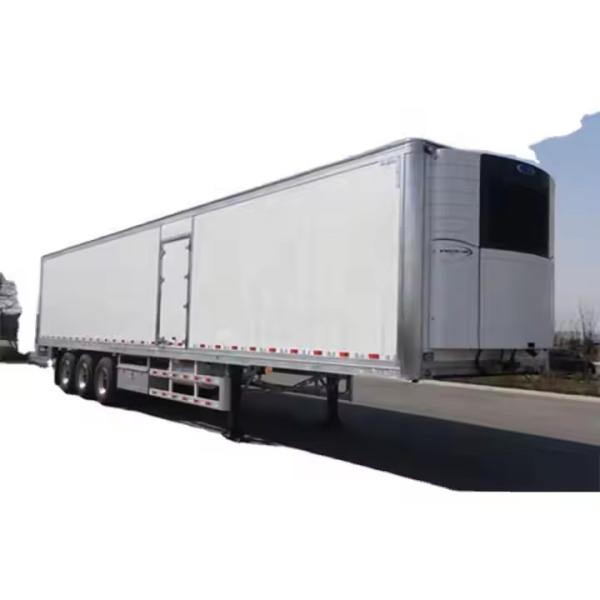

CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables
Specifications
Brand Name :
CIMC
Place of Origin :
Shangdong,China
MOQ :
1
Price :
38599.23-57285.49USD/Unit
Payment Terms :
T/T
Supply Ability :
800Unit/Month
Delivery Time :
28days
Packaging Details :
depends on product type and customer request
Product name :
Refrigerated trailer
Size :
12710*2690*3550mm
Use :
Truck Trailer
Material :
Steel
Suspension :
Mechanical Suspension/Air suspension
Ladder :
Mechanical ladder
Axle :
3axles,13Ton
Color :
Custom's Requirement
King pin :
JOST 2" or 3.5" traction pin
Condition :
New
Description

CIMC 40 - 60Tons Semi-Trailer Refrigerator Truck / Refrigerated Container Trailer for Storage Vegetables

1.CARRIER BRANO REFRIGERATION UNIT

INCLUDING AIR COMPRESSOR,CONDENSER,EVAPORATOR AND EXPANSION VALVE,ETC,TO FORM A CIRCULATION SYSTEM,CONSTANTLY TRANSFER THE HEAT IN THE CAR TO THE SURROUNDING ATMOSPHERE,TEMPERATURE CONTROL FROM 10C TO-50C

2.SAF BRANO AXLE WITH AIR SUSPENSION

BPW/FUWA/FUWA AXLE ETC.OPTIONAL.AIR SUSPENSION IS OPTIONAL,BETTER SHOCK ABSORPTION.THE FIRST AXLE WITH LIFTING FUNCTION.

3.HEAT INSULATION BOOY

BOX SIZE 13.75M*2.5M*4M,EFFECTIVE VOLUME 90 CUBIC METERS.USUALLY MADE OF POLYURETHANE MATERIAL,GLASS

STEEL, COLOR STEEL PLATE OF STAINLESS STEEL ETC,TO ENSURE THAT THE TEMPERATURE OF THE GOODS IS NOT AFFECTED BY THE EXTERNAL ENVIRONMENT

4.CHASSIC

CHASSIS IS MADE OF REINFORCED STEEL,NO LONGITUDINAL BEAM DESIGN,WELDED STRUCTURE,WHICH GREATLY REDUCES NETWEIGHT.

Overall Dimension(L*W*H)
13600*2600*4000
Tare Weight
8500KG
Loading Weight
40-60 Ton
Main beam
Material: Q345B fabricated carbon steel; Type: straight type; Height: 480mm; Upper plate: 14mm； Bottom plate: 16mm Middle plate:
8mm Process: welded by automatic submerged-acr
Cross beam
10# C type; Q235
Twist lock
12 units
King pin
2” or 3.5”
Axle
13T/16T/20T BPW or FUWA or EAST
Tyre
12R22.5, 11.00R20, 12.00R20, 315/80R22.5
Rim
22.5*9.0-14, 12 units or 6 units
Landing gear
28ton ,double speeds
Suspension
Mechanical Spring or Air Suspension System
Leaf spring
90(W)mm*13(Thick)mm*10 Layer
Brake system
Type: Dual line braking system
Brake air chamber: 6 in total, T30/30*4 + T30*2
Air tank: 40L*2 unit ABS: none
Electric system
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc.
