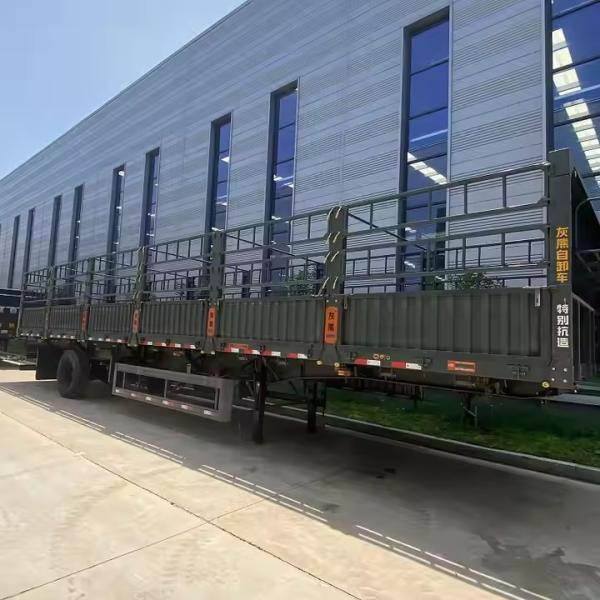

CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
Specifications
Brand Name :
CIMC
Place of Origin :
Shandong, China
MOQ :
1
Price :
$13,000.00/units 1-4 units
Payment Terms :
T/T
Supply Ability :
800Units/Month
Delivery Time :
28days
Packaging Details :
as customer request
Product name :
Fence Semi Trailer
Material :
Steel
Size :
10m11m12m13m
Max Payload :
40-80T
brand :
CIMC
Function :
Transport Heavy Duty Equipment
Suspension :
Mechanical Suspension or Air Suspension
Axle :
2/3/4 pcs, 13T16T,BPW/FUWA /CIMC
Color :
Customers'requirements
Condition :
Brand-new Cargo Truck Trailer
Description

CIMC Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer


A typical fence semi trailer is designed with vertical slats or panels along the sides to secure and protect the cargo during transportation. These trailers are commonly used for transporting goods that require ventilation, such as livestock, or materials that need to be secured but not fully enclosed. The fence structure can be adjusted to accommodate different types of cargo, ensuring that the load is stable and safe. The trailer often features gates or doors for easy loading and unloading of goods. Depending on the design, some fence semi trailers may have removable or foldable sections to allow for flexibility in handling various cargo sizes. The trailer's layout allows for efficient use of space, and depending on its size, it can carry a substantial amount of cargo. The maximum capacity depends on the trailer's dimensions and the weight of the goods being transported. Controllers for any automated gates or loading mechanisms are typically located on the side of the trailer for easy access during loading and unloading.

Trailer Model
fence semi trailer
Specifications
Overall Dimension
(Lx W x H)(mm)
12500*2500*1600+600mm
Tare Weight(KG)
6500
Loading Weight( KG)
60000
Wheel Base(mm)
7450mm+1310mm+1310mm
Semi Trailer Chassis
Platform plate
3mm Diamond plate
The material of Main beam
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Side beam
Q235 16# channel steel
Axle Brand
13TON Axle FUWA/BPW Brand
Axle Number
Three
Suspension system
Mechanical Suspension
Leaf spring
90(W)mm*13(Thick)mm*10 Layer
Landing Gear
28ton Chinese brand,double speeds,Jost
Tire Type and quantity
12R22.5 12units,Triangle
Wheel Rim
9.00-22.5
Traction Pin
2” or 3.5”,Jost
Spare Wheel Bracket
2 pieces
Tool Box
1 Standard
Electrical & Paint
Brake system
Dual Line braking system
Brake air chamber
Six double chamber
Electrical system
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Painting
Color as customer’s requirement
Packing&Shipping
Packing
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint
Delivery way
Transfer to Qingdao/Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.
