RMK heavy duty transfer carriage are movable platforms used for the horizontal movement of materials, assemblies and other items. It is powered by storage battery, which is installed on the transfer carts. The rail transfer trolleys are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. Usually the heavy duty transfer carriage are used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others.These heavy duty transfer carriage are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Uses of heavy duty transfer carriage:For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

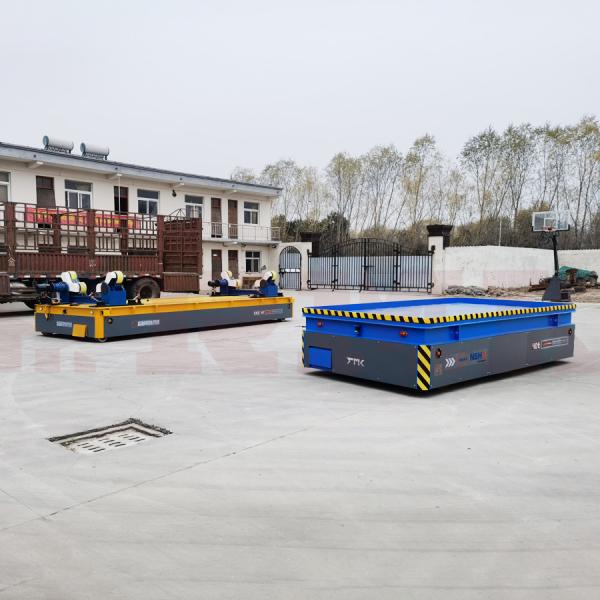

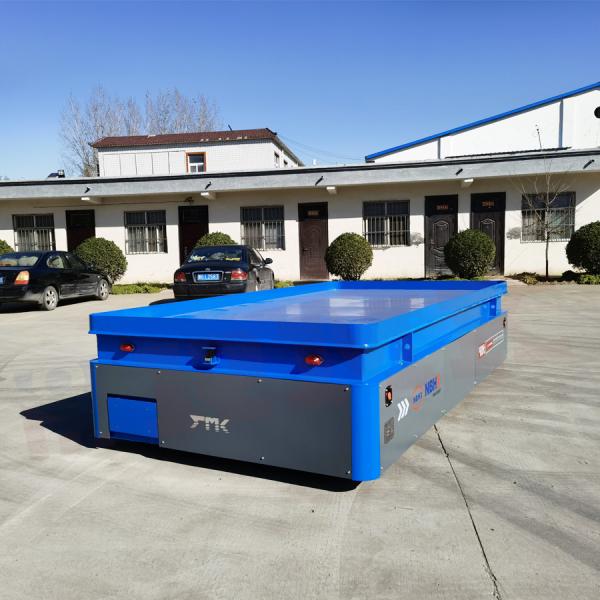

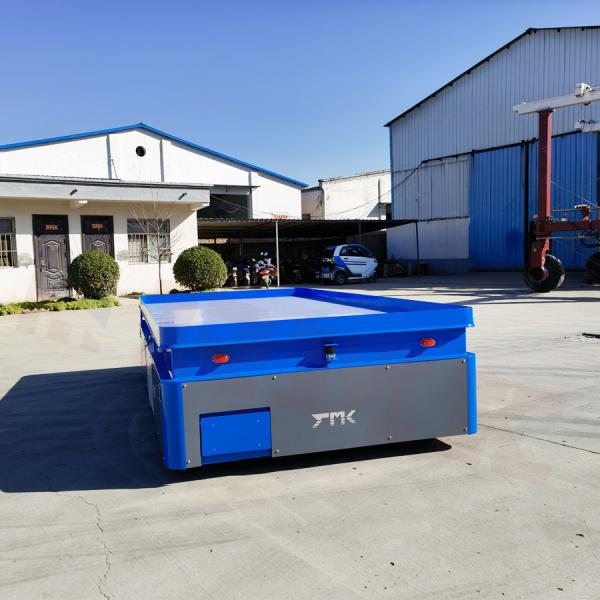

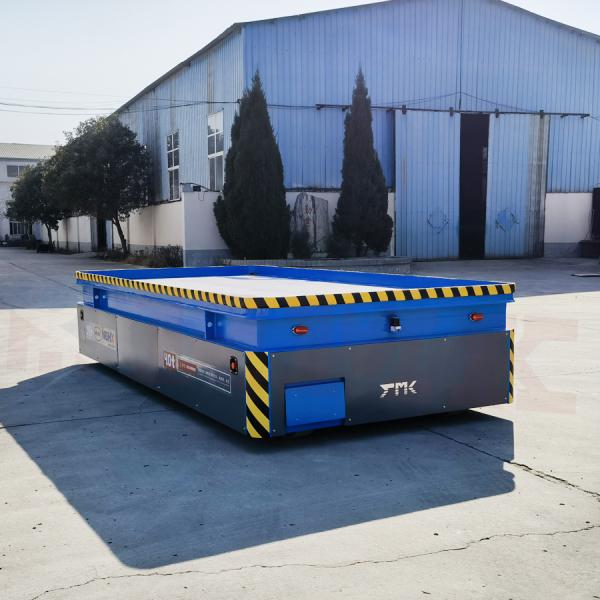

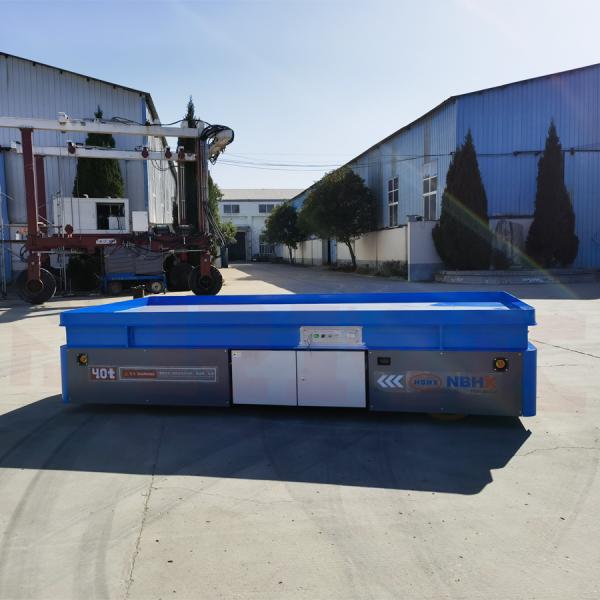

40 Ton Steel Coils Motorized Transfer Trolley Heavy Duty Motorized Cart
Application:
The transfer machine is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
Our transfer cart model main contains KPD, KPJ,and KPX, If you are unsure as to what type of transfer cart will best serve your needs. Spending a few minutes now discussing the needs of your application could save you dollars in the future.
Quick Details:
Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.
It's necessary equipment for lifting goods,raising labor efficiency,improving working conditions.
1.Are you a trading company or factory?
--- We are factory occupying with excellent and professional technical team.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
Technical parameters for electric transfer carts | |||||||||
1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
3 | structure of frame | steel plates welded, beam structure | |||||||
4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
5 | ground requirement | cement floor | steel plate ground | ||||||
6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
8 | ground clearance(mm) | 50 | 75 | ||||||
9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
12 | turning type | turning while driving with no stop | |||||||
13 | control method for turning | control button | |||||||
14 | turning structure | mechanical | |||||||
15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
22 | battery maintenance | free of maintenance | |||||||
23 | charger's installation | installed on cart | split-type | ||||||
24 | charger function | automatic charging | |||||||
25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
26 | warning equipment | sound and light | |||||||
27 | other functions | turning light, night light and power display |
