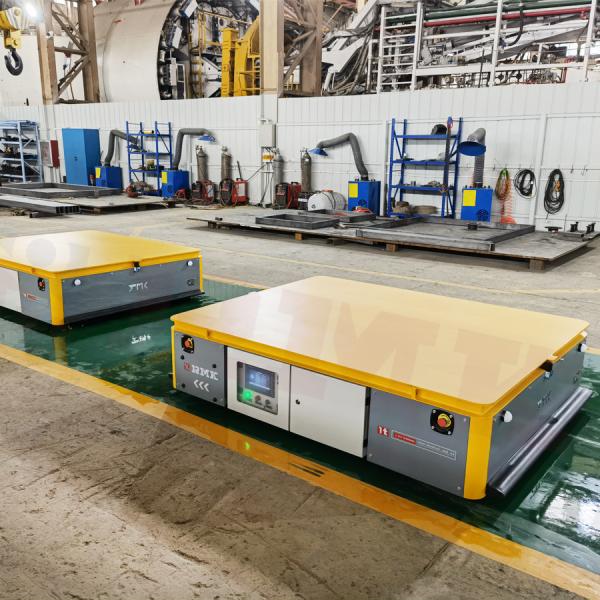

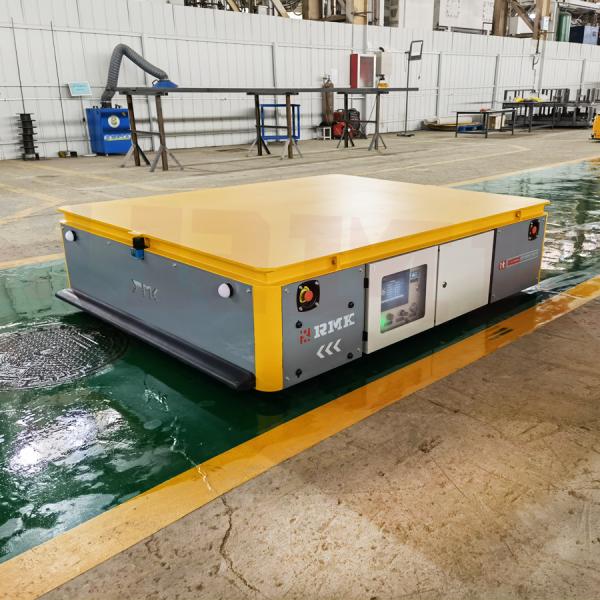

Heavy-duty Electric battery power transport cart remote control cart features battery power supply, DC motor drive, large bearing capacity, and stable start. it does not rely on the guide rail, so can achieve two-way travel. The hydraulic steering mechanism guarantees a smaller turning radius, so it can achieve a 360-degree turn in a limited space. The vehicle comes standard with two batteries, which can be used in rotation, ensuring continuous operation of the vehicle. Special battery-replacement trolley works within five minutes.
Remarkable this battery power transport cart is a kind of trackless trolley. It's trackless and consists of a steel structure-bearing frame. When the current gets in the electric control system, the machine is powered to make the trolley stop, start, move forward, and move backward. It can also turn around for 360 degrees without moving forward or backward. As per the clients' request, we can provide all kinds of trackless transfer trolleys for you according to the working environment and floor condition.
Contact Us For A Free Consultation Based On Your Requirements. Remarkable Sells Its Heavy-Duty Electric Battery Power Transport Cart Worldwide!
Technical parameters for trackless electric transfer trolleys | ||||||||
Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
Impacted rated loa(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
Structure of frame | steel plates welded, beam structure | |||||||
Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
Ground requirement | cement floor | steel plate ground | ||||||
Table size(mm) | 3000× 2000 | 3600× 2000 | 4000× 2200 | 4500× 2200 | 5000× 2200 | 5500× 2300 | 6000× 2300 | 10000× 3000 |
Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
Ground clearance(mm) | 50 | 75 | ||||||
Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
Turning type | turning while driving with no stop | |||||||
Control method for turning | control button | |||||||
Turning structure | mechanical | |||||||
Wheel material | ZG55+hydropur ture | |||||||
Running speed(m/min) | 0-15 | 0-12 | ||||||
Brake principle | electric magnetic brake | |||||||
Operation method | with wire or no wire | |||||||
Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
Battery maintenance | free of maintenance | |||||||
Charger's installation | installed on cart | split-type |
Customization of Battery Powered transport cart
Appearance
Table size, Table material, Table type, Rated load, Color, Wheelbase, Detachable structure, etc.
Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system, etc.
Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.
Special Design
Round corner, Hold pendant box, Lifting hole, etc.
Package & Transportation
The body of the cart is packed with a tarp, the small parts will be packed with wooden cases. According to the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container, and so on.
Application
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press, and frame rigidity to make it available for linkage of several trolleys. The trackless transfer cart for Material Handling motorized transport carts has been highly approved by our customers.
The transport platform cart for material handling can be widely applied in many fields, such as steel industries (coils, ladles, steel pipes, steel plates, steel bars, and other steel parts transport), shipyard, stamping die workshops, precast concrete factory, quarry plant, transformer plants, turbine plants, paper making plants, coking plants, power station, textile plants, cement factory, machinery factories, construction sites, production line, workshop, warehouse and other fields for materials, workpieces, machines transport from one bay to another.
