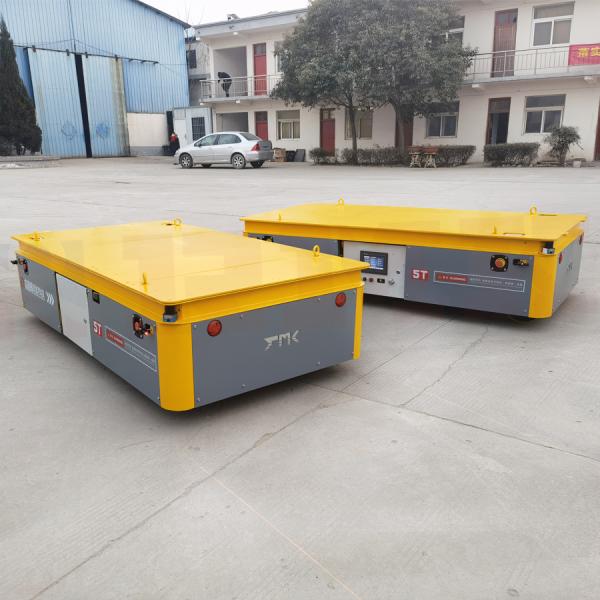

Electric Conveyor-Motorized Material Transfer Trolley
The capacity of an electric conveyor ranges from 1 ton to 1000 tons, and it can work alone or in combination (multiple electric synchronous vehicles).
Remarkable battery-powered industrial electric trucks have different steering systems (single axle, double axle, 360°, 90°, crab, etc.).
They are controlled by radio (via wireless or cable as required by the customer) or activated from the cabin and have built-in AC electric traction motors.
We equip them with different types of wheels according to the soil conditions of the customer's factory. Remarkable will recommend and recommend the type of wheels (polyurethane, solid, super elastic, or pneumatic) to be installed on the trolley.
As an option, we can include different types of lifting (bearing the load through rods with cylinders, cylinders at each corner of the structure itself) to bear the load stored on the steel structure or pallet.
Contact Us For A Free Consultation Based On Your Requirements. Remarkable Sells Its Electric Conveyor-Motorized Material Transfer Trolley Worldwide!
Technical parameters for trackless electric transfer trolleys | ||||||||
Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
Impacted rated loa(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
Structure of frame | steel plates welded, beam structure | |||||||
Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
Ground requirement | cement floor | steel plate ground | ||||||
Table size(mm) | 3000× 2000 | 3600× 2000 | 4000× 2200 | 4500× 2200 | 5000× 2200 | 5500× 2300 | 6000× 2300 | 10000× 3000 |
Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
Ground clearance(mm) | 50 | 75 | ||||||
Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
Turning type | turning while driving with no stop | |||||||
Control method for turning | control button | |||||||
Turning structure | mechanical | |||||||
Wheel material | ZG55+hydropur ture | |||||||
Running speed(m/min) | 0-15 | 0-12 | ||||||
Brake principle | electric magnetic brake | |||||||
Operation method | with wire or no wire | |||||||
Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
Battery maintenance | free of maintenance | |||||||
Charger's installation | installed on cart | split-type |
Advantages Show—Heavy-duty motorized material transfer trolley
1.high level automation(self propelled/steerable)
2. The largest capacity can reach 500t
3. Safe parts are installed in the transfer car(warning light, e-stop, buffer...)
4. Robust sturdy car frame
5. AC/DC electric engine, diesel engine, or pneumatic engine
6. Excellent gear reducer and motor with high quality, assembled together perfectly
7. Remote control&hand pendant control makes the operation more convenient.
8. The speed can be adjusted.
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the use lifetime
11. Low noise and do not pollute the environment
12. 360-degree free turning
