Specifications
Brand Name :
Remarkable
Model Number :
KPX-20T
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability :
300 sets per year
Delivery Time :
45 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
After-sales service provided :
commissioning and training
Color :
Customized
Application :
Industry metallurgy, Material handling/steel coil/industrial
Capacity :
20 Tons
Load capacity :
customized
Running speed :
0-20m/min
Power supply mode :
rail powered
Usage :
material transferring
Type :
Electric
Safety features :
Warning alarm and End stop, end stop, Warning alarm
Control model :
wireless remote control
Safety facilities :
warning light, E-stop
Description

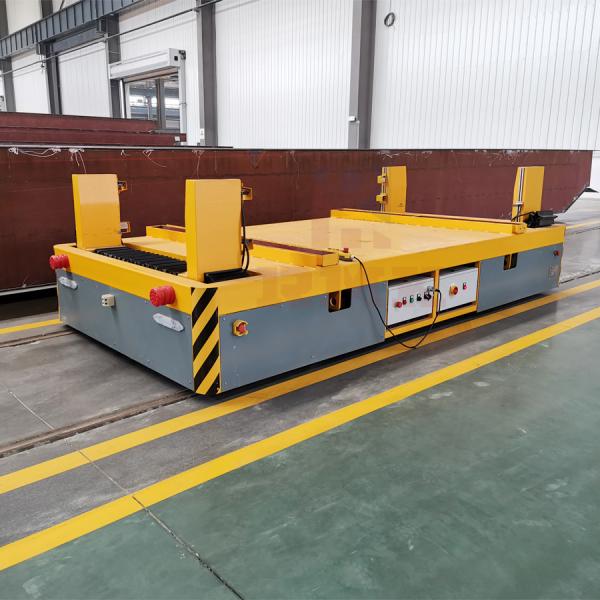

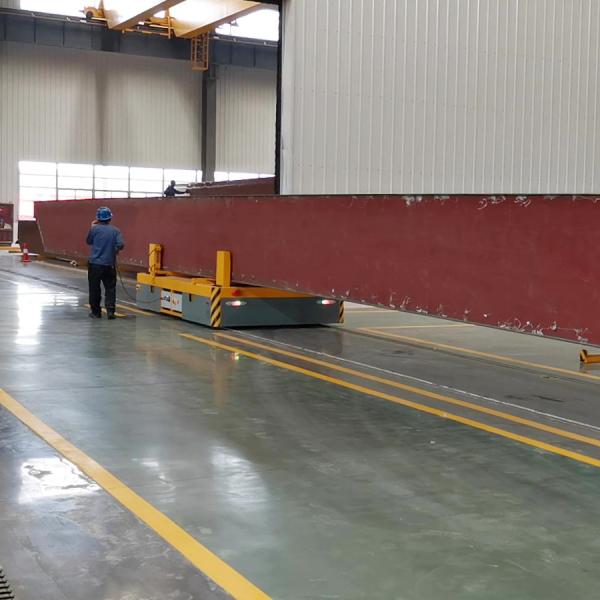

Yellow Color CE certificate 25 Tons Battery Powered Steel Plant Transfer Car

Features Of 25 Tons Battery Powered Steel Plant Transfer Car

1. Battery Powered, It Can Be Used When There Is No Power Source.

2. The Structure Is Box Beam Structure.

3. Safety Equipment: E-Stop Button, Sound And Light Alarm, Limit Switch, Dead Man Control, Etc.

4. Unlimited Travelling Distance.

Application Of The Battery Powered Transfer Trolley

• The Battery Powered Transfer Car Is Widely Used To Transfer Heavy Cargoes Of Steel Tube And Pipes, Coiled Sheets And Plates, Steel Bars, Machine Manufacturing Pieces, Metal Forging And Casting Pipeces, Steel Coils, Building Structural Materials, Galvanized Coils And Aluminum Coils, Other Metal And Steel Heavy Cargoes.

• According To Customer's Special Requirements, Specific Load Ability Is Designed. And Also, Different Table Shape Is Designed According To Different Cargo Shapes, For Example Coil Car, Ladle Car, Scissor Lifting Table Cargo, Etc.

Yellow Color Battery Powered Steel Plant Transfer Car CE Certificated 25 Tons

Yellow Color Battery Powered Steel Plant Transfer Car CE Certificated 25 Tons

Technical parameters for Low-voltage track powered electric transfer carts KPD series
Model KPD-6t KPD-10t KPD-16t KPD-25t KPD-40t KPD-63t KPD-100t KPD-160t KPD-200t
Rated load (t) 6 10 16 25 40 63 100 160 200
Countertop size
(mm)		 Length 3600 3600 4000 4500 5000 5600 6300 8000 8200
Width 2000 2000 2200 2200 2500 2500 2800 2800 3000
Height 550 550 600 650 700 850 900 1100 1250
Speed(m/min) 30 30 30 30 25 25 20 20 18
Wheel base A(mm) 2000 2200 2200 2500 2800 3200 3600 5000 5000
Track medial distance C(mm) 1435 1435 1435 1435 1435 1435 1650 2000 2000
Wheel diameter(mm) 400 400 400 500 500 600 700 700 700
Bottom clearance(mm) 50 50 50 60 60 60 60 70 70
Minimum turning radius 30 35 50 55 60 80 100 100
Motor model / power
(Kw)

KPD

(single-phase)

 JDYP-11-6 JDYP-12-6 JDYP-21-6 JDYP-22-6
2.2 3.5 5 7.5

KPD

(three-phase)

 YZ132M1-6 YZ132M2-6 YZ160M1
-6		 YZ160M2-6 YZ160L-6 YZ160M2
-6		 YZ160L
-6
2.2 3.7 5.5 7.5 11 2×7.5 2×11
Power mode KPD 380V reduced to 36V / 360V reduced to 36V then boosted to 380V
Recommended track model 24kg/m 38kg/m 43kg/m QU80 QU100
Number of wheels 4 8
Maximum wheel Pressure (t) 1.91 3.21 4.87 7.5 11.5 16.9 27.6 22.8 28.5
Reference weight (t) 3.4 3.72 4.2 6 8.5 11.4 15.2 25.5 31.5

Note: 1) Other gauges, table sizes and load tonnages can be customized according to user requirements;

2) Imported and domestic industrial wireless remote-control devices are optional;

3) Optional imported wireless two-speed control;

4) Optional matching automatic parking, and alarming when encountering person 2 meters away.
