Mold Handling Cart
Mold Handling Cart
Mold Handling Cart
Mold Handling Cart
Mold Handling Cart
Mold Handling Cart
Mold Handling Cart
Mold Handling Cart
Mold Handling Cart
Mold Handling Cart
Specifications
Brand Name :
Remarkable
Model Number :
RXP, RWP
Certification :
CE, SGS, ISO
Place of Origin :
Henan, China
MOQ :
1sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600/years
Delivery Time :
40-45 work days
Packaging Details :
1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Product Name :
Mold handling cart
Type :
trackless transfer cart
Power Supply :
Battery/Cable/AC+DC motor/motorized
Load Capacity :
1-500 tons/Customized
Table Style :
V/U/Roller/lift table/Customized
Mobile Mode :
Unlimited Distance, Directional
Operation Type :
Remote control+ Hand Pendant
Advantage :
Automation, heavy load, safety, no noise, easy to operate
High Light :
heavy cargo warehouse transfer cart,factory battery power transfer cart,factory transfer trolley
Application :
Industial Field, Die Mold Handling
Description

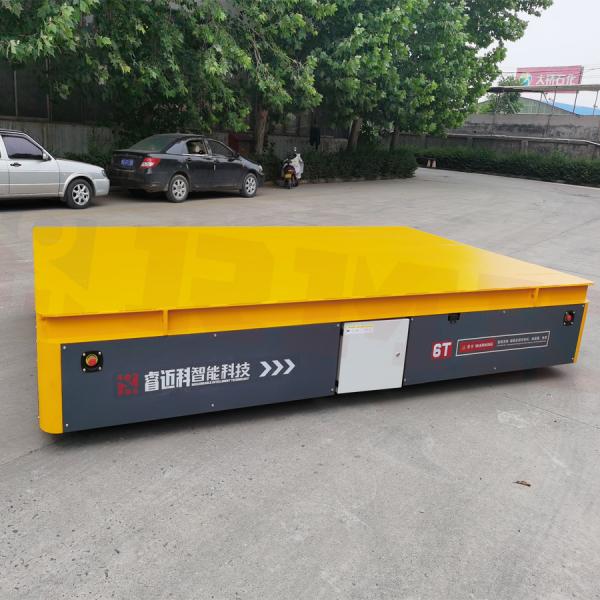

Mold Handling Cart

The mold handling cart is a kind of steerable transfer cart designed for stamping die workshop material handling. The handling carts are the perfect device where clients who require delicate handling solutions in very narrow spaces.

These carts can steer in any direction, enabling easy maneuvering. This makes them ideal for overcoming limited spaces and strictly constrained paths.

The design of each mold handling cart is preceded by a preliminary study of the client's specific needs, as well as their consequent use and conditions.

This kind of die transfer Heavy Load Mover is powered by the battery in the cart. DC motor and gear reducer are controlled by a DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on. The mold transport flat carts can be used both on the "S" and arc-shaped railways.
The mold Transfer cart is suitable for various industries, steel mills, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle, and coil, etc. from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the painting room Sandblasting room Other industries: shipbuilding, quarries, warehouses, and multi-bay workshops, etc

Mold Handling Cart

Technical parameters for trackless electric transfer carts
Rated load(t) 5 10 15 20 30 40 50 150
Impacted rated loa(t) 7.5 15 22.5 30 45 60 75 225
Structure of frame steel plates welded, beam structure
Max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
Ground requirement cement floor steel plate ground
Table size(mm) 3000×
2000		 3600×
2000		 4000×
2200		 4500×
2200		 5000×
2200		 5500×
2300		 6000×
2300		 10000×
3000
Height of the whole cart(mm) 450 530 600 600 650 700 700 1200
Ground clearance(mm) 50 75
Turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
Turning type turning while driving with no stop
Control method for turning control button
Turning structure mechanical
Wheel material ZG55+hydropur ture
Running speed(m/min) 0-15 0-12
Brake principle electric magnetic brake
Operation method with wire or no wire
Battery model D-250x24 D-33x24 D-400x24 D-440x24 D-250x36 D-330x36 D-440x36 D-600x36
Battery maintenance free of maintenance
Charger's installation installed on cart split-type

Mold Handling Cart

Main features:

(1) KPX series is safer and more flexible.

(2) It has no strict requirement for the construction of the railway

(3) No limit of running distance

(4) Safe and convenient operation for there is no wire outside the car

(5) Adjustable speed

Mold Handling Cart

Mold Handling Cart
