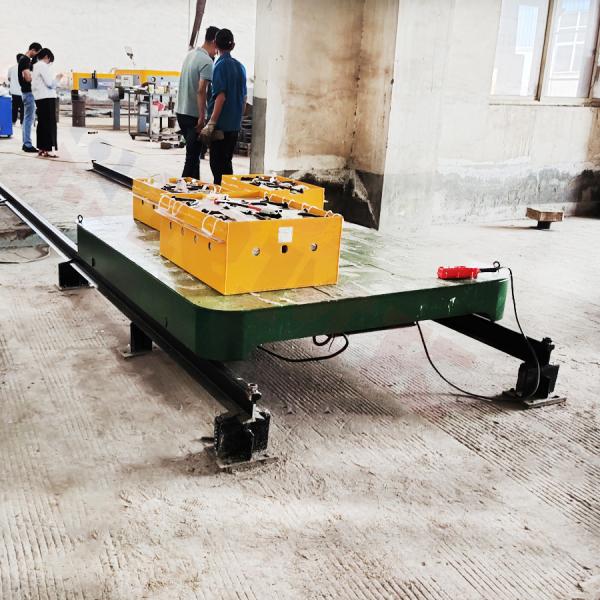

Heavy Load 12 Ton Industrial Transfer Cart DC Motor Electric Battery
The advantage of KPD low-voltage rail electric flat car is that without cables, it is not only safe, but also not afraid of scalding, smashing and hindering cross transportation. It is easy to realize remote control and automation. It can drive on curves and roundabouts. Appropriately increasing the number of step-down transformers can be free from the limitation of flat car running distance, which is very convenient for the transportation plane layout of the plant. The low-voltage track electric flat car can run automatically on the track, and can realize fixed-point parking, automatic operation, etc. when there are too many things to be transported and it is difficult to carry by manpower, the equipment can reduce the manpower labor, and the flat car can also be used to complete the transportation process, which is easy to use. The equipment is made of very thick steel plate, so it has strong bearing capacity, can be used for a long time, and is not easy to deform. Relying on the equipment to transport objects, many objects can be transported at one time without people running back and forth. Mechanical automation is adopted for operation, which is more convenient and convenient. When the low-voltage track electric flat car is driving downhill, it shall be strictly prohibited to drive at high speed, and pay attention to deceleration when turning. When replacing the fuse of KPD low-voltage rail electric flat car, remember to ensure that the rated current of the new fuse is correct. When maintaining the low-voltage track electric flat car, remember to disconnect the positive wire of the battery.

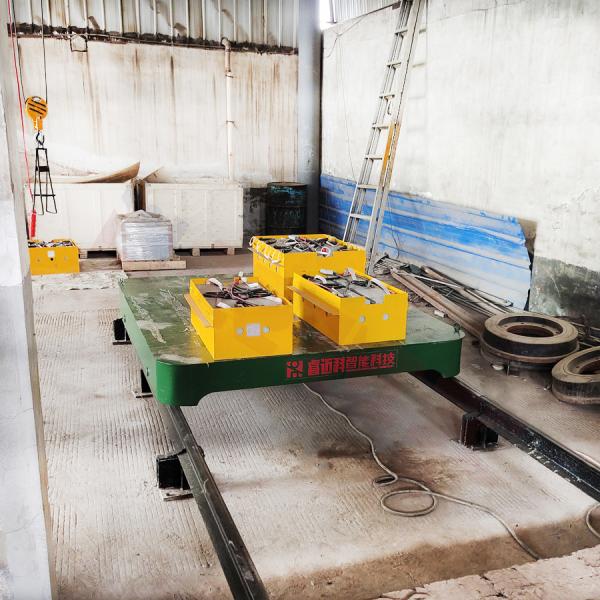

Heavy Load 12 Ton Industrial Transfer Cart DC Motor Electric Battery
Technical parameters for Low-voltage track powered electric transfer carts KPD series | ||||||||||
Model | KPD-6t | KPD-10t | KPD-16t | KPD-25t | KPD-40t | KPD-63t | KPD-100t | KPD-160t | KPD-200t | |
Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
Countertop size (mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
Motor model / power (Kw) | KPD (single-phase) | JDYP-11-6 | JDYP-12-6 | JDYP-21-6 | JDYP-22-6 | |||||
2.2 | 3.5 | 5 | 7.5 | |||||||
KPD (three-phase) | YZ132M1-6 | YZ132M2-6 | YZ160M1 -6 | YZ160M2-6 | YZ160L-6 | YZ160M2 -6 | YZ160L -6 | |||
2.2 | 3.7 | 5.5 | 7.5 | 11 | 2×7.5 | 2×11 | ||||
Power mode | KPD | 380V reduced to 36V / 360V reduced to 36V then boosted to 380V | ||||||||
Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
Number of wheels | 4 | 8 | ||||||||
Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 |
