Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Specifications
Brand Name :
Remarkable
Model Number :
RWP-20T
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
300 sets per year
Delivery Time :
30-45 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
After-sales service provided :
commissioning and training
Color :
Customized
Application :
Industry metallurgy, Material handling/steel coil/industrial
Capacity :
20 tons
Power supply :
Battery
Load capacity :
customized
Running speed :
0-20m/min
Power source :
battery
Usage :
material transferring
Safety features :
Warning alarm and End stop, end stop, Warning alarm
Control model :
wireless remote control and hand pendant
Description

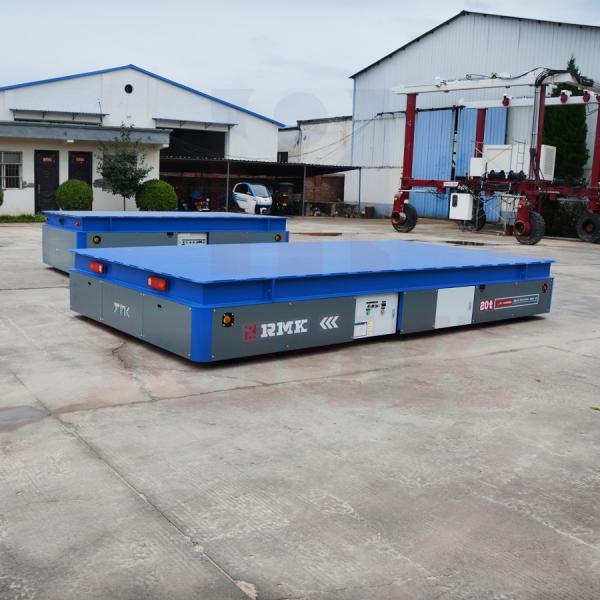

Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley

The Customer Uses The 20 Tons Motorized Transfer Trolley To Transport Granite. The Countertop Needs To Be Equipped With A Frame To Fix The Goods. Don't Shake Back And Forth Or Slide Off The Countertop During Transportation. According To Customer Requirements, The Table Is Customized With Non-Slip Aluminum Plates With Wired Handles And Wireless Two Operation Modes Of Remote Control. It Is Mainly To Transfer Large-Scale Large Generator Sets To The Inspection Room To Complete The Inspection.

Manufacturing And Advantages:

1. The Car Is Equipped With A Full Range Of Mobile Systems, Its Transport Is Flexible

2. It Can Cross Workshop Turnover Easily

3. Humanized Control Design Makes It Easy To Operate

4. High Security And Strong Bearing Capacity

Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley

Technical parameters for trackless electric transfer carts
rated load(t) 5 10 15 20 30 40 50
impacted rated load(t) 7.5 15 22.5 30 45 60 75
structure of frame steel plates welded, beam structure
max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12
ground requirement cement floor steel plate ground
table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300
height of the whole cart(mm) 450 530 600 600 650 700 700
ground clearance(mm) 50
wheels base(mm) 1500 1700 1800
axles distance(mm) 2500 3100 3400 3900 4300 4800 5200
turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
turning type turning while driving with no stop
control method for turning control button
turning structure mechanical
motor power(Kw) 3.5 5 6 7 10 12 15
wheel diameter(mm) 300 x 4 350 x 4 400 x 4 400 x 6 500 x 6
wheel material ZG55+hydropur ture
running speed(m/min) 0-20
brake principle electric magnetic brake
operation method with wire or no wire
battery maintenance free of maintenance
charger's installation installed on cart split-type
radar control 3-0.3m, automatic stop for obstacles
warning equipment sound and light
other functions turning light, night light and power display

20 Tons Motorized Transfer Trolley Apply For Granite Transportation Is One Kind Of Transfer Equipment For Steel Plate, Rebar, Steel Slab, Steel Coil, Mold, Pipe And Other Materials Handling Between Workshops That It Can Move Freely From Bay To Bay On The Cement Floor, From Production Line To Warehouse. We Can Design Hydraulic Lifting Device,Scissor Lifting Device, V Shape Supporting, Manual Hydraulic Outrigger, Add Rubber Pad On The Car's Table According To Client's Transportation Requirements.


Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley

Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley

Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley

Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley

Remote Control Granite Transportation 20 Tons Motorized Die Transfer Trolley
