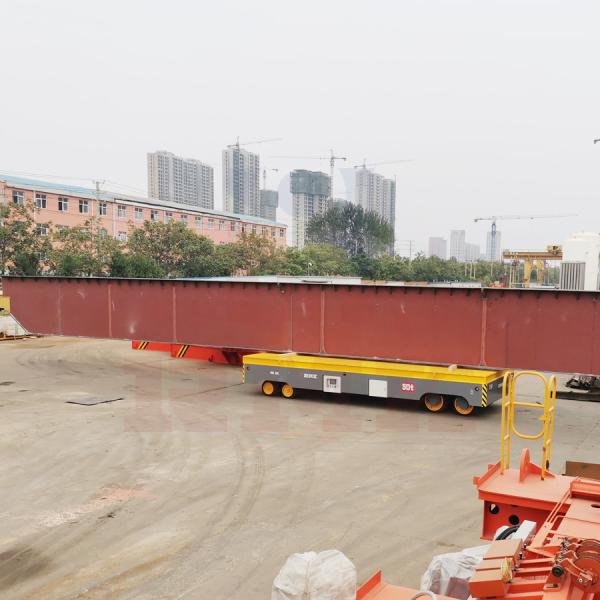

Battery Powered Motorized Transfer Cart , RMK 50T Heavy Load Transfer Trolley
Battery powered Motorized Transfer Cart is composed of power supply, transmission mechanism, steel structure bearing frame, steering system, walking mechanism, control module and fault diagnosis module. Usually, we choose battery, cable and motor as the power components of this series of transfer cars. The power supply provides power to the traction motor through the electrical control module system to realize the start, stop, forward, backward and steering memory functions of trackless electric flat cars.
Remarkable RWP series trackless transfer trolley can realize 360° Spin in place. All vehicles are equipped with warning and detection devices, which will alarm immediately and stop automatically when encountering pedestrians or obstacles, and cooperate with fully automatic intelligent charger. The trackless transfer vehicle can also be equipped with positioning device, clamping device, lifting platform and other auxiliary devices to meet the needs of different occasions. The series of vehicles can be equipped with PLC control system to realize complete automatic control, which is convenient for industrial transportation in various fields.
Technical parameters for trackless electric transfer trolleys | ||||||||
Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
Impacted rated loa(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
Structure of frame | steel plates welded, beam structure | |||||||
Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
Ground requirement | cement floor | steel plate ground | ||||||
Table size(mm) | 3000× 2000 | 3600× 2000 | 4000× 2200 | 4500× 2200 | 5000× 2200 | 5500× 2300 | 6000× 2300 | 10000× 3000 |
Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
Ground clearanc(mm) | 50 | 75 | ||||||
Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
Turning type | turning while driving with no stop | |||||||
Control method for turning | control button | |||||||
Turning structure | mechanical | |||||||
Wheel material | ZG55+hydropur ture | |||||||
Running speed(m/min) | 0-15 | 0-12 | ||||||
Brake principle | electric magnetic brake | |||||||
Operation method | with wire or no wire | |||||||
Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
Battery maintenance | free of maintenance | |||||||
Charger's installation | installed on cart | split-type |
Applicable sites of Motorized Battery Powered Trackless Transfer Trolley For Material Handling/Heavy Duty Transfer Cart 50tons
Remarkable trackless transfer cart is widely used in aerospace, military industry, machinery manufacturing, automobile industry, heavy industry manufacturing, mold manufacturing and various fields. In addition to the most basic transportation requirements, Remarkable electric transfer vehicles can also customize the size, operating system, power supply system, explosion-proof system, lifting system, etc.. According to the user's requirements to realize the lifting and other functions of the car table. When customers transport materials, if they need special shape transfer vehicles, we can also install roller supports on the vehicles according to the materials transported, so that it can adapt to automatic production workshops or flow production lines.
REMARKABLE conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
