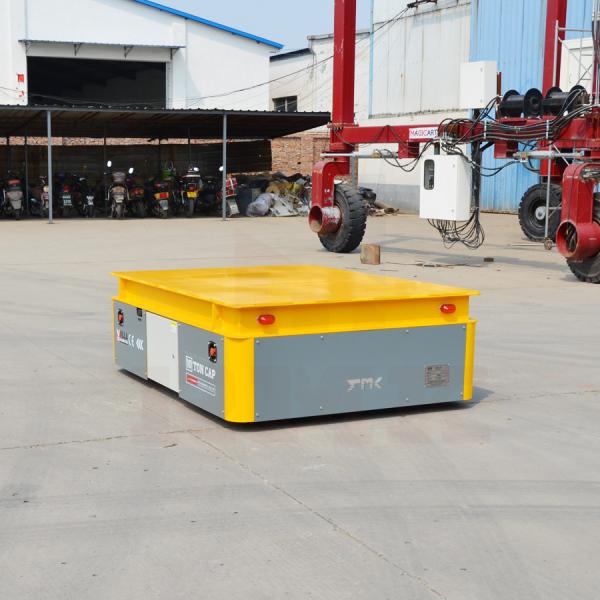

Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley
Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley
Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley
Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley
Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley
Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley
Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley
Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley
Specifications
Brand Name :
Remarkable
Model Number :
RWP
Certification :
CE, ISO
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600
Delivery Time :
30-45 work days
Packaging Details :
1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Power supply :
Maintenance free battery
Load :
10 tons
other name :
Weight Printing Transfer Trolley
Operation method :
Wireless remote control & Hand operate pendant
Traveling speed（m/min） :
0-20 (Stepless speed regulation)
Brake mode :
Electromagnetic brake
Battery charger function :
Automatic charging
Move Way :
Forward, backward, turning while driving with no stop
Description

Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley

Our company according to the user's requirements, after the design of engineers, a multi-functional metering transfer car (weighing dolly car, weighing carriage, weighing tranport platform, weight printing transfer trolley, rail weighing flat car) research and development success! The characteristics of this electric car are: in addition to the conventional electric transoprt car to transport goods, it also focuses on the measurement, weighing, printing and other functions of the transported goods. The whole car has: frame, wheel, reducer, motor, control system, instrument, weighing sensor, printer, weighing platform and other equipment. It has compact structure, centralized functions, simple operation, stable operation, low cost, low cost, high efficiency, low cost. Greatly improve the efficiency of production and increase the production space. So far, the design and R&D Department of our company has stepped into a new stage in the field of multi-functional transfer cars, which has laid a foundation for the future development of the company. At the same time, it has inspired the fighting spirit of our young designers, effectively improved the R&D strength of the company's non-standard electric flat cars, and the combat effectiveness of the company's R&D team.

Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport TrolleyPlant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport TrolleyPlant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley

Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley

Technical parameters for electric transfer carts
1 rated load(t) 5 10 15 20 30 40 50 150
2 impacted rated load(t) 7.5 15 22.5 30 45 60 75 225
3 structure of frame steel plates welded, beam structure
4 max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
5 ground requirement cement floor steel plate ground
6 table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300

6000×

2300

10000×

3000
7 height of the whole cart(mm) 450 530 600 600 650 700 700 1200
8 ground clearance(mm) 50 75
9 wheels base(mm) 1500 1700 1800 2000
10 axles distance(mm) 2500 3100 3400 3900 4300 4800 5200 10000
11 turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
12 turning type turning while driving with no stop
13 control method for turning control button
14 turning structure mechanical
15 motor power(Kw) 3.5 5 6 7 10 12 15 15
16 wheel diameter(mm) Ф300 x 4 Ф350 x 4 Ф400 x 4 Ф400 x 6 Ф500 x 6 Ф600 x 8
21 battery model D-250 x 24 D-33 x 24 D-400 x 24 D-440 x 24 D-250 x 36 D-330 x 36 D-440 x 36 D-600 x 36
22 battery maintenance free of maintenance
23 charger's installation installed on cart split-type
24 charger function automatic charging
25 radar control 3-0.3m, automatic stop for obstacles
26 warning equipment sound and light
27 other functions turning light, night light and power display
