Remarkable RWP series of trackless electric transfer cart is a kind of transport vehicle with safety protection and various load transfer functions. Transfer carts uses lead-acid battery or lithium battery as energy, DC motor speed control drive technology, multi wheel hydraulic steering technology and double operation modes of wire control and remote control to realize the functions of start, stop, forward, backward and turning. Trackless series of transfer cars have the advantages of high safety and mobility, smooth operation, high precision, high speed, high flexibility, large load and high efficiency.
The biggest advantage of trackless trolleys is that there is no need to lay rails, and the walking route is not limited, which is convenient for material transportation in workshop, open area and warehouse. It is widely used in aerospace, military industry, machinery manufacturing, automobile industry, heavy industry manufacturing, mold manufacturing, engineering machinery, shipbuilding, port freight yard, steel plate distribution, iron and steel metallurgy, mine transportation and other industries.
Advantages:
1. Flexible and stable operation.
2. High intelligence and automation.
3. Modular design, less parts, easy maintenance.
4. Automatic obstacle avoidance system, stop when encountering obstacles to ensure safety.
5. Customized lift table.
6. It can move forward, backward, rotate 360 degrees, and turn while moving.
7. No track constraint, good flexibility, remote control to any area.
Technical parameters for electric transfer carts | |||||||||
1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
3 | structure of frame | steel plates welded, beam structure | |||||||
4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
5 | ground requirement | cement floor | steel plate ground | ||||||
6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
8 | ground clearance(mm) | 50 | 75 | ||||||
9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
12 | turning type | turning while driving with no stop | |||||||
13 | control method for turning | control button | |||||||
14 | turning structure | mechanical | |||||||
15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
22 | battery maintenance | free of maintenance | |||||||
23 | charger's installation | installed on cart | split-type | ||||||
24 | charger function | automatic charging | |||||||
25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
26 | warning equipment | sound and light | |||||||
27 | other functions | turning light, night light and power display |

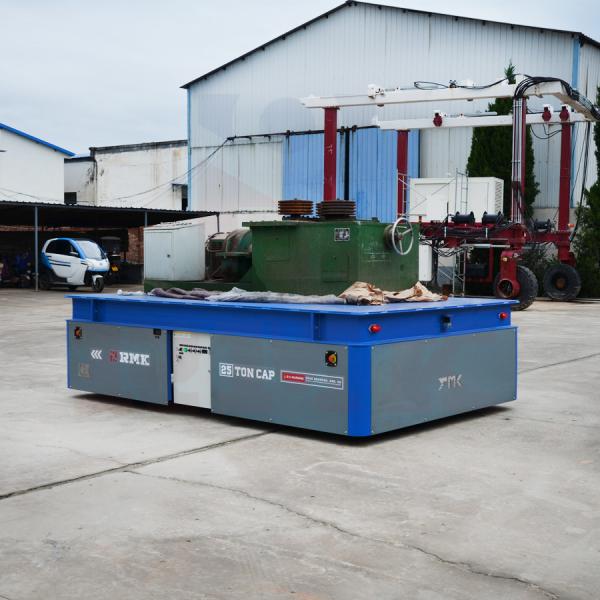

This is a 3t and 25t hydraulic lift device trackless transfer carts designed and produced by us for a transformer manufacturing company in Sri Lanka, which is used for the transportation of equipment and materials in the transformer production process. At the beginning, they contacted us to need a material transfer cart, but they didn't have specific ideas, because this is the first time they use a transfer cart. According to their needs and on-site production situation. The trackless transfer trolley with customized lifting table is convenient for operation and maintenance, safe and efficient. It is very suitable for them who use the transfer vehicle for the first time. Sri Lankan customers tried to customize a 3-ton lifting device trackless transfer cart. After it was delivered for use, we made operation videos and precautions for it. They put it into use immediately. Soon, Sri Lankan customers placed another order with us to customize a 25 ton heavy duty lift device trackless transfer cart.
