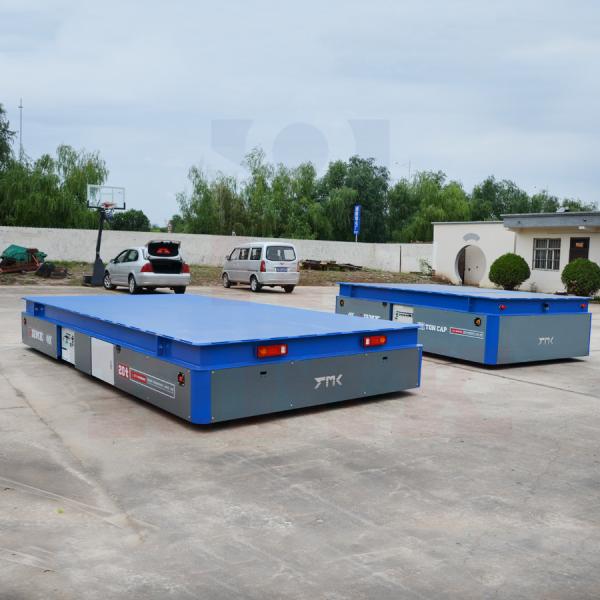

Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
Specifications
Brand Name :
Remarkable
Model Number :
RWP-20T
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
300 sets per year
Delivery Time :
30-45 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
After-sales service provided :
commissioning and training
Color :
Customized
Application :
Industry metallurgy, Material handling/steel coil/industrial
Capacity :
20 tons
Power supply :
Battery
Load capacity :
customized
Running speed :
0-20m/min
Power source :
battery
Usage :
material transferring
Safety features :
Warning alarm and End stop, end stop, Warning alarm
Control model :
wireless remote and hand pendant
Description


Anti-High Temperature DC Motor, 20 Tons Remote Control Die Transfer Cart

The 20 Tons Anti-High Temperature Die Transfer Car Is A Kind Of Material Handling Tool, Applied In The Workshop For Material Transport. The Battery Transfer Trolley Also Known As Steerable Transfer Trolley, It Is The Perfect Device Where Clients Require Delicate Handling Solutions In Very Narrow Spaces.

Custom Options

1. Customized Capacity From 1 Ton To 100 Tons

2. Any Kind Of Wheels (Polyurethane, Mcnamm, Solid, Super Elastic Or Pneumatic)

3. Anti-Explosion, Anti-High Temperature,Anti-Water,Anti-Dust,Etc

4. Customized System (Lifting, Weighing, Titling, Plc, Etc.)

5. Optional Control System (Operation Handle/Remote Controller)

6. Safety System (LED Flashing Lights, Sound Acoustic Devices, E-Stop, Buffer, Etc.)

Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart

Technical parameters for trackless electric transfer carts
rated load(t) 5 10 15 20 30 40 50
impacted rated load(t) 7.5 15 22.5 30 45 60 75
structure of frame steel plates welded, beam structure
max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12
ground requirement cement floor steel plate ground
table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300
height of the whole cart(mm) 450 530 600 600 650 700 700
ground clearance(mm) 50
wheels base(mm) 1500 1700 1800
axles distance(mm) 2500 3100 3400 3900 4300 4800 5200
turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
turning type turning while driving with no stop
control method for turning control button
turning structure mechanical
motor power(Kw) 3.5 5 6 7 10 12 15
wheel diameter(mm) 300 x 4 350 x 4 400 x 4 400 x 6 500 x 6
wheel material ZG55+hydropur ture
running speed(m/min) 0-20
brake principle electric magnetic brake
operation method with wire or no wire
battery maintenance free of maintenance
charger's installation installed on cart split-type
radar control 3-0.3m, automatic stop for obstacles
warning equipment sound and light
other functions turning light, night light and power display


Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart

20 Tons Bay To Bay Battery Powered Die Transport Platform Is One Kind Of Transfer Equipment For Stone Materials, Steel Rebar, Brick Kiln, Bridge Metal, Steel Pipe, Steel Tube, Hopper, Steel Billet, Steel Coil, Steel Plate, Injection Mold Steel Beam Transport In Steel Plant From Bay To Bay, And Mold Plant, Workshop Materials, Steel Bar, Steel Structure, Steel Plate, Steel Coil, Pallet, Pipe And Other Materials.


Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart

Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart

Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart

Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart

Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart

Anti - High Temperature DC Motor , 20 Tons Remote Control Die Transfer Cart
