Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley
Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley
Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley
Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley
Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley
Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley
Specifications
Brand Name :
Remarkable
Model Number :
KPG
Certification :
CE, ISO
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600sets
Delivery Time :
30-45 work days
Packaging Details :
1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Power supply :
Battery powered
Load :
1-500 tons
Ground type :
rail
Operation method :
Wireless remote control & Hand operate pendant
Traveling speed（m/min） :
0-20 (Stepless speed regulation)
Other function :
Automatic weighing,Equip with turning light, night light, battery display, etc.
Product name :
40 Ton Rail Transfer Trolley
table size :
customized
Wheels type :
Cast Wheel; Forged Wheel
Description

Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley

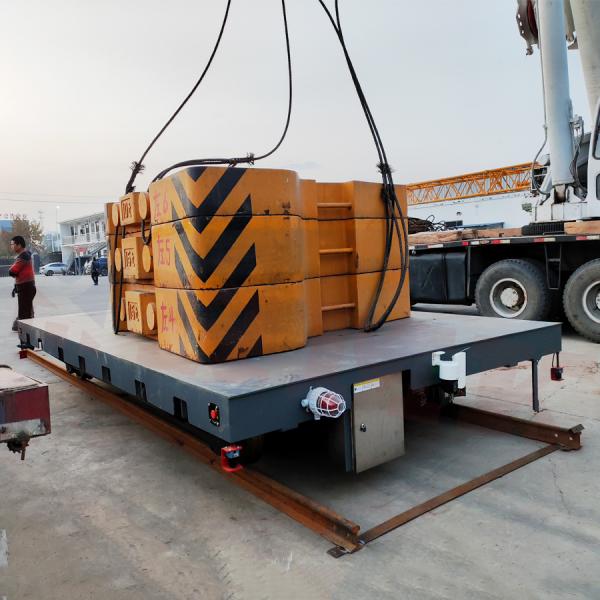

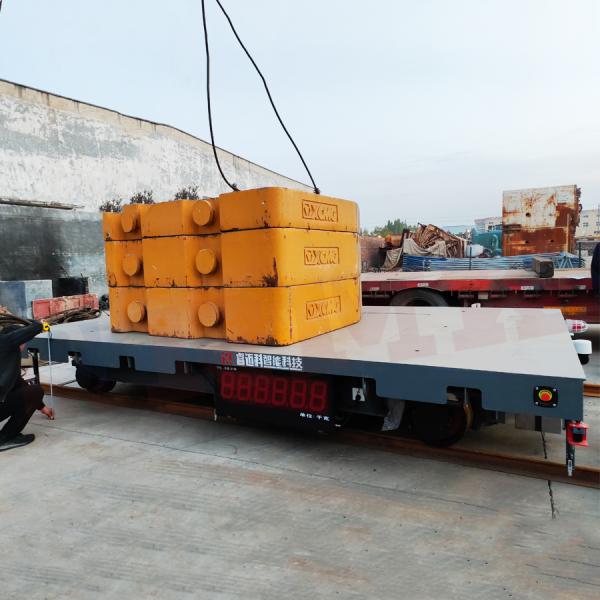

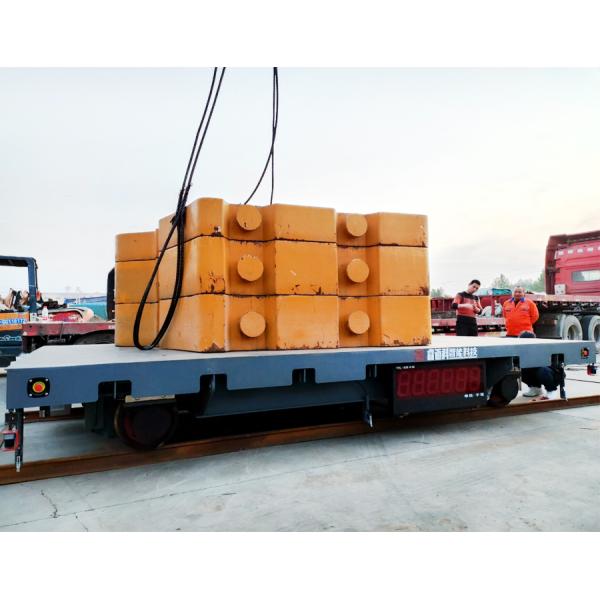

The 40 ton rail transfer trolley designed and manufactured by Remarkable for a nuclear power company in China will be delivered to the customer's use site after load test, functional operation test and customer acceptance. The rail transfer cart is equipped with weighing system, explosion-proof device, camera monitoring system and other devices for the transportation of nuclear waste, nuclear materials and other goods.

Remarkable can customize transfer trolleys of various types, functions and fields according to the needs of customers. Welcome to consult and visit!

Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer TrolleyNuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley

Technical parameters for rail power transfer carts
Model KPG-6t KPG-10t KPG-16t KPG-25t KPG-40t KPG-63t KPG-100t KPG-160t KPG-200t
Rated load (t) 6 10 16 25 40 63 100 160 200
Countertop size(mm) Length 3600 3600 4000 4500 5000 5600 6300 8000 8200
Width 2000 2000 2200 2200 2500 2500 2800 2800 3000
Height 550 550 600 650 700 850 900 1100 1250
Speed(m/min) 30 30 30 30 25 25 20 20 18
Wheel base A(mm) 2000 2200 2200 2500 2800 3200 3600 5000 5000
Track medial distance C(mm) 1435 1435 1435 1435 1435 1435 1650 2000 2000
Wheel diameter(mm) 400 400 400 500 500 600 700 700 700
Bottom clearance(mm) 50 50 50 60 60 60 60 70 70
Minimum turning radius 30 35 50 55 60 80 100 100
Power mode Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered
Recommended track model 24kg/m 38kg/m 43kg/m QU80 QU100
Number of wheels 4 8
Maximum wheel Pressure (t) 1.91 3.21 4.87 7.5 11.5 16.9 27.6 22.8 28.5
Reference weight (t) 3.4 3.72 4.2 6 8.5 11.4 15.2 25.5 31.5
Note: 1) Other gauges, table sizes and load tonnages can be customized according to user requirements;
2) Imported and domestic industrial wireless remote-control devices are optional;
3) Optional imported wireless two-speed control;
4) Optional matching automatic parking, and alarming when encountering person 2 meters away.

Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley

Advantages of 40 ton rail transfer trolley

Custom stainless steel checkered plate

Large capacity battery power supply

Automatic weighing function

Video monitoring function

Video console

Soft start and soft stop

Two modes of wireless remote control + handle operation are interlocked

Lidar obstacle avoidance

Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer TrolleyNuclear Industry Apply Heavy Duty 40 Ton Rail Transfer TrolleyNuclear Industry Apply Heavy Duty 40 Ton Rail Transfer TrolleyNuclear Industry Apply Heavy Duty 40 Ton Rail Transfer TrolleyNuclear Industry Apply Heavy Duty 40 Ton Rail Transfer TrolleyNuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley
