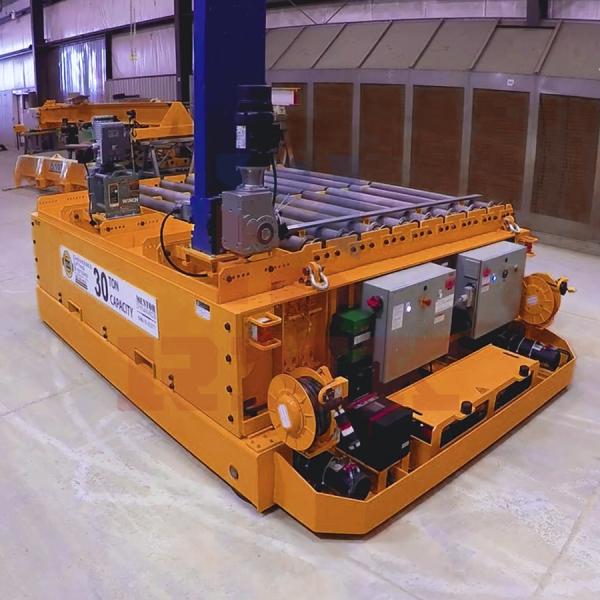

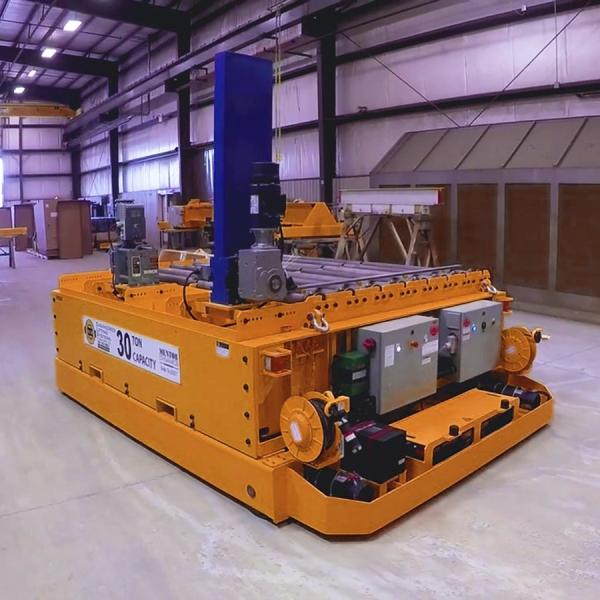

30 Ton Industry Material Handling Vehicle
The material handling vehicle is the movable platform used for the horizontal movement of materials, assemblies, and other items. Originally designed for loads transfer between overhead crane bays, with the diversification of demand, it has been developed to transport in the assembly line, within or without warehouse, or around the factory. Trackless material handling vehicle is now used to carry loads along assembly lines, carry an entire shift of production on, and even as a stable movable machine base.
Remarkable material handling vehicles are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving molds inside and outside the plant by electric traction and driving long distances. And also Heavy Load Transfer Carts are mainly used to solve maneuverability problems in tight spaces. Due to all possible steering programs, on either one or different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.
Material Handling Vehicle of Parameter
Technical parameters for trackless electric transfer carts | ||||||||
Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
Impacted rated load (t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
Structure of frame | steel plates welded, beam structure | |||||||
Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
Ground requirement | cement floor | steel plate ground | ||||||
Table size(mm) | 3000× 2000 | 3600× 2000 | 4000× 2200 | 4500× 2200 | 5000× 2200 | 5500× 2300 | 6000× 2300 | 10000× 3000 |
Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
Ground clearance (mm) | 50 | 75 | ||||||
Wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
Axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
Turning type | turning while driving with no stop | |||||||
Control method for turning | control button | |||||||
Turning structure | mechanical | |||||||
Motor power(KW) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
Wheel diameter(mm) | Ф300x4 | Ф350x4 | Ф400x4 | Ф400x6 | Ф500x6 | Ф600x8 | ||
Wheel material | ZG55+hydropur ture | |||||||
Running speed (m/min) | 0-15 | 0-12 | ||||||
Brake principle | electric magnetic brake | |||||||
Operation method | with wire or no wire | |||||||
Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
Battery maintenance | free of maintenance | |||||||
Charger's installation | installed on cart | split-type |
The motorized transfer trolley has been created and built for their utmost extent of working flexibility. Due to they have no predefined pathway and can steer in any direction and can run on any kind of floor the large table motorized material transfer trolleys are very beneficial to bring the heavy-duty where overhead cranes cannot reach. And also the trolleys symbolize the best method for all those appliances with delicate handling issues in limited space.
Operating easiness makes the powered trolleys immaculacy to meet the most important demands: where places are very limited and pathways are extremely constrained. The conception of each transfer trolley is guided by a preliminary study about particular needs of users and consequent use occasions.
We design & manufacture high-quality motorized material transfer trolleys according to per client's requirements. It's optional in various sizes and shapes. We used preeminent quality of steel, iron for all the transfer trolleys manufacturing.
