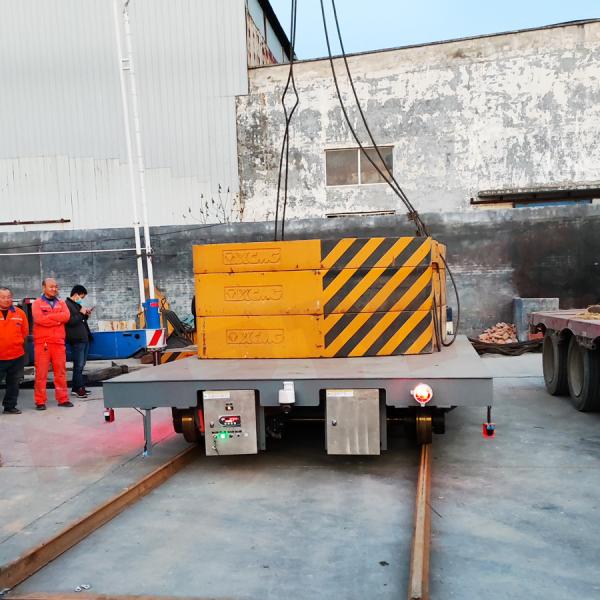

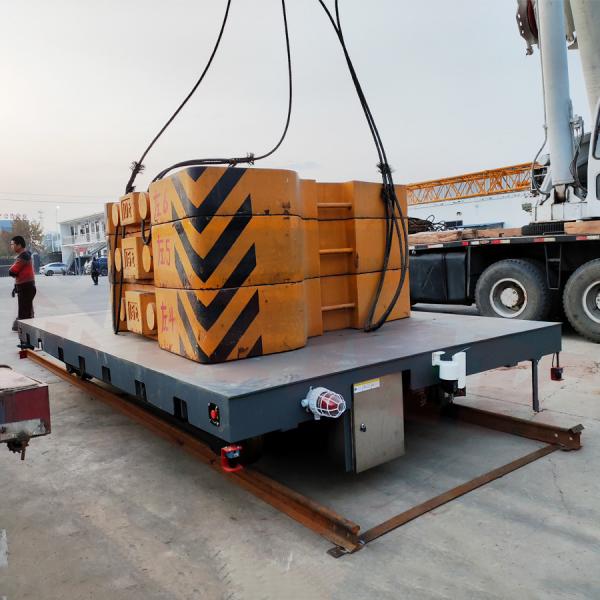

Remote Control 40 Tons Motorized Transfer Cart Apply For Steel Material Handling
This 40 Tons Motorized Transfer Cart Apply For Steel Material Handling Is Equipped With Explosion-Proof Alarm Light, Camera And Load-Bearing System To Facilitate Customers To Monitor The Weight And Operation Process Of Goods Transported By The Car. The Vehicle Is Used To Transport Nuclear Waste. The Laser Obstacle Avoidance System Configured On The Vehicle Is To Avoid Collision With Obstacles And People, So That Workers Can Have A Safety Guarantee When Operating The Vehicle.
Motorized Transfer Trolley Is Used For Transferring Material From One Place To Another. Motorized Transfer Trolley Are Manufactured With Load Carrying Capacities From 1 Ton To 100 Tond Capacities As Per Customer's Requirement.Transfer Trolley Has Two Drive Wheels And Two Idler Wheels. Power Through Both Drive Wheels Has Separate Gearboxes And Electric Motors. Both Motors Are Synchronized Through AC Variable Frequency Drive. Depending Upon The Load Bearing Capacity Of Transfer Wagon/Trolley, A Number Of Drive Wheels And Idler Wheels Are Provided. Radio Remote Control Is Provided To Move Trolley To And Fro.
Custom Options
1. Customized Capacity From 1 Ton To 100 Tons
2. Any Kind Of Wheels (Polyurethane, Mcnamm, Solid, Super Elastic Or Pneumatic)
3. Anti-Explosion, Anti-High Temperature,Anti-Water,Anti-Dust,Etc
4. Customized System (Lifting, Weighing, Titling, Plc, Etc.)
5. Optional Control System (Operation Handle/Remote Controller)
6. Safety System (LED Flashing Lights, Sound Acoustic Devices, E-Stop, Buffer, Etc.)
Technical parameters for Low-voltage track powered electric transfer carts KPD series | ||||||||||
Model | KPD-6t | KPD-10t | KPD-16t | KPD-25t | KPD-40t | KPD-63t | KPD-100t | KPD-160t | KPD-200t | |
Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
Countertop size (mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
Motor model / power (Kw) | KPD (single-phase) | JDYP-11-6 | JDYP-12-6 | JDYP-21-6 | JDYP-22-6 | |||||
2.2 | 3.5 | 5 | 7.5 | |||||||
KPD (three-phase) | YZ132M1-6 | YZ132M2-6 | YZ160M1 -6 | YZ160M2-6 | YZ160L-6 | YZ160M2 -6 | YZ160L -6 | |||
2.2 | 3.7 | 5.5 | 7.5 | 11 | 2×7.5 | 2×11 | ||||
Power mode | KPD | 380V reduced to 36V / 360V reduced to 36V then boosted to 380V | ||||||||
Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
Number of wheels | 4 | 8 | ||||||||
Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 |
Note: 1) Other gauges, table sizes and load tonnages can be customized according to user requirements;
2) Imported and domestic industrial wireless remote-control devices are optional;
3) Optional imported wireless two-speed control;
4) Optional matching automatic parking, and alarming when encountering person 2 meters away.
