Specifications
Brand Name :
Remarkable
Model Number :
KPX/KPD/KPJ
Certification :
CE, ISO
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600
Delivery Time :
30-45 work days
Packaging Details :
1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Power supply :
Cable
Load :
1-1000 tons
Ground type :
P8/P24
Operation method :
Wireless remote control & Hand operate pendant
Traveling speed（m/min） :
0-25 (Stepless speed regulation)
Other function :
Electric Track Rail Transfer Cart, Steel Plate Rail Transfer Cart, 8 Ton Rail Transfer Cart
Product name :
Explosion-proof Track handling electric transfer flatbed cart
table size :
Roller/Customized
Feature :
Explosion-Proof , Two Car Linkage ,Special rail Transfer Cart
Application :
Industrial Field, Steel Plate Transfer,workshop Handler
Description

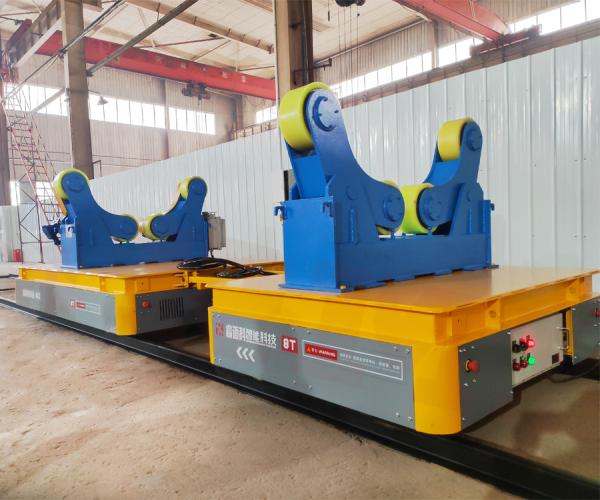

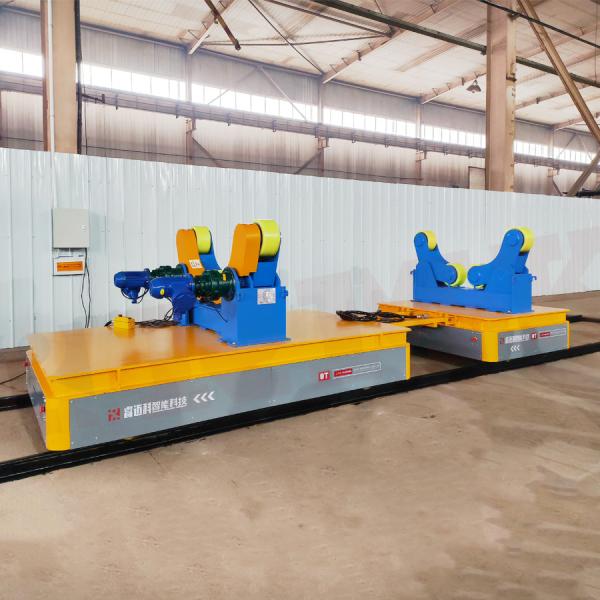

Explosion-Proof Track Handling Electric Transfer Flatbed Cart For Spray Booth

Explosion-proof Track handling electric transfer flatbed cart, Power supply via safety cable, track handling transfer cart is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. The Explosion-proof Track handling electric transfer flatbed cart has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry, etc. The custom electric track transfer flatbed cart is available in inflammable and explosive environments or used as a ferry car. The KPD electric rail transfer flatbed cart is suitable for long-distance transportation and low frequency since its travel distance is unlimited and has low requirements to the track.

Contact Us For A Free Consultation Based On Your Requirements. Remarkable Sells Its Explosion-Proof Track Handling Electric Transfer Flatbed Cart Worldwide!

Explosion Proof Track Handling Electric Transfer Flatbed Cart For Spray Booth

Technical parameters for Battery powered electric transfer carts KPX series
Model KPX-2t KPX-5t KPX-10t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-150t
Rated Load(t) 2 5 10 20 25 30 40 50 150
Table Size(mm) Length 2000 3500 3600 4000 4500 4500 5000 5500 10000
Width 1500 2000 2000 2200 2200 2200 2500 2500 3000
Height 450 500 500 550 600 600 650 650 1200
Wheel Base(mm) 1200 2500 2600 2800 3200 3200 3800 4200 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Ø270 Ø300 Ø300 Ø350 Ø400 Ø400 Ø500 Ø500 Ø600
Wheel Quantity 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 75
Running Speed(m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.2 1.6 2.2 3 3.5 4 5 15
Battery Capacity (Ah) 180 180 180 180 250 250 300 330 600
Battery Voltage(V) 24 36 48 48 48 48 48 48 72
Running Time When Full Load 4.32 5.4 4.8 4 4 3.5 3.6 3.3 2.9
Running Distance for One Charge (Km) 6.5 8.1 7.2 4.8 4.8 4.2 4.3 4 3.2
Max Wheel Load (KN) 14.4 25.8 42.6 77.7 94.5 110.4 142.8 174 266
Reference Weight(t) 2.8 3.6 4.2 5.9 6.5 6.8 7.6 8 27
Recommended Rail Model P15 P18 P18 P24 P38 P38 P43 P43 QU100

1. Load capacity, table size, and rail gauge can be customized;
2. Options: Remote radio control (imported or made in china);
3. Automatic stop when detecting obstacle or person, limit switches (to limit travel);
4. Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery);
5. Motor (DC motor with brush and DC motor brushless);
6. Electrical parts (imported or made in China).


Explosion Proof Track Handling Electric Transfer Flatbed Cart For Spray Booth

Explosion Proof Track Handling Electric Transfer Flatbed Cart For Spray Booth

Working Principle

BKPJ Explosion-proof rail transfer vehicle, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails. Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.

Explosion Proof Track Handling Electric Transfer Flatbed Cart For Spray BoothExplosion Proof Track Handling Electric Transfer Flatbed Cart For Spray BoothExplosion Proof Track Handling Electric Transfer Flatbed Cart For Spray BoothExplosion Proof Track Handling Electric Transfer Flatbed Cart For Spray Booth

Explosion Proof Track Handling Electric Transfer Flatbed Cart For Spray Booth
