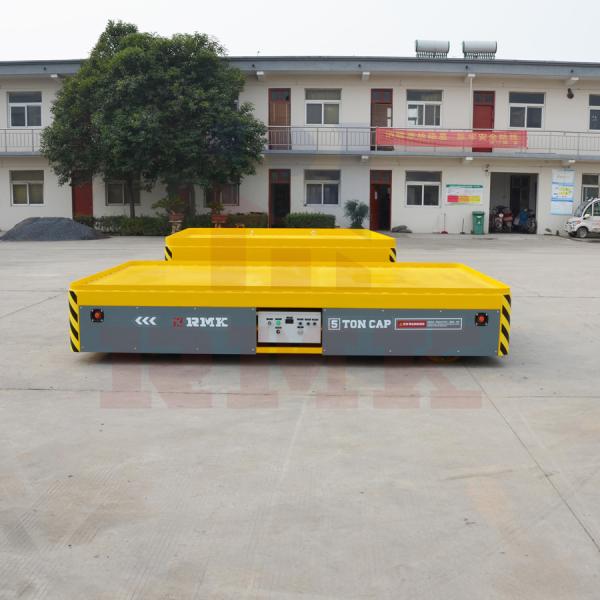

5 Tons Storage Warehouse Motorized Transfer Trolleys DC Motor With Remote Control
5 Tons Storage Warehouse Motorized Transfer Trolleys Is Battery Powered With Wireless Remote Control, Motor Gear Reducer As Driving System, Solid PU Wheels Can Be Run On The Ground Directly And Flexibly With No Limited Running Distance. And Imported Solid PU Wheels Can Reduce The Impair For The Ground. It Can Be Suitable For Smaller Space By 360 Degree Spot Turning, 360 Degrees Protection To Guarantee Site Safety, Including Dead Man Stop, Emergency Stop., Anti-Collision Device, Touch-Screen, This Design Is Humanization And Modernization. Automated Operation Makes The Car More Intelligent.
This Transfer Trolley Is Mainly Applied In The Field Of Automotive, Warehousing Or Logistics, Papermaking, Stereoscopic Warehouse. It Helps To Achieve Automated Logistics Transportation, Reduce Labor Cost And Improve The Production Efficiency.
Application Of Battery-Powered Transfer Cart
Battery-Powered Transfer Cart Is Suitable For Many Industries And Fields: Such As Steel Industry, Painting Workshop: Transfer Workpieces To Painting Booths, Quarries, Warehouses And Workshops, Foundry Industry, Metallurgical Industry, Manufacturing Industry, Mining Industry, Automobile Assembly Industry, Food Industry, Pharmaceutical Industry, Shipyard, Etc.
Advantages About Electric Transfer Trolley:
1. High Level Automation(Self Propelled/Steerable)
2. The Largest Capacity Can Reach To 100t
3. Safe Parts Are Installed In The Transfer Car(Warning Light, E-Stop, Buffer...)
4. Robust Sturdy Car Frame
5. AC/DC Electric Engine , Diesel Engine Or Pneumatic Engine
6. Excellent Gear Reducer And Motor With High Quality, Assemblied Together Perfectly
7. Remote Control&Hand Pendant Control Make The Opration More Convenient.
8. The Speed Can Be Adjusted
9. Easy Operation And Maintenance
10. Famous Brand Parts, Guarantee The Quality And Prolong The Using Lifetime
11. Low Noise And Do Not Pollute The Environment
Technical parameters for electric transfer carts | |||||||||
1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
3 | structure of frame | steel plates welded, beam structure | |||||||
4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
5 | ground requirement | cement floor | steel plate ground | ||||||
6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
8 | ground clearance(mm) | 50 | 75 | ||||||
9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
12 | turning type | turning while driving with no stop | |||||||
13 | control method for turning | control button | |||||||
14 | turning structure | mechanical | |||||||
15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
22 | battery maintenance | free of maintenance | |||||||
23 | charger's installation | installed on cart | split-type | ||||||
24 | charger function | automatic charging | |||||||
25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
26 | warning equipment | sound and light | |||||||
27 | other functions | turning light, night light and power display |
