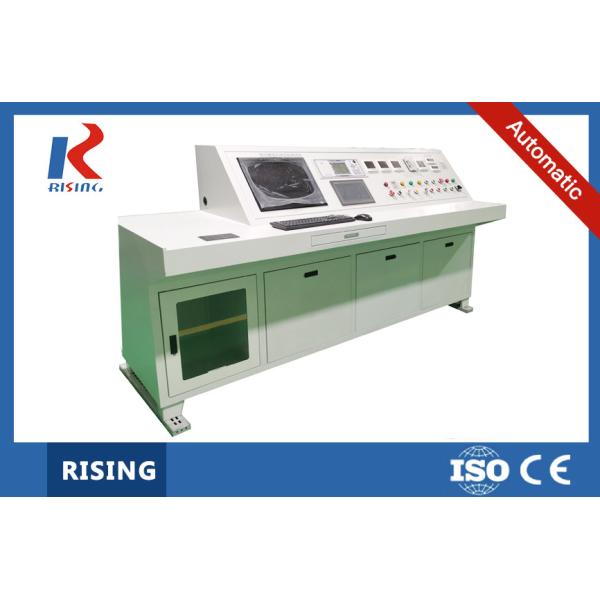

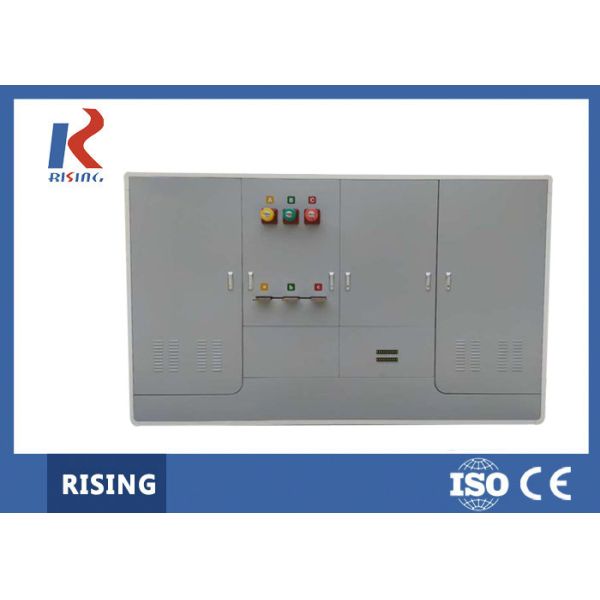

Comprehensive Test Bench 34.5kV 5000kVA Power Transformer Test Panel with Computer
Comprehensive Test Bench 34.5kV 5000kVA Power Transformer Test Panel with Computer
Specifications
Brand Name :
RISING
Model Number :
RSBTT-Ⅳ
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 SET PER Month
Packaging Details :
Wooden package
Voltage :
0.1-600V
Current :
0.1-200A
Power :
12000W
Power Supply :
AC 220V±10% 50Hz ± 2Hz
Temperature :
0℃-40℃
Moisture :
30%-90%
Power factor :
0.1-0.9999
Description

Comprehensive Test Bench 34.5kV 5000kVA Power Transformer Test Panel with Computer

Product Description
1. The experimental subject for the equipment must meet the following requirements:
34.5KV ordinary power transformers and special transformers, capacity 10000KVA and below,total current load test;
13.2KV ordinary power transformers and special transformers, capacity 3500kVA and below,total current load test;
2.The experimental subject for the equipment must meet the following requirements of voltage classes:
The impedance of the tested transformer is less than 10%, the voltage class is:
HV side 13.2KV,34.5KV, etc.
LV side:0.22KV～0.42kV.
3.The experimental subject for the equipment must meet the following requirements of tested capacity:
HV side voltage level 34.5KV capacity 10000KVA and below.
HV side voltage level 13.2KV capacity 3500kVA and below.
4.Routine testing
Transformer no-load current percentage and no-load loss testing;
Transformer short-circuit impedance percentage and load loss testing;
Transformer power frequency withstand voltage testing;
Transformer frequency doubling induced withstand voltage testing;
5.Based on the analysis of experimental ability, the experimental subject for the equipment must meet the following test ability:
No-load and load loss test ability
For the voltage level of 0.22 kV ~ 0.6 kV distribution transformer, it’ s ok to use the direct low-voltage circuit testing for no-load and load loss.
For the voltage level of 0.6kV~34.5KV transformer no-load and load loss and impedance voltage percentage test need to use Intermediate transformer.
In conclusion, High voltage current transformer of the variable ratio gear selection (Rated working voltage:30kV): 200A,100A,50A,25A,10A,5A,2.5A/1A, total:7 steps,precision grade:0.05%; voltage transformer of the variable ratio gear selection: 30kV,2kV,1kV,0.5kV, total:4 steps, precision grade:0.05%.
Feature/Function

The configuration enables the instrument to test 220kV, 110kV, 35kV and lower voltage grades 20000kVA and below capacity, single-phase and three-phase power, and many other special transformers.
