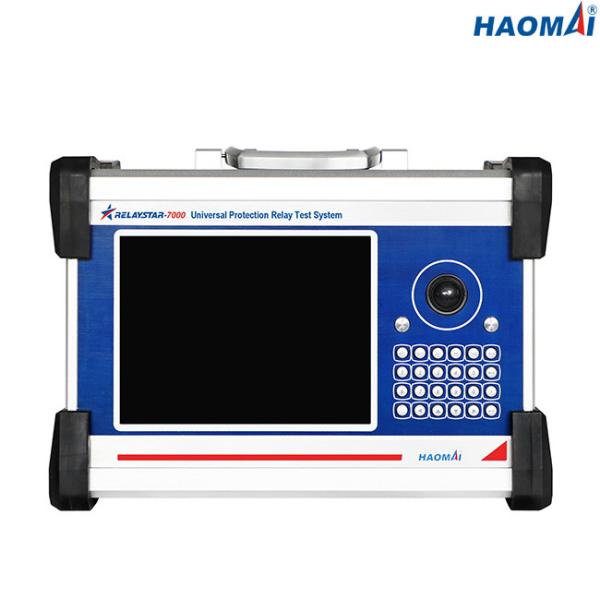

6 Channels 30A Secondary Current Injection Kit , Multiphase Universal Relay Test Set
6 Channels 30A Secondary Current Injection Kit , Multiphase Universal Relay Test Set
6 Channels 30A Secondary Current Injection Kit , Multiphase Universal Relay Test Set
6 Channels 30A Secondary Current Injection Kit , Multiphase Universal Relay Test Set
Specifications
Brand Name :
HAOMAI
Model Number :
RELAYSTAR-7000
Certification :
ISO9001:2015, Type Test Report, Calibration Report
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
400 sets per month
Delivery Time :
5-10 working days
Packaging Details :
Transport Case + Plywood Case
Product name :
Protection Relay Test Set, Relay Test Kit, Relay Test System
Current output :
6x0…30A
Voltage output :
6x0…150V
Output accuracy :
≤0.1% for AC output
IEC 61850 testing :
Available
Operation :
Local Mode + PC Mode
Description

Universal Secondary Injection Test Set

Model: RELAYSTAR-7000

The RELAYSTAR-7000 is multi-phase secondary injection test set, which can output 6 channels current and 6 channels voltage for testing electromechanical, solid state and microprocessor-based protective relays.

The IEC61850 Interface for RELAYSTAR-7000 is required for relay testing with Ethernet-based substation communication protocol.

The built-in GPS synchronizer module allows synchronize test start of two units RELAYSTAR-7000.

Main Features

1) Testing all kinds of protection relays: electromechanical, solid state, microprocessor-based numerical and IEC61850

2) Manual control with color display

3) Simultaneously available: 6 channels current and 6 channels voltage

4) High current outputs: 6 x 30 A, 3 x 60 A,1 x 180 A

5) IEC61850 protocol interface

6) USB and Ethernet interface

7) End to end test with GPS or IRIG-B

8) Highest quality, safety and reliability

Technical Data

General Current and Voltage Outputs

Current Generator Setting range 6-phase AC(L-N): 6x0…30A
DC(L-N): 6x0…±10 A
Power 6-phase AC(L-N): 6x450VA at 30A
DC(L-N): 6x120VA at 10A
Accuracy AC:±1mA(≤0.2A), ≤0.1% (0.2~30A)
DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A)
Resolution 1mA
Voltage Generator Setting range 6-phase AC(L-N): 6x0…150V
DC(L-N): 6x0…±160V
Power 6-phase AC(L-N): 6x80VA at 150V
DC(L-N): 6x80VA at 160V
Accuracy AC:±2mV(0.2~2V), ≤0.1% (2~150V)
DC:±10mV (0.5~5V), ≤0.2% (5~160V)
Resolution 1mV
General Generators Frequency range: 0~1200Hz
accuracy:<1mHz(0~65Hz), <10mHz(65~450Hz),<20mHz(450~1200Hz)
resolution: 0.001Hz
Phase range: -360° ~+360°
accuracy: 0.1°
resolution: 0.01°
Harmonic superposition order: 2~24 times
distortion: ≤0.5%

Ethernet Communication Interfaces

Mode 10/100Base-TX(10/100Mbit,twisted-pair,auto-crossover)
Number of port 2
Type of interface RJ45
Status indication LED lights

Optical Fiber Communication Interfaces

Mode 100Base-FX (100Mbit, optical fiber, full duplex)
Number of port 8
Type of interface LC
Fiber type 62.5/125μm(multi-mode fiber)
Wavelength 1310nm
Transmission distance >1km
Status indication LED lights

FT3 Interfaces

Number of port 9 (8 for transmitting, 1 for receiving)
Type of interface ST
Fiber type 62.5/125μm (multi-mode fiber)
Wavelength 850nm

Binary Inputs

Number 8
Type potential-free contact or idle contact (automatic identification)
Threshold characteristics “0”: 0～6V; “1”:12V～250V

Binary Outputs

Number 4
Type idle contact
Break capacity 250VAC/0.5A; 250VDC/0.2A

In-built Monitoring and Recording

Monitoring currents and voltage outputs
Recording analog outputs, binary inputs/outputs status
Mode real time monitoring, no external wiring is required
Recording length unlimited (until the internal memory is full)

Power Supply

Nominal input voltage customized (AC230V/120V±10%, 1-phase)
Nominal frequency 50/60 Hz
Rated current 10A at 230V / 12A at 120V
Connection Standard AC socket (IEC 60320)

Environmental Conditions

Operation temperature 0 ... +50 °C (+32 ... +122 °F)
Storage temperature -25 ... +70 °C (-13 ... +158 °F)
Humidity range relative humidity 5 ... 95 %, non-condensing
Vibration IEC 60068-2-6(20m/s2 at 10 ... 150 Hz)

Miscellaneous

Weight 19.5kg(42.99 lb)
Dimensions (W x H x D, without handle) 405×295×250mm(15.94x11.61x9.84 in)

Universal Secondary Injection Test Set RELAYSTAR-7000 is the preferred choice for test engineers in cases where numerical and communication based protections and IEDs.

IEC 61850 GOOSE simulation of RELAYSTAR-7000A: mapping of binary outputs to data attributes in published GOOSE messages.

Universal Secondary Injection Test Set RELAYSTAR-7000A can publish IEC 61850 Sampled Values according to the “Implementation Guideline for Digital Interface to Instrument Transformers Using IEC 61850-9-2” of the UCA International Users Group

HAOMAI Universal Secondary Injection Test Sets are widely used in power grid, petrochemical, metallurgy, railway, coal mine, research institutes and all kinds of large-scale factories or enterprises.
