Copper Foil Winding Machine Cold Pressure Making Reactor Coil
Copper Foil Winding Machine Cold Pressure Making Reactor Coil
Specifications
Brand Name :
STT
Model Number :
BRJ300-2-2
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
45 days
Packaging Details :
seaworthy packing
Name :
copper foil winding machine
Foil width :
100 ~ 300mm
Foil decoiler :
2 pcs
Welding mode :
cold pressure welding
Foil thickness :
0.2 ~ 3.0mm
Correct :
photoelectric
Power :
5.5kw
Rotating speed :
0 ~ 35rpm
Machine color :
customized
Warranty period :
12 months
Description

Copper Foil Winding Machine Cold Pressure Welding Unit Making Reactor Coil

Description of copper foil winding machine BRJ300-2-2

Copper foil winding machine BRJ300-2-2 is an automatic sheet winder. This copper foil winding machine is mainly used to wind both copper foil and aluminium foil, which can make reactor coils and other similar products. With servo motors, PLC control system and cold welding unit, the copper foil winding machine can weld different material together, such as welding aluminium foil with copper bus bar together. The copper foil winding machine can wind one or two layers of foil and it can also wind one or two layers of insulation paper at the same time. The copper foil winding machine features slow starting, smooth running, high automation, full function and easy operation etc.

Quick detail of copper foil winding machine BRJ300-2-2

  • Winding copper or aluminium foil
  • Foil material ID 500mm
  • Foil material OD 1000mm, maximum
  • Winding speed 35rpm
  • Winding power 5.5kw
  • Automatic cold welding
  • Servo motor driven
  • 12 months warranty

Main components of copper foil winding machine BRJ300-2-2

  • Main frame
  • Foil decoiler
  • Winding unit
  • Insulation decoiler
  • Edge alignment system
  • Automatic cold welding unit
  • Pneumatic unit
  • Electrical control system

Technical parameters of copper foil winding machine BRJ300-2-2

Typical standard specifications of copper foil winding machine BRJ300-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

Max. Foil Width: 300mm
Finished Coil OD. ( excl. Bus bar ): 500mm
Finished Coil OD. ( incl. Bus bar ): 600mm
Conductor Foil Material: Copper or aluminum
Cu Foil Material Thickness: 0.2 ~ 2.0mm
Al Foil Material Thickness: 0.3 ~ 3.0mm
Foil Material ID.: Ø 500mm
Foil Material OD.: Ø 1000mm, maximum
Conductor Decoiler Number: 2 pcs
Conductor Decoiler Length: 350mm
Conductor Decoiler Expanding Range: Ø 420 ~ 520mm
Max Coil Weight: 700kg
Rectifying Mode: Photoelectric sensing
Cleaning Unit Control Mode pneumatic
Insulation Paper Decoiler Number: 2 sets
Insulation Paper Coil OD.: Ø 400mm, maximum
Insulation Paper Coil ID.: Ø 76mm
Insulation Decoiler Width 350mm
Insulation Paper Decoiler Shaft: Expandable (pneumatic open/close action)
Winding Speed: 0 ~ 35 RPM
Winding Power of Servo Motor: 5.5kw
Cold Welding Device: 1 set
Counting Range: 0 ~ 9999.9

Copper Foil Winding Machine Cold Pressure Making Reactor Coil

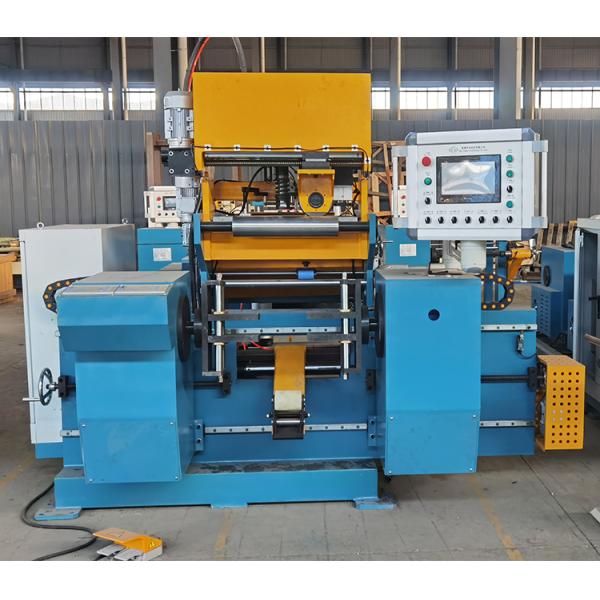

Fig 1: Copper foil winding machine BRJ300-2-2's front view

Copper Foil Winding Machine Cold Pressure Making Reactor Coil

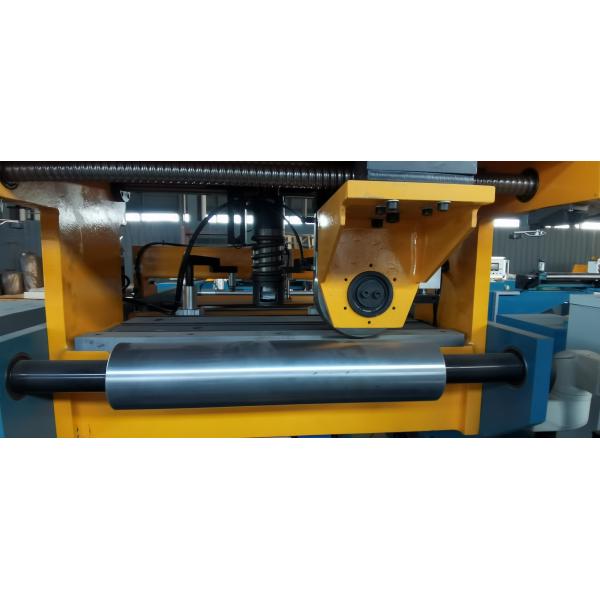

Fig 2: Copper foil winding machine BRJ300-2-2's cutter

Copper Foil Winding Machine Cold Pressure Making Reactor CoilCopper Foil Winding Machine Cold Pressure Making Reactor CoilCopper Foil Winding Machine Cold Pressure Making Reactor CoilCopper Foil Winding Machine Cold Pressure Making Reactor CoilCopper Foil Winding Machine Cold Pressure Making Reactor CoilCopper Foil Winding Machine Cold Pressure Making Reactor CoilCopper Foil Winding Machine Cold Pressure Making Reactor Coil
