Cold Pressure Welding Conductor Aluminium Or Copper Foil Winding Machine
Cold Pressure Welding Conductor Aluminium Or Copper Foil Winding Machine
Specifications
Brand Name :
STT
Model Number :
BRJ200
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Delivery Time :
45 days
Packaging Details :
wooden case
Name :
foil winding machine
Usage :
winding foil coils
Cu foil thickness :
0.2 ~ 2.0mm
Al foil thickness :
0.3 ~ 3.0mm
Welding mode :
cold pressure welding
Welding mold :
6 pcs
Machine color :
as requested
Warranty period :
12 months
Description

Cold Pressure Welding Conductor Aluminium Or Copper Foil Winding Machine

Description of copper foil winding machine BRJ200

Copper foil winding machine BRJ200 is one of special winder to wind copper or aluminium foil. This kind of foil winding machine is provided with cold pressure welding, which can be used to weld copper bus bar and copper foil or weld copper bus bar and aluminium foil together. Servo motor is adopted to make sure all actions of the machine are precise. The foil winding machine is with high precision, high automatic, high safety, high torque, smooth running and so on. The foil winding machine can be operated easily.

Main components of copper foil winding machine BRJ200

1. Main frame

2. Foil conductor decoiler

3. Roller

4. Winding unit

5. Insulation decoiler

6. Photoelectric sensor

7. Cold press welding unit

8. Pneumatic unit

Technical parameters of copper foil winding machine BRJ200

Typical standard specifications of copper foil winding machine BRJ200 are shown below, however, the copper foil winding machine can also be manufactured as requested.

Maximum foil width: 200mm
Finished Coil OD. ( excl. Bus bar ): Ø 600mm
Finished Coil OD. ( incl. Bus bar ): Ø 700mm
Finished coil Shape: Circle, Oval and Rectangle etc.
Conductor Material: Copper or aluminum strip
Cu Foil Thickness: 0.2 ~ 2.0mm
Al Foil Thickness: 0.3 ~ 3.0mm
Foil Material ID.: Ø 500mm
Foil Material OD.: Ø 1000mm, Maximum
Foil Decoiler Number: 1 pcs
Foil Decoiler Length: 250mm
Foil Decoiler Expanding Range: Ø 420 ~ 520mm
Maximum Coil Weight: 750kg
Rectifying Mode: Photoelectric sensing
Insulation Paper Decoiler Number: 1set
Insulation Paper Coil OD.: Ø 400mm, maximum
Insulation Paper Coil ID.: Ø 76mm
Insulation Decoiler Width 250mm
Insulation Paper Decoiler Shaft: Expandable (pneumatic open/close action)
Winding Speed: 0 ~ 60rpm
Winding Power of Servo Motor: 5.5kw
Welding Device: Cold welding
Control System: PLC
Operation Interface: Touch screen

Cold Pressure Welding Conductor Aluminium Or Copper Foil Winding Machine

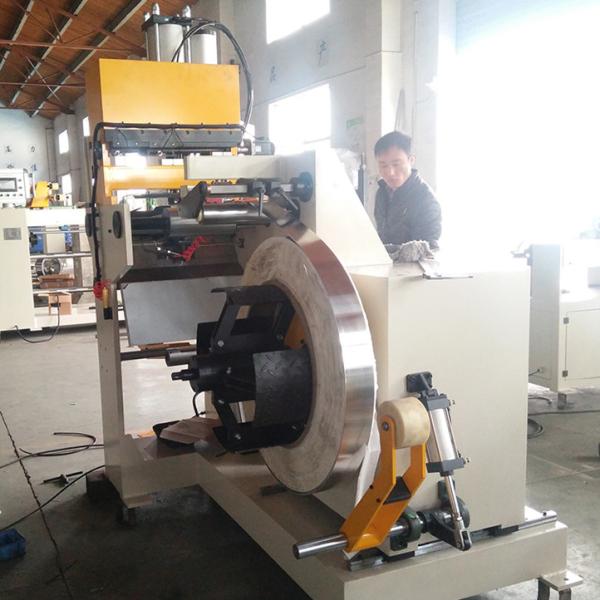

Fig 1: Copper foil winding machine BRJ200's full view

Cold Pressure Welding Conductor Aluminium Or Copper Foil Winding Machine

Fig 2: Copper foil winding machine BRJ200's back view

Cold Pressure Welding Conductor Aluminium Or Copper Foil Winding MachineCold Pressure Welding Conductor Aluminium Or Copper Foil Winding MachineCold Pressure Welding Conductor Aluminium Or Copper Foil Winding MachineCold Pressure Welding Conductor Aluminium Or Copper Foil Winding MachineCold Pressure Welding Conductor Aluminium Or Copper Foil Winding MachineCold Pressure Welding Conductor Aluminium Or Copper Foil Winding MachineCold Pressure Welding Conductor Aluminium Or Copper Foil Winding MachineCold Pressure Welding Conductor Aluminium Or Copper Foil Winding MachineCold Pressure Welding Conductor Aluminium Or Copper Foil Winding Machine
