Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine
Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine
Specifications
Brand Name :
STT
Model Number :
ZPX1400
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Product name :
transformer coil winding machine
Usage :
winding wire coil
Round wire :
Φ 0.3 ~ 5.0mm
Max. Flat wire :
5x12mm
Wire type :
copper or aluminium wire
Color :
as requested
Rotating speed :
0 ~ 90 rpm
Warranty :
1 year
Description

Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX1400

Transformer coil winding machine ZPX1400 is a heavy duty winding equipment, which can wind different specifications of coils. The wound coils can be used in transformers and other similar products. The transformer coil winding machine adopts automatic wire laying technology and servo motor driven mode, which guarantees the wire wound compactly and neatly. With a 7.5KW motor, the winding shaft provides enough torque to wind copper or aluminium wire. One potentiometer on the board is used to adjust the rotating speed of the transformer coil winding machine. The rotating direction of the winding shaft can be switched through the foot pedal. The coloured touch screen is used to provide a user friendly interface to input all the parameters. The transformer coil winding machine features slow starting, smooth running, big torque and high automation, etc.

Main Components of transformer coil winding machine ZPX1400

1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system

Technical Parameters of transformer coil winding machine ZPX1400

Typical standard specifications of coil winding machine ZPX1400 are shown below, however the transformer coil winding machine can also be manufactured as requested.

Center Height: 900mm
Shaft Length: 1700mm
Transverse Width: 1400mm
Main Motor Power: 7.5Kw
Winding Speed: 0 ~ 90 rpm
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Ø0.3-5.0mm
Max. Rotating OD.: 1200mm
Max. Loading Capacity: 700kg
Spread Pitch: Min. 0.01mm
Counting Mode: 5-digit counting
Counting Turn Range: 0 ~ 9999.9

Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine

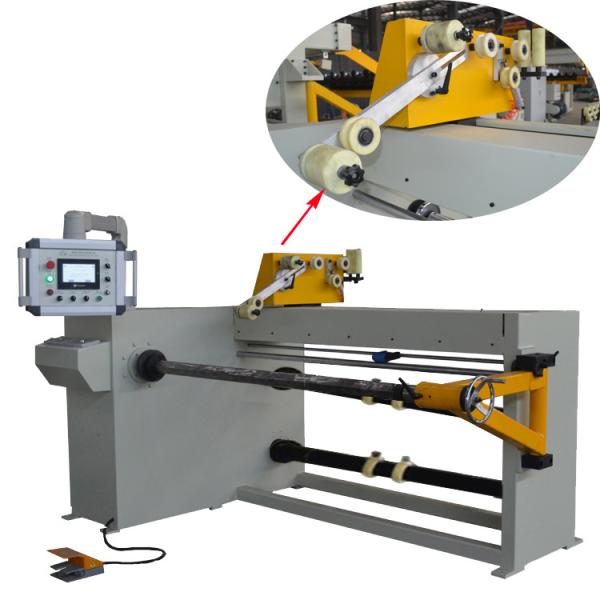

Fig 1: Transformer coil winding machine ZPX1400's front view

Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine
Fig 2: Transformer coil winding machine ZPX1400's triangle support

Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding MachineCopper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine
Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding MachineCopper Wire Winding Machine Automatic Distribution Transformer Coil Winding MachineCopper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine
Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine
Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine
Copper Wire Winding Machine Automatic Distribution Transformer Coil Winding MachineCopper Wire Winding Machine Automatic Distribution Transformer Coil Winding MachineCopper Wire Winding Machine Automatic Distribution Transformer Coil Winding Machine
