Automatic Core Cutting Machine Silicon Steel Strip Cutter Making Reactor Core
Automatic Core Cutting Machine Silicon Steel Strip Cutter Making Reactor Core
Specifications
Brand Name :
STT
Model Number :
DHJ400
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
90 days
Packaging Details :
seaworthy packing
Product name :
reactor core cutting machines
Function :
cutting silicon steel sheet
Strip cut width :
25 ~ 400mm
Strip cut thickness :
0.23 ~ 0.5mm
Cutting speed :
120m/min
Power :
12.5kw
Color :
customizable
Warranty :
12 months
Description

Silicon Steel Strip Cutter Making Reactor Core Automatic Core Cutting Machine

Description of automatic core cutting machine DHJ400

Automatic core cutting machine DHJ400 is a special cutting machine. The core cutting machine is mainly used to cut silicon steel strip to make reactor cores and other similar products. The automatic core cutting machine can cut the silicon steel strip with maximum width 400mm. The automatic core cutting machine can also punch holes on the strip if needing. The automatic core cutting machine is driven by servo motor, which guarantees the accuracy of the cutting and punching operations. The automatic core cutting machine’s cutter blade adopts carbide cutter knife, this kind of knife is with HRC88 ~ 90 hardness, the blade does not need regrind unit cutting more than 5 million times. With a touch screen, the core cutting machine can be operated very easily.

Quick details of automatic core cutting machine DHJ400

  • Cutting sheet thickness 0.23 ~ 0.35mm
  • Cutting sheet width 40 ~ 400mm
  • Cutting sheet length 10 ~ 9999mm
  • Feeding sheet speed 180m/min
  • Power 12.5kw
  • One year warranty

Main components of automatic core cutting machine DHJ400

1.Decoiler for placing steel material

2.Main body of the machine

3.Feeding sheet unit

4.Hole punching device

5.Shearing unit

6.Stacking table

7.Control system

Main Parameters

Typical standard specifications of core cutting machine DHJ400 are shown below, however the core cutting machine can also be manufactured as requested.

1 Working Platform Height: 900mm
2 Decoiler: Hydraulic expanding
3 Decoiler Diameter Range: 470 ~ 508mm
4 Cutting Sheet Thickness: 0.23 ~ 0.35mm
5 Cutting Sheet Width: 40 ~ 400mm
6 Cutting Sheet Length: 10 ~ 9999mm
7 Feeding Sheet Speed: 180m/min
8 Feeding Tolerance: ±0.05mm/m
9 Height of Burr After Cutting: Less than 0.02mm
10 AC Power: 12.5kw

Automatic Core Cutting Machine Silicon Steel Strip Cutter Making Reactor Core

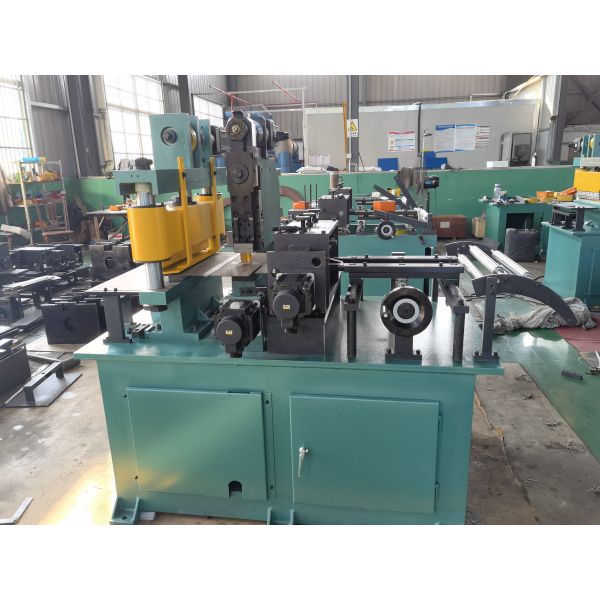

Fig 1: Core cutting machine DHJ400's full view

Automatic Core Cutting Machine Silicon Steel Strip Cutter Making Reactor Core

Fig 2: Core cutting machine DHJ400's decoiler
