PLC Control Automatic Transformer Wire Winder Coil Winding Machine 2.2kw
PLC Control Automatic Transformer Wire Winder Coil Winding Machine 2.2kw
Specifications
Brand Name :
STT
Model Number :
ZPX400
Certification :
CE, etc
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Product name :
transformer coil winding machine
Usage :
winding wire coil
Wire material :
copper or aluminium wire
Wire type :
flat or round wire
Wire guide :
1 pc
Color :
optional
Winding power :
2.2kw
Rotating speed :
0 ~ 200rpm
Description

Factory Direct Sales Automatic Transformer Wire Winder Coil Winding Machine

Description of transformer coil winding machine ZPX400

Transformer coil winding machine ZPX400 is a professional winding wire coil equipment, which can be used to wind transformer coils or other similar products. This kind of transformer coil winding machine is provided with a 2.2kw motor and can be used to wind not only round wire but also flat wire. The transformer coil winding machine is provided with a wire guide for laying wire when winding. The maximum transverse length of the wire guide of the transformer coil winding machine is 400mm. The wire guide is driven by one 750w servo motor, which guarantees the moving precision of the wire guide. With PLC control system and HMI, it is very easy to operate the transformer coil winding machine.

Quick details of transformer coil winding machine ZPX400

  • 2.2kw motor
  • Maximum winding speed 200rpm
  • PLC based control system
  • Winding flat or round wire
  • pneumatic system
  • Foot pedal

Technical parameters of transformer coil winding machine ZPX400

Typical standard specifications of transformer coil winding machine ZPX400 are shown below, however, the transformer coil winding machine can also be manufactured as requested.

Center Height: 900mm
Tailstock: Triangle supporter
Winding Motor Power: 2.2kw
Winding Speed: 0 ~ 200rpm
Speed Regulation: Stepless
Control System: PLC
Flat Wire Maximum: 2.0x8.0mm
Round Wire Diameter: Φ0.3 ~ Φ4.0mm
Maximum Winding Width: 400mm
Maximum Rotation Diameter: 500mm
Minimum Spread Pitch: 0.01mm
Basic Function: 5-digit counting
Counting Turn Range: 0 ~ 9999.9

PLC Control Automatic Transformer Wire Winder Coil Winding Machine 2.2kw

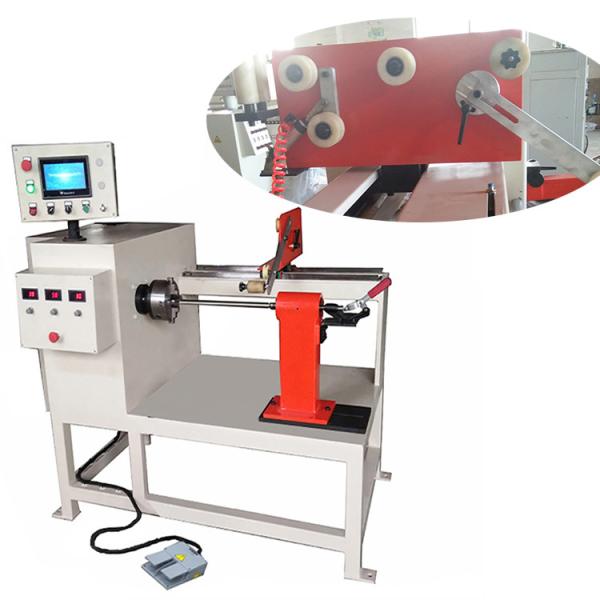

Fig 1: Transformer coil winding machine ZPX400's front view

PLC Control Automatic Transformer Wire Winder Coil Winding Machine 2.2kw

Fig 2: Transformer coil winding machine ZPX400's 4-jaw chuck
