Flat / Round Wire Automatic Transformer Winding Machine With PLC
Flat / Round Wire Automatic Transformer Winding Machine With PLC
Specifications
Brand Name :
STT
Model Number :
ZPX250
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Product name :
automatic coil winding machine
Application :
winding transformer coil
Wire material :
copper or aluminium
Wire type :
flat or round wire
Transverse length :
0 ~ 250mm
Wire guide :
1 pc
Control :
PLC
Warranty :
12 months
Description

Small Coil Máquina de bobinado Automatic Transformer Winding Machine With PLC

Description of automatic coil winding machine ZPX250

Automatic coil winding machine ZPX250 is a special equipment for winding oil immersed transformer wire coils and other similar products. The automatic coil winding machine can wind not only round wire but also flat wire. With 3kw winding motor, the automatic coil winding machine can provide big pulling force for winding copper or aluminium wire. The wire guide is driven by a 750w servo motor, which guarantees the precision of laying wire. The parameters are input through a touch screen. It is very easy to operate the machine.

Main components of automatic coil winding machine ZPX250

  • Main frame
  • Winding unit
  • Wire guide
  • Electronic cabinet
  • Pneumatic system
  • Foot pedal
  • PLC control system
  • Touch screen

Technical parameters of automatic coil winding machine ZPX250

Typical standard specifications of automatic coil winding machine ZPX250 are shown below, however, these can be easily modified as requested.

Center Height: 900mm
Tailstock: Live center
Winding Motor: 3kw
Maximum Winding Speed 200rpm
Speed Regulation: stepless speed regulation
Control System: PLC
Maximum Winding Width: 250mm
Maximum Rotation Diameter: Φ500mm
Minimum spread pitch: 0.01mm
Basic Function: 5-digit counting
Counting Turn Range: 0 ～ 9999.9

Flat / Round Wire Automatic Transformer Winding Machine With PLC

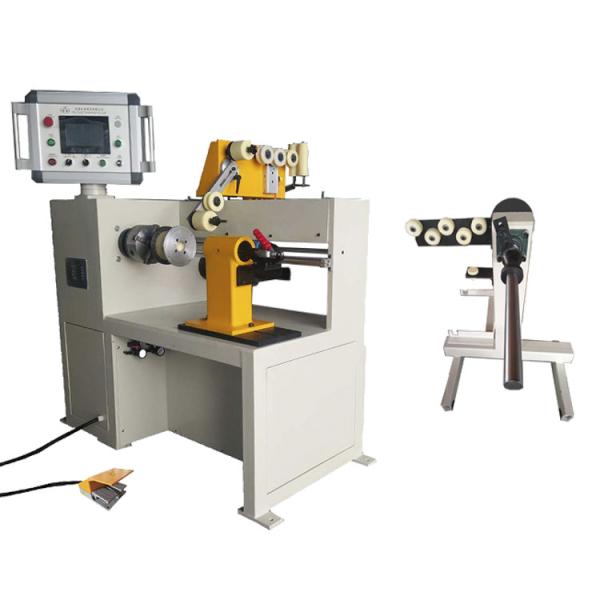

Fig 1: Automatic coil winding machine ZPX250's front view

Flat / Round Wire Automatic Transformer Winding Machine With PLC

Fig 2: Automatic coil winding machine ZPX250's wire guide

Flat / Round Wire Automatic Transformer Winding Machine With PLC

Flat / Round Wire Automatic Transformer Winding Machine With PLCFlat / Round Wire Automatic Transformer Winding Machine With PLCFlat / Round Wire Automatic Transformer Winding Machine With PLCFlat / Round Wire Automatic Transformer Winding Machine With PLC
