PLC Control Automatic Core Cutting Machine Making Reactor Core
PLC Control Automatic Core Cutting Machine Making Reactor Core
Specifications
Brand Name :
STT
Model Number :
DHJ300
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
90 days
Packaging Details :
seaworthy packing
Name :
core cutting machines
Function :
making reactor cores
Cutting width :
30 ~ 300mm
Sheet thickness :
0.23 ~ 0.35mm
Cutting speed :
180m/min
Power :
8kw
Color :
optional
Warranty :
12 months
Description

PLC Control Making Reactor Core Cut To Length Line Automatic Core Cutting Machine

Description of automatic core cutting machine DHJ300

Automatic core cutting machine DHJ300 is mainly for cutting silicon steel sheet to make reactor cores. The core cutting machine can punch holes on the core if needing. The automatic core cutting machine is provided with servo motor to drive cutting and punching action, which guarantees the accuracy of the actions. The automatic core cutting machine features easy operation, high automation and so on.

Quick details of automatic core cutting machine DHJ300

  • Sheet thickness 0.23 ~ 0.35mm
  • Sheet width 40 ~ 300mm
  • Cutting length 10 ~ 9999mm
  • Feeding speed 180m/min
  • Motor power 8kw
  • 12 months warranty

Main parameters of automatic core cutting machine DHJ300

Typical standard specifications of automatic core cutting machine DHJ300 are shown below, however, the core cutting machine can also be manufactured as requested.

1 Working Platform Height: 850mm
2 Decoiler Expanding Mode: Hydraulic
3 Decoiler Expansion Range: 470 ~ 508mm
4 Sheet Thickness: 0.23 ~ 0.35mm
5 Sheet Width: 30 ~ 300mm
6 Cutting Length: 10 ~ 9999mm
7 Feeding Speed: 180m/min
8 Feeding Tolerance: ±0.05mm/m
9 Cutting Burring: Less than 0.02mm
10 Motor Power: 8kw

PLC Control Automatic Core Cutting Machine Making Reactor Core

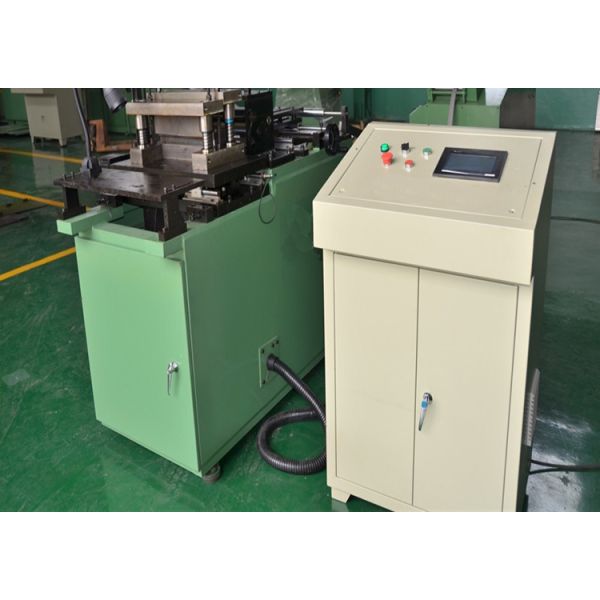

Fig 1: Automatic core cutting machine DHJ300's full view

PLC Control Automatic Core Cutting Machine Making Reactor Core

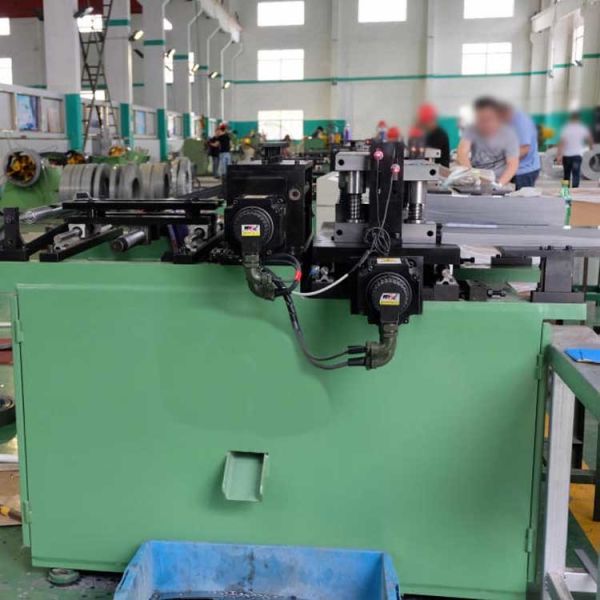

Fig 2: Automatic core cutting machine DHJ300's punching unit

PLC Control Automatic Core Cutting Machine Making Reactor CorePLC Control Automatic Core Cutting Machine Making Reactor Core

PLC Control Automatic Core Cutting Machine Making Reactor CorePLC Control Automatic Core Cutting Machine Making Reactor Core

PLC Control Automatic Core Cutting Machine Making Reactor CorePLC Control Automatic Core Cutting Machine Making Reactor CorePLC Control Automatic Core Cutting Machine Making Reactor Core
