Automatic Reactor Core Cutting Machine Silicon Steel Cut To Length
Automatic Reactor Core Cutting Machine Silicon Steel Cut To Length
Specifications
Brand Name :
STT
Model Number :
DHJ300
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
90 days
Packaging Details :
seaworthy packing
Certification :
CE
Machine name :
core cutting machines
Application :
making transformer cores
Cutting width :
40 ~ 400mm
Sheet thickness :
0.23 ~ 0.35mm
Cutting speed :
180m/min
Power :
8kw
Description

Automatic Reactor Core Cutting Machine Silicon Steel Cut To Length

Quick details of automatic core cutting machine DHJ300

  • Cutting thickness 0.23 ~ 0.35mm
  • Cutting width 40 ~ 300mm
  • Cutting length 10 ~ 9999mm
  • Feeding speed 180m/min
  • Power 8kw
  • One year warranty

Description of automatic core cutting machine DHJ300

Automatic Reactor Core Cutting Machine Silicon Steel Cut To Length DHJ300 is mainly used to cut reactor core, which can punch holes on the core if needing. The cutting and punching are driven by servo motor, which guarantees the accuracy of the operation. The cutter and shearing blade adopt carbide cutter knife with HRC88 ~ 90 hardness, regrinding after more than 5 million cuts. It is very easy to operate the machine through a touch screen.

Main Components of automatic core cutting machine DHJ300

1.Decoiler

2.Main body

3.Feeding unit

4.Hole punching unit

5.Shearing unit

6.Stacking table

7.Control system

Main parameters of automatic core cutting machine DHJ300

Typical standard specifications of DHJ300 are shown below, however the core cutting machine can also be manufactured as requested.

1 Working Platform Height: 850mm
2 Decoiler Expanding Mode: Hydraulic
3 Decoiler Expansion Range: 470 ~ 508mm
4 Cutting Thickness: 0.23 ~ 0.35mm
5 Cutting Width: 30 ~ 300mm
6 Cutting Length: 10 ~ 9999mm
7 Feeding Speed: 180m/min
8 Feeding Tolerance: ±0.05mm/m
9 Height of Burr After Cutting: Less than 0.02mm
10 AC Power: 8kw

Automatic Reactor Core Cutting Machine Silicon Steel Cut To Length

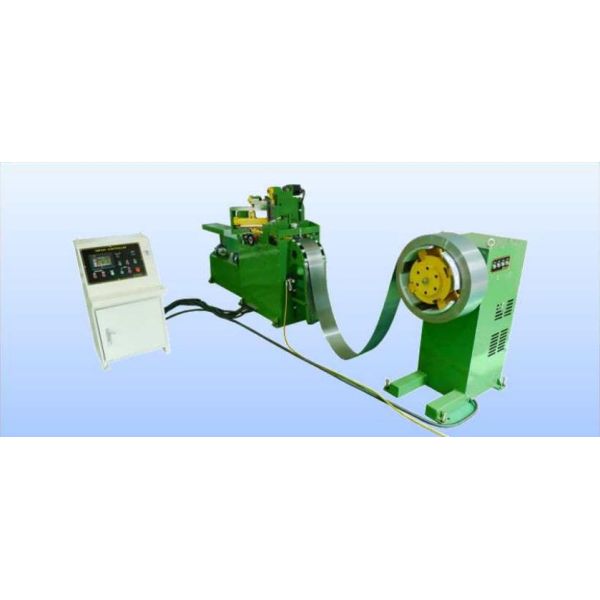

Fig 1: Core cutting machine DHJ300's full view

Automatic Reactor Core Cutting Machine Silicon Steel Cut To Length

Fig 2: Core cutting machine DHJ300's stacking table
