Transformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step Lap
Transformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step Lap
Specifications
Brand Name :
STT
Model Number :
HJX600-LLB
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
90 days
Packaging Details :
seaworthy packing
Name :
core cutting machine
Usage :
cutting silicon steel
Strip thickness :
0.23 - 0.35mm
Strip width :
60 - 600mm
Hole dia :
Φ 10mm～24mm
Feeding speed :
0～200m/min
Color :
optinal
Warranty :
12 months
Description

600mm Width Silicon Strip Cut Step Lap Transformer Core Cutting Machine

Description of transformer core cutting machine HJX600-LLB

Automatic transformer core cutting machine HJX600-LLB is mainly used to cut the silicon steel strip with maximum width 600mm. The transformer core cutting machine, as one kind of professional double shearing and double punching type silicon steel cutting machine, can be used to cut and punch silicon steel strip to make fully inclined seam, half inclined seam and straight seam transformer iron core laminating sheet, which can be used in different sized transformers. Servo motors are adopted in the transformer core cutting machine for cutting, punching and feeding the silicon steel strip. The transformer core cutting machine features high precision, high automation and so on.

Quick details of transformer core cutting machine

  • Expansible decoiler
  • Feeding strip device
  • Servo motor system
  • Punching device
  • Shearing device
  • Outlet platform
  • Depiler and sorting device
  • Catching material device
  • Width adjusting system
  • Pneumatic driven unit


Technical parameters of transformer core cutting machine

Typical standard specifications of transformer core cutting machine HJX600-LLB are shown below, however this can be modified as requested.

Strip Width Tolerance: ≤±0.1mm
Strip Burr Length: ≤0.03mm
Strip S Degree Tolerance: single direction less than 0.1mm in 1000mm
Strip Wave Degree: ≤15mm/1000mm( span more than 1000mm, height less than 15mm)
Strip Thickness: 0.23～‌0.35mm
Strip Width: 60～600mm
Strip Length: 350～9999mm
Hole Punched Dia. Φ 10mm～24mm
Hole Position: can be bidirectional offset along the center line
V-notch Punching Eccentricity ±30mm
Feeding Strip Speed: 0～200m/min
Power: 18Kw

Transformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step Lap

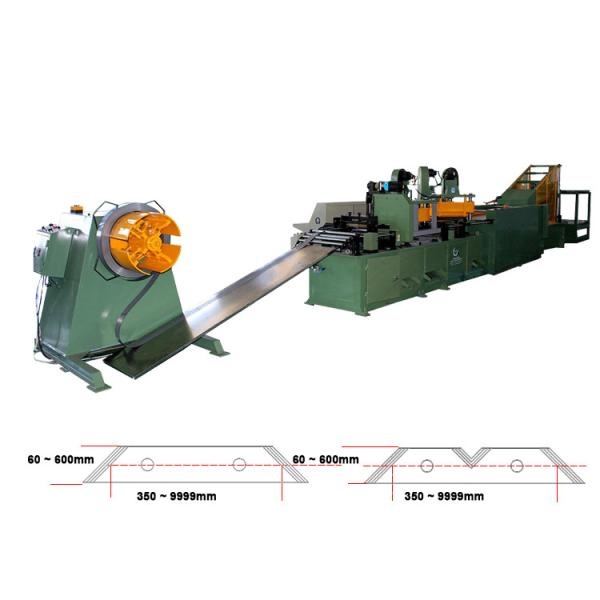

Fig 1: Transformer core cutting machine HJX600-LLB's full view

Transformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step Lap

Fig 2: Transformer core cutting machine HJX600-LLB's side view

Transformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step LapTransformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step Lap

Transformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step LapTransformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step LapTransformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step LapTransformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step LapTransformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step LapTransformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step LapTransformer Automatic Core Cutter 600mm Width Silicon Strip Cut Step Lap
