Two Wire Guides Automatic Coil Winding Machine Copper Wire Winder
Two Wire Guides Automatic Coil Winding Machine Copper Wire Winder
Two Wire Guides Automatic Coil Winding Machine Copper Wire Winder
Two Wire Guides Automatic Coil Winding Machine Copper Wire Winder
Specifications
Brand Name :
STT
Model Number :
ZPX500-2
Certification :
CE, etc
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Name :
automatic coil winding machine
Application :
making transformer coil
Motor power :
7.5kw
Winding speed :
0- 160rpm
Conductor :
cu or al wire
Wire type :
flat or round wire
Control system :
PLC
Wire guide :
driven by servo motor
Description

Factory Direct Sales Two Wire Guides Automatic Coil Winding Machine Copper Wire Winder

Description of automatic coil winding machine ZPX500-2

Factory direct sales two wire guides automatic coil winding machine copper wire winder ZPX500-2 is one kind of high efficiency coil winding equipment. The kind of automatic coil winding machine can wind two coils at once. The automatic coil winding machine adopts servo motor driven wire guides, which guarantees the wire laying precision. With big enough torque, the automatic coil winding machine can be used to making big sized coil. The automatic coil winding machine can store more than fifty different programs to meet different needs.

Main Features of automatic coil winding machine ZPX500-2

The automatic coil winding machine ZPX500-2 has strong pulling force, which comes from a 7.5kw motor. Servo motor driven wire guides makes the wire laying precisely. Moreover, the machine features slow starting, smooth running, full function, high automation, etc.

Main Parameters of automatic coil winding machine ZPX500-2

Typical standard specifications of automatic coil winding machine ZPX500-2 are shown below, however the coil winding machine can also be manufactured as requested.

Center Height From Floor: 900mm
Finished Coil Number Max: 2 pcs
Each Coil Height Max.: 500mm
Rotating Shaft Length: 1200mm
Flat Wire Size: 5x12mm
Round Wire Diameter: 0.3-5.0mm
Max. Rotating OD.: 800mm
Max Winding Speed: 160RPM
Speed Regulation: stepless speed regulation
Winding Power: 7.5KW
Spread Pitch min: 0.01mm
Counting Mode: 5-digit counting
Max. Turns Number Preset: 9999.9
Counting Range: 0 - 9999.9

Two Wire Guides Automatic Coil Winding Machine Copper Wire Winder

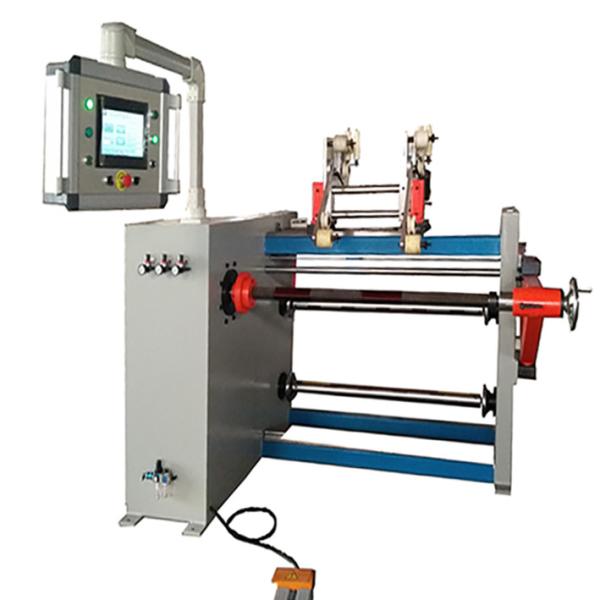

Fig 1: Automatic coil winding machine ZPX500-2's front view

Two Wire Guides Automatic Coil Winding Machine Copper Wire Winder

Fig 2: Automatic coil winding machine ZPX500-2's wire guide
