Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw
Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw
Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw
Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw
Specifications
Brand Name :
STT
Model Number :
FZT-3T
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Name :
transformer core stacking table
Usage :
stacking and tilting iron core
Platform size :
1600x1400mm
Platform height :
1000mm
Power :
2.2kw
Tilting speed :
90 degree per minute
Controller :
hand held controller
Warranty period :
12 months
Description

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table

Description of transformer core stacking table FZT-3T

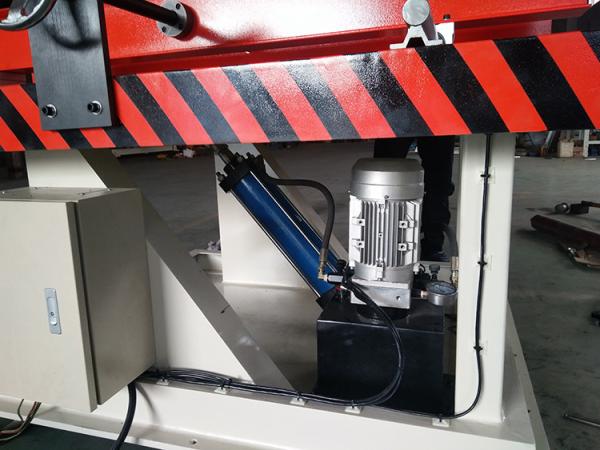

Transformer core stacking table FZT-3T is widely used to laminate silicon iron sheet to make transformer core. The transformer core stacking table can stack and tilt up the stacked core to 90°, which makes it easy to take the stacked core from the platform. With a hydraulic station providing a strong force, the transformer core stacking table can tilt the stacked core with maximum weight 3000kg. The tilting speed of the stacking table can be adjusted through a hand held controller. It is very easy to operate the stacking table.

Quick details of transformer core stacking table

  • Working platform size:1600x1400mm
  • Table height from floor:1000mm
  • Motor power: 1.5kw
  • Color: as requested

Main Parameters of transformer core stacking table

Typical standard specifications of transformer core stacking table FZT-3T are shown below, however these can be easily modified as requested.

No. Item FZT-3T
1 Working Platform Size(LxW): 1600×1400mm
2 Platform Height from Floor: 1000mm
3 Maximum Stacked Core Weight: 3000Kg
4 Maximum Stacked Core Thickness: 900mm
5 Tilting Power: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Motor Power: 2.2KW
9 Warranty: 12 months

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw

Fig 1: Transformer core stacking table FZT-3T's full view

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw

Fig 2: Transformer core stacking table FZT-3T's vertical view

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kwLaminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kwLaminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kwLaminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kwLaminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw
