PLC Control 300mm Width Strip Winder Cantilever Transformer Foil Winding Machine

Description of transformer foil winding machine XB-BRJ300-2

Cantilever transformer foil winding machine XB-BRJ300-2 is provided with two foil decoilers, which makes the winding machine can wind one or two layers of strip conductor with maximum width 300mm. The transformer foil winding machine can also wind two layers of insulation paper. The winding machine is simple and ease to be operated.

Quick details of transformer foil winding machine XB-BRJ300-2

  • Two foil decoilers
  • Two insulation decoilers
  • Maximum foil width 300mm
  • Motor power 5.5kw
  • Control system based on PLC
  • Winding speed 35 rpm

Technical Parameters of transformer foil winding machine XB-BRJ300-2

Typical standard specifications of transformer foil winding machine XB-BRJ300-2 are shown below, however these can be modified as requested.

Maximum Strip Width: 300mm
Maximum Axial Length ( incl. lead wire ): 450mm
Finished Coil OD. : 600mm
Coil Shape: Round, Oval and Rectangle etc.
Conductor Material: Copper or aluminum strip
Cu Foil Thickness: 0.2-2.0mm
Al Foil Thickness: 0.3-3.0mm
Foil Material ID.: ≤ 500mm
Foil Material OD.: ≤ 1000mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Expanding Range: 420-520mm
Max Coil Weight: 750kg
Cleaning Unit : pneumatic
Insulation Decoiler Number: 2 pc
Insulation Paper Coil OD.: ≤ 400mm
Insulation Paper Coil ID.: 76mm
Insulation Decoiler Width 350mm
Insulation Decoiler: Expandable (pneumatic open/close action)
Rotating Speed: 0～35 RPM
Motor Power: 5.5kw
Control System: PLC
Interface: Touch screen
Counting Turn Range: 0 - 9999.9

Power Transformer Winding Machine 300mm Strip Winder Cantilever

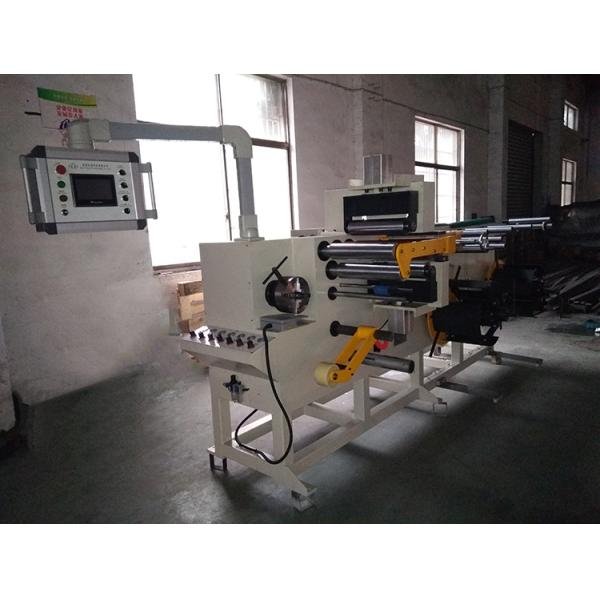

Fig 1: Transformer foil winding machine XB-BRJ300-2's full view
