Automatic HV Winder Transformer Coil Winding Machine
Automatic HV Winder Transformer Coil Winding Machine
Specifications
Brand Name :
STT
Model Number :
ZPX600
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Product name :
transformer coil winding machine
Usage :
winding transformer coil
Max winding width :
600mm
Center height :
900mm
Motor power :
4kw
Rotating speed :
0 ~ 200rpm
Wire guide :
servo driven
Warranty :
12 months
Description

Automatic HV Winder Transformer Coil Winding Machine

Introduction of transformer coil winding machine ZPX600

Transformer coil winding machine ZPX600 is one kind of special copper or aluminium wire winders. The transformer coil winding machine is mainly used to wind wire coil and this kind of coil can be used to make transformer or other similar products. With a 4kw winding motor, the transformer coil winding machine has a enough torque to wind different size of wire.The transformer coil winding machine is provided with a servo motor to drive the wire guide, which guarantees the precision of the wire guide moving. With PLC, the transformer coil winding machine can be operated easily.

Main features of transformer coil winding machine ZPX600

  • programmable
  • easy operation
  • slow starting
  • smooth running
  • strong pulling force
  • high reliability
  • high accuracy
  • full functions

Main parameters of transformer coil winding machine ZPX600

The standard specification of transformer coil winding machine ZPX600 are as following, however, the coil winding machine can also be manufactured as requested.

Winding Shaft Center Height From Floor: 900mm
Winding Shaft Size: 40x40x900mm
Max Winding Width: 600mm.
Winding Motor Power: 4kw
Max. Winding Speed: 200rpm
Speed Regulation: stepless speed regulation
Round Wire: Φ0.3 ~ Φ3.0mm
Max. Rotating Diameter: Φ600mm
Max. Loading Capacity: 500kg
Counting Mode: 5-digit counting
Counting Range: 0 - 9999.9

Automatic HV Winder Transformer Coil Winding Machine

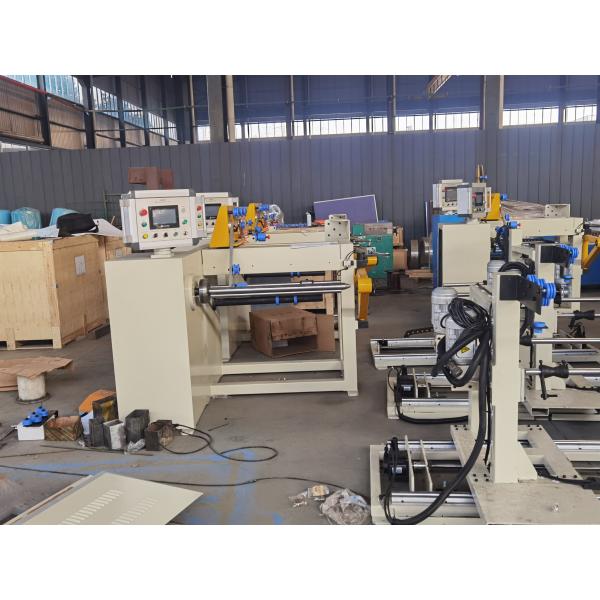

Fig 1: Transformer coil winding machine ZPX600's full view

Automatic HV Winder Transformer Coil Winding Machine

Fig 2: Transformer coil winding machine ZPX600's winding guide

Automatic HV Winder Transformer Coil Winding MachineAutomatic HV Winder Transformer Coil Winding MachineAutomatic HV Winder Transformer Coil Winding MachineAutomatic HV Winder Transformer Coil Winding MachineAutomatic HV Winder Transformer Coil Winding MachineAutomatic HV Winder Transformer Coil Winding MachineAutomatic HV Winder Transformer Coil Winding MachineAutomatic HV Winder Transformer Coil Winding MachineAutomatic HV Winder Transformer Coil Winding Machine
