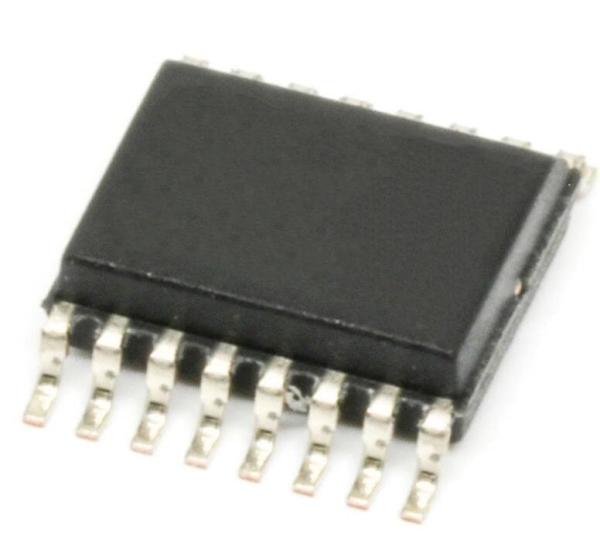

ADG5412BRUZ-REEL7 Integrated Circuit Chip Semiconductors Analog Power Switch ICs electronic components TSSOP ADG5412
ADG5412BRUZ-REEL7 Integrated Circuit Chip Semiconductors Analog Power Switch ICs electronic components TSSOP ADG5412
ADG5412BRUZ-REEL7 Integrated Circuit Chip Semiconductors Analog Power Switch ICs electronic components TSSOP ADG5412
ADG5412BRUZ-REEL7 Integrated Circuit Chip Semiconductors Analog Power Switch ICs electronic components TSSOP ADG5412
Specifications
Brand Name :
original
Model Number :
ADG5412BRUZ-REEL7
Certification :
ISO9001:2015standard
Place of Origin :
original
MOQ :
10pcs
Price :
Contact us to win best offer
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
10000pcs/months
Delivery Time :
1-3 workdays
Packaging Details :
Standard
Mounting Style :
SMD/SMT
Number of Channels :
4 Channel
Height :
1.05 mm
Length :
5 mm
Description
FEATURES

1.Latch-up proof

2.8 kV human body model (HBM) ESD rating

3.Low on resistance (＜10Ω)

4.±9 V to ±22 V dual-supply operation

5.9 V to 40 V single-supply operation

6.48 V supply maximum ratings

7.Fully specified at ±15 V, ±20 V, +12 V, and +36 V

8.VSS to VDD analog signal range
APPLICATIONS

1. Relay replacement

2. Automatic test equipment

3. Data acquisition

4. Instrumentation

5. Avionics

6. Audio and video switching

7. Communication systems
PRODUCT HIGHLIGHTS

1.Trench isolation guards against latch-up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.

2.Low RON.

3.Dual-supply operation. For applications where the analog signal is bipolar, the ADG5412/ADG5413 can be operated from dual supplies up to ±22 V.

4.Single-supply operation. For applications where the analog signal is unipolar, the ADG5412/ADG5413 can be operated from a single rail power supply up to 40 V.

5.3 V logic compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V.

6.No VL logic power supply required
