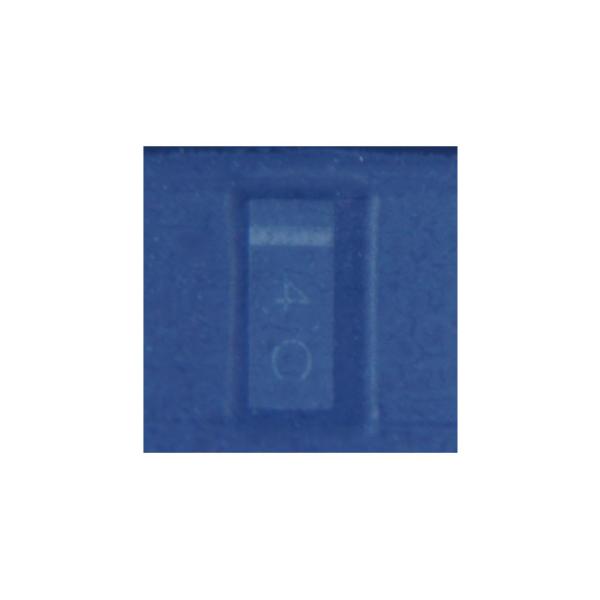

SESD1004Q4UG-0020-090 ESD Suppression TVS Diode SMD 4-CH STD 9V 20kV SESD
SESD1004Q4UG-0020-090 ESD Suppression TVS Diode SMD 4-CH STD 9V 20kV SESD
Specifications
Brand Name :
original
Model Number :
SESD1004Q4UG-0020-090
Certification :
ISO9001:2015standard
Place of Origin :
original
MOQ :
10pcs
Price :
Pls contact us
Payment Terms :
T/T, Western Union，PayPal
Supply Ability :
10000pcs/months
Delivery Time :
1-3 workdays
Packaging Details :
Standard
Packaging :
Reel
Mounting Style :
SMD/SMT
Package / Case :
1004 (2510 metric)
Breakdown Voltage :
9 V
Operating Temperature :
-55℃~+175℃
FPQ :
25000
Description

SESD1004Q4UG-0020-090 ESD Suppressors / TVS Diodes 4-CH STD 9V Uni - Di .20pF 20kV SESD

FEATURES

• 0.20pF TYP capacitance

• ESD, IEC 61000-4-2, ±20kV contact, ±20kV air

• Low clamping voltage of 9.2V @ IPP=2.0A (tP=8/20μs)

• Low profile DFN array packages

• Facilitates excellent signal integrity

• AEC-Q101 qualified

• Moisture Sensitivity Level(MSL-1)

• ELV Compliant

• RoHS Compliant and Lead Free

• PPAP capable

Description

The SESD series Ultra Low Capacitance Diode Arrays provides signal integrity-preserving unidirectional ESD protection for the world’s most challenging high speed serial interfaces. Compelling packaging options including the standard 1004 DFN 2.5 mm x 1.0 mm layout, the board space-friendly 0802 DFN and 1103 DFN minimize trace layout complexity, and save significant PCB space. The 0402 DFN provides the most flexibility for PCB layout purposes. This series is rated in excess of 20kV contact ESD protection (IEC 61000-4-2) while maintaining extremely low leakage and dynamic resistance, and is offered in the industry’s most progressive and popular footprints. The SESD seriees sets higher standards for signal integrity and usability.


ESD Suppressors / TVS Diodes
RoHS: Details
TVS Diodes
Unidirectional
7 V
4 Channel
SMD/SMT
1004 (2510 metric)
9 V
9.2 V
-
20 kV
20 kV
0.2 pF
2 A
- 55 C
+ 125 C
SESD
AEC-Q101
Reel
Cut Tape
MouseReel
Brand: Original iin stock
Pd - Power Dissipation: -
Factory Pack Quantity: 25000
Subcategory: TVS Diodes / ESD Suppression Diodes
Tradename: SPA
Vf - Forward Voltage: -
Part # Aliases: RF2524-000 RF3077-000
Unit Weight: 0.006734 oz
