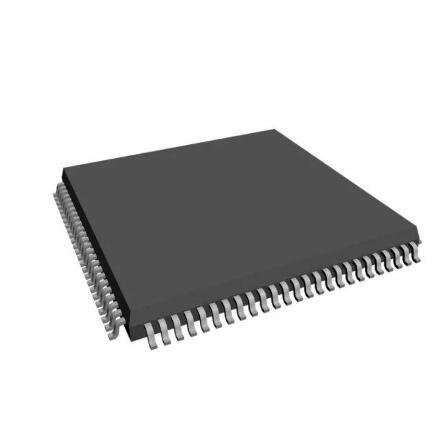

5M160ZT100C5N Programmable Logic ICs 16 LABs 79 I / O SMD SMT Mounting
5M160ZT100C5N Programmable Logic ICs 16 LABs 79 I / O SMD SMT Mounting
Specifications
Brand Name :
original
Model Number :
5M160ZT100C5N
Certification :
ISO9001:2015standard
Place of Origin :
original
MOQ :
10pcs
Price :
Contact us to win best offer
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
10000pcs/months
Delivery Time :
1-3 workdays
Packaging Details :
Standard
Propagation Delay :
7.5 ns
Total Memory :
8192 bit
Memory Type :
Flash
LABs :
16
Description

5M160ZT100C5N Hot Selling 160 Logic Elements 1.8 V 79 I/O complex programmable logic devices 25 uA Current

Series: 5M160Z
Mounting Style: SMD/SMT
Package / Case: TQFP-100
Operating Supply Voltage: 1.8 V
Number of Macrocells: 128
Number of I/Os: 79 I/O
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 85 C
Maximum Operating Frequency: 152 MHz
Propagation Delay - Max: 7.5 ns
Packaging: Tray
Memory Type: Flash
Moisture Sensitive: Yes
Number of Logic Array Blocks - LABs: 16
Number of Logic Elements: 160
Operating Supply Current: 25 uA
Product Type: CPLD - Complex Programmable Logic Devices
Factory Pack Quantity: 90
Subcategory: Programmable Logic ICs
Supply Voltage - Max: 1.89 V
Supply Voltage - Min: 1.71 V
Total Memory: 8192 bit
Part # Aliases: 969128
Unit Weight: 0.705479 oz

Feature
■ Low-cost, low-power, and non-volatile CPLD architecture
■ Instant-on (0.5 ms or less) configuration time
■ Standby current as low as 25 µA and fast power-down/reset operation
■ Fast propagation delay and clock-to-output times
■ Internal oscillator
■ Emulated RSDS output support with a data rate of up to 200 Mbps
■ Emulated LVDS output support with a data rate of up to 304 Mbps
■ Four global clocks with two clocks available per logic array block (LAB)
■ User flash memory block up to 8 Kbits for non-volatile storage with up to 1000 read/write cycles
■ Single 1.8-V external supply for device core
■ MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, 1.5-V, and 1.2-V logic levels
■ Bus-friendly architecture including programmable slew rate, drive strength, bus-hold, and programmable pull-up resistors
■ Schmitt triggers enabling noise tolerant inputs (programmable per pin)
■ I/Os are fully compliant with the PCI-SIG® PCI Local Bus Specification, revision 2.2 for 3.3-V operation
■ Hot-socket compliant
■ Built-in JTAG BST circuitry compliant with IEEE Std. 1149.1-1990
5M160ZT100C5N Programmable Logic ICs 16 LABs 79 I / O SMD SMT Mounting
