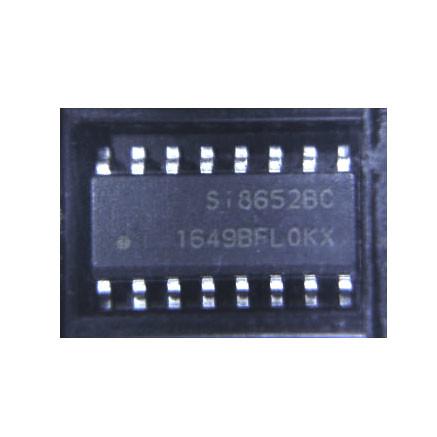

SI8652BC B IS1R Digital Isolators 3.75 KV 3 Forward 2 Reverse Isolator Electronic Components
SI8652BC B IS1R Digital Isolators 3.75 KV 3 Forward 2 Reverse Isolator Electronic Components
Specifications
Brand Name :
Original
Model Number :
SI8652BC-B-IS1R
Certification :
ISO9001:2015standard
Place of Origin :
Original
MOQ :
10pcs
Price :
3.00-4.00 USD/PCS
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000 pcs/ months
Delivery Time :
2-3 working days
Packaging Details :
Standard
Product Category :
Digital Isolators
Mounting Style :
SMD/SMT
Package / Case: :
SOIC-Narrow-16
Isolation Type: :
Capacitive Coupling
Packaging :
Reel
FPQ :
2500
Description

SI8652BC-B-IS1R Digital Isolators 3.75 kV 3 forward 2 reverse 5-channel isolator Electronic Components

Low Power Five-Channel Digital Isolator

Features

• High-speed operation

• DC to 150 Mbps

• No start-up initialization required

• Wide Operating Supply Voltage

• 2.5–5.5 V

• Up to 5000 VRMS isolation

• 60-year life at rated working voltage

• High electromagnetic immunity

• Ultra low power (typical)

• 5 V Operation

• 1.6 mA per channel at 1 Mbps

• 5.5 mA per channel at 100 Mbps

• 2.5 V Operation

• 1.5 mA per channel at 1 Mbps

• 3.5 mA per channel at 100 Mbps • Tri-state outputs with ENABLE • Schmitt trigger inputs

• Selectable fail-safe mode • Default high or low output (ordering option)

• Precise timing (typical)

• 10 ns propagation delay

• 1.5 ns pulse width distortion

• 0.5 ns channel-channel skew

• 2 ns propagation delay skew

• 5 ns minimum pulse width

• Transient Immunity 50 kV/µs

• AEC-Q100 qualification

Digital Isolators
RoHS: Details
Si865x
SMD/SMT
SOIC-Narrow-16
5 Channel
Unidirectional
150 Mb/s
3750 Vrms
Capacitive Coupling
AEC-Q100
Reel
Cut Tape
Moisture Sensitive: Yes
Product Type: Digital Isolators
Factory Pack Quantity: 2500
Subcategory: Interface ICs
Unit Weight: 547.510 mg

SI8652BC B IS1R Digital Isolators 3.75 KV 3 Forward 2 Reverse Isolator Electronic Components
