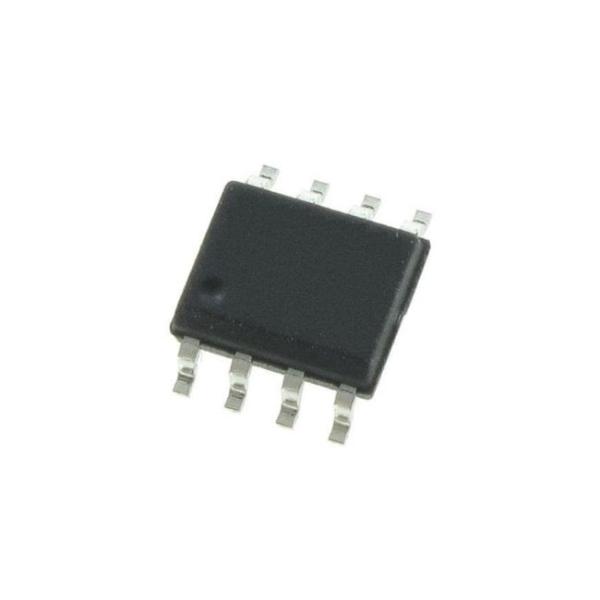

VIPER12AS-E AC DC Converters IC PMIC 700V 0.36A SMPS SOIC-8
VIPER12AS-E AC DC Converters IC PMIC 700V 0.36A SMPS SOIC-8
Specifications
Brand Name :
original
Model Number :
VIPER12AS-E
Certification :
ISO9001:2015standard
Place of Origin :
original
MOQ :
10pcs
Price :
Pls contact us
Payment Terms :
T/T, Western Union,PalPay
Supply Ability :
10000pcs/months
Delivery Time :
1-3 workdays
Packaging Details :
Standard
Mounting Style :
SMD/SMT
Package / Case :
SOIC-8
Packaging :
Tube
FPQ :
2000
Operating Supply Current :
4.5 mA
Switching Frequency :
60 kHz
Description

VIPER12AS-E Original SMD / SMT AC / DC Converters 700V 0.36A SMPS

Features

■ Fixed 60 kHz switching frequency

■ 9 V to 38 V wide range VDD voltage

■ Current mode control

■ Auxiliary undervoltage lockout with hysteresis

■ High voltage start-up current source

■ Overtemperature, overcurrent and overvoltage protection with auto-restart

■ Typical power capability – European (195 - 265 Vac) 8 W for SO-8, 13 W for DIP-8 – European (85 - 265 Vac) 5 W for SO-8, 8 W for DIP-8

Description

The VIPER12A combines a dedicated current mode PWM controller with a high voltage power MOSFET on the same silicon chip. Typical applications cover off line power supplies for battery charger adapters, standby power supplies for TV or monitors, auxiliary supplies for motor control, etc.

The internal control circuit offers the following benefits: Large input voltage range on the VDD pin accommodates changes in auxiliary supply voltage (This feature is well adapted to battery charger adapter configurations), automatic burst mode in low load condition and overvoltage protection in HICCUP mode.

AC/DC Converters
RoHS: Details
SMD/SMT
SOIC-8
730 V
5 W
9 V
38 V
60 kHz
16 %
4.5 mA
- 40 C
+ 150 C
VIPER12A-E
Tube
Brand: Original in stock
Moisture Sensitive: Yes
Number of Outputs: 1 Output
Product Type: AC/DC Converters
Factory Pack Quantity: 2000
Subcategory: PMIC - Power Management ICs
Tradename: VIPerPlus
Type: Off Line Converter
Unit Weight: 0.007055 oz
