PDAs Pocket PCs TPS62410DRCR Power Management ICs 800mA
PDAs Pocket PCs TPS62410DRCR Power Management ICs 800mA
Specifications
Brand Name :
original
Model Number :
TPS62410DRCR
Certification :
ISO9001:2015standard
Place of Origin :
original
MOQ :
10pcs
Price :
0.6-0.80USD/pc
Payment Terms :
T/T,Western Union，PayPay
Supply Ability :
1000pcs/months
Delivery Time :
2-3 workdays
Packaging Details :
Tube，Reel，Tray
Topology :
Buck
Quiescent Current :
266uA
Operating Supply Current :
32 uA
Type :
DC/DC Converter
Input Voltage :
2.5 V to 6 V
Load Regulation :
0.5 % / A
Description

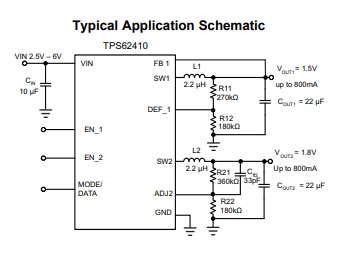

TPS62410DRCR Switching Voltage Regulators Power Management ICs

Features 3 Description
High Efficiency up to 95%
down DC–DC converter. It provides two independent
• VIN Range from 2.5 V to 6 V
• 2.25-MHz Fixed Frequency Operation
• Output Current 2 x 800 mA
• Adjustable Output Voltage from 0.6 V to VIN
• Optional EasyScale One-Pin Serial Interface for Dynamic Output Voltage Adjustment
• Power-Save Mode at Light Load Currents
• 180° Out of Phase Operation
• Output Voltage Accuracy in PWM Mode ±1%
• Typical 32-μA Quiescent Current for Both Converters
• 100% Duty Cycle for Lowest Dropout
• Available in a 10-Pin VSON (3 mm × 3 mm)

Applications applications
• Cell Phones, Smartphones
• PDAs, Pocket PCs
• OMAP and Low-Power DSP Supply
• Portable Media Players
• Digital Cameras

Product Attribute Attribute Value
Product Category: Switching Voltage Regulators
Mounting Style: SMD/SMT
Package/Case: VSON-10
Topology: Buck
Output Voltage: 600 mV to 6 V
Output Current: 800mA
Number of Outputs: 2 Output
Input Voltage, Min: 2.5 V
Input Voltage, Max: 6 V
Quiescent Current: 266 uA
Switching Frequency: 2.25 MHz
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Series: TPS62410
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Input Voltage: 2.5 V to 6 V
Load Regulation: 0.5 % / A
Moisture Sensitive: Yes
Operating Supply Current: 32 uA
Product: Voltage Regulators
Product Type: Switching Voltage Regulators
Factory Pack Quantity: 3000
Subcategory: PMIC - Power Management ICs
Type: DC/DC Converter
Unit Weight: 26.100 mg

Q: Can you accept small order?
A: Yes,small order is available .Please contact with us.

Q: Do you provide samples,it is free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.

Q: Can we get a lower price? Any Discount?
A: Yes,price is not a problem,everything could be negotiated based on the quantity.

Q: Do you provide the BOM Kitting service? Can I send my BOM to you?

A: Yes,Please feel free to contact us and send us your BOM and then we'll quote for you.

Q: What is your lead time?
A: Most of the products can be sent out within 3 days after payment.

Q: How can I place order?
A: You can contact us by email about your order details, or place order on alibaba.

Q: How can I pay ?
A: After you confirm our PI,we will send the order with the payment link to your email,there are several payment way(include TT/VISA/Online bank/credit card,etc. ),you can choose the one you like.
