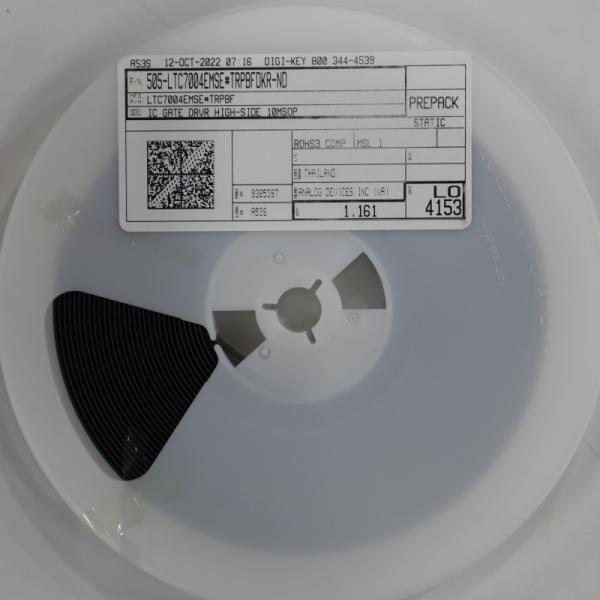

LTC7004EMSE#TRPBF PMIC Power Management ICs MX30LF1GE8AB-XKI PCA9617ADP MOSFET Gate Door Drivers

FEATURES

Wide Operating VIN: Up to 60V

1Ω Pull-Down, 2.2Ω Pull-Up for Fast Turn-On and Turn-Off Times with 35ns Propagation Delays

Internal Charge Pump for 100% Duty Cycle

Adjustable Turn-On Slew Rate

Gate Driver Supply from 3.5V to 15V

Adjustable VIN Overvoltage Lockout

Adjustable Driver Supply VCC Undervoltage Lockout

CMOS Compatible Input

Thermally Enhanced, High Voltage Capable 10-Lead MSOP Package

AEC-Q100 Qualified for Automotive Applications

APPLICATIONS

Static Switch Driver

Load and Supply Switch Driver

Electronic Valve Driver

High Frequency High Side Gate Driver

DESCRIPTION

The LTC®7004 is a fast high side N-channel MOSFET gate driver that operates from input voltages up to 60V. It contains an internal charge pump that fully enhances an external N-channel MOSFET switch, allowing it to remain on indefinitely.

Its powerful driver can easily drive large gate capacitances with very short transition times, making it well suited for both high frequency switching applications or static switch applications that require a fast turn-on and/or turn-off time.

The LTC7004 is available in the thermally-enhanced 10-lead MSOP package.

Related stock models

Company Advantages

1. We can offer products according to customer's BOM list. One stop purchase.

2. All kinds of chips, various types and complete brands.

3.More than 15years for sales original IC parts.

4. Comprehensive customer service: from customer consultation to after sales service.

5. Walton can offer sample for free , but client have to pay shipping cost. Contact us if needed.
