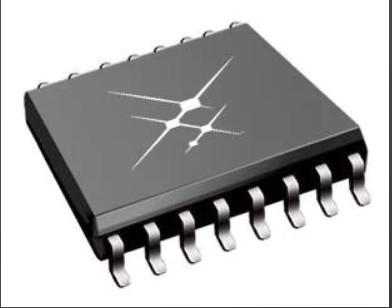

SI8233BB-D-IS Isolated Gate Driver IC 2.5 KV 8 V UVLO HS / LS Power Management ICs
SI8233BB-D-IS Isolated Gate Driver IC 2.5 KV 8 V UVLO HS / LS Power Management ICs
SI8233BB-D-IS Isolated Gate Driver IC 2.5 KV 8 V UVLO HS / LS Power Management ICs
SI8233BB-D-IS Isolated Gate Driver IC 2.5 KV 8 V UVLO HS / LS Power Management ICs
Specifications
Brand Name :
Original
Model Number :
SI8233BB-D-IS
Certification :
ISO9001:2015standard
Place of Origin :
Original
MOQ :
10pcs
Price :
$2.79-5.34/pcs
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
10000pcs/months
Delivery Time :
1-3workdays
Packaging Details :
Standard
Package / Case :
SOIC-16
Packaging :
Tube
Isolation Voltage :
2500 Vrms
D/C :
21+
Mounting Style :
SMD/SMT
Unit Weight :
0.017990 oz
Description

SI8233BB-D-IS Gate Drivers 2.5 kV 8 V UVLO HS/LS isolated gate driver Power Management ICs

Description:

The Si823x isolated driver family combines two independent, isolated drivers into a single package.

The Si8230/1/3/4 are high-side/low-side drivers, while the Si8232/5/7/8 are dual drivers.

Versions with peak output currents of 0.5 A (Si8230/1/2/7) and 4.0 A (Si8233/4/5/8) are available.

All drivers operate with a maximum supply voltage of 24 V.

Safety Regulatory Approvals

• UL 1577 recognized • Up to 5000 VRMS for 1 minute

• CSA component notice 5A approval • IEC 60950-1, 62368-1, 60601-1 (reinforced insulation)

• VDE certification conformity • VDE 0884-10

• EN60950-1 (reinforced insulation) • CQC certification approval • GB4943.1

Automotive Applications

• On-board chargers

• Battery management systems

• Charging stations

• Traction inverters

• Hybrid Electric Vehicles

• Battery Electric Vehicles

Specification:

Product Category: Gate Drivers
Product: Isolated Gate Drivers
Type: High-Side, Low-Side
Mounting Style: SMD/SMT
Package / Case: SOIC-16
Number of Drivers: 2 Driver
Number of Outputs: 2 Output
Output Current: 4 A
Supply Voltage - Min: 4.5 V
Supply Voltage - Max: 5.5 V
Rise Time: 12 ns
Fall Time: 12 ns
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Series: Si823x
Qualification: AEC-Q100
Packaging: Tube
Isolation Voltage: 2500 Vrms
Maximum Turn-Off Delay Time: 60 ns
Maximum Turn-On Delay Time: 60 ns
Moisture Sensitive: Yes
Operating Supply Current: 3.5 mA
Operating Supply Voltage: 9.4 V to 24 V
Pd - Power Dissipation: 1.2 W
Product Type: Gate Drivers
Propagation Delay - Max: 60 ns, 60 ns
Shutdown: Yes
Factory Pack Quantity: 46
Subcategory: PMIC - Power Management ICs
Technology: Si
Unit Weight: 0.017990 oz
