2.5km/H Electrical Cable Pulling Equipment , 4800kg Hydraulic Cable Puller
2.5km/H Electrical Cable Pulling Equipment , 4800kg Hydraulic Cable Puller
Specifications
Brand Name :
GALAXY
Model Number :
GS120
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
30 days
Packaging Details :
Bulk
Max intermittent pull :
120KN
Max continuous pull :
100KN
Speed at max pull :
2.5km/h
Pull at max speed :
50KN
Bull-wheel diameter :
600mm
Groove number :
10
Max diameter of rope reel :
1400mm
Overall dimension :
4000×2300×2300mm
Total weight :
4800kg
Type :
Hydraulic Puller
Description

Stringing Equipment GS120 Hydraulic Puller Machine Max Continuous Pulling force 120KN

This machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands. And it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

Quick Detail

♦ Model: GS120

♦ Overall dimension: 4000×2300×2300mm

Configuration

♦ Hydraulic front stabilizer

♦ Hydraulic oil cooling system

♦ Control instruments for hydraulic systems and diesel engines

Performance parameter

Model GS40 GS60 GS90 GS120 GS150 GS180 GS220 GS280 GS380
Max intermittent pull KN 40 60 90 120 150 180 220 280 380
Max continuous pull KN 30 50 80 100 120 150 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5 5 5 5
Pull at max speed KN 20 25 40 50 60 75 90 120 170
Diese kw(hp) 77(103) 77(103) 118(158) 129(173) 129(173) 239(320) 239(320) 298(400) 440(590)
Cooling system Water Water Water Water Water Water Water Water Water
Electrical system V 24 24 24 24 24 24 24 24 24
Bull-wheel diamete mm 400 450 540 600 600 700 760 960 960
Groove number 7 7 8 10 10 10 10 11 11
Max rope diameter mm 16 18 21 24 24 27 30 38 38
Max diameter of rope reel mm 1200 1400 1400 1400 1600 1400 1600 1600 1900
Total weight kg 3000 3500 4680 4800 5500 6800 6800 12600 13600

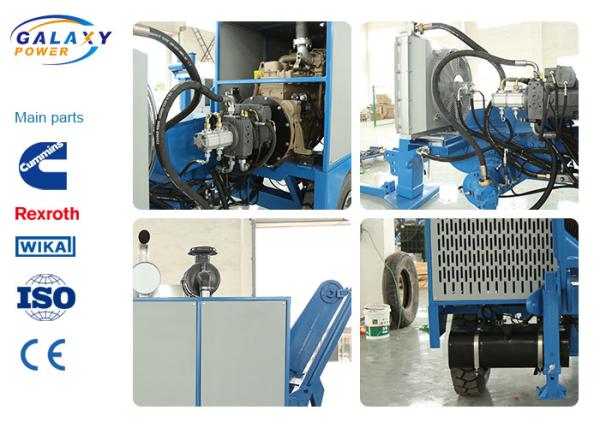

Main Configuration
Engine Cummins
Hydraulic meter German
Operating handle German Rexroth
Main moter speed reducer
Main pump
Tail bracket hoisting motor American Eton
Additional Devices Lighting system for the trailer
Extra shaft
Swivel guide rope roller
Hydraulic rope clamp for reel change
Trailer for towing at max speed of 30 km/h
Digital speed and meter counter (extra charge)
